Onpin OP-2C3823 Air Screwdriver - 6mm Capacity, High Torque Clutch, 17Nm, 2300RPM
The Onpin OP-2C3823 air screwdriver is a heavy-duty industrial fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It delivers a free speed of 2300 rpm, maximum torque of 17 Nm (12.5 ft-lb), and an air consumption of 240 l/min (8.5 cfm). Featuring an automatic clutch disengagement mechanism at preset torque to protect workpieces, rear exhaust design to reduce noise (82 dB(A)), and screwdriver-adjusted torque control to prevent unauthorized tampering, it ensures high efficiency for production lines.
- OP-2C3823
- OP-2C3823 Series
- onpin op-2c3823 air screwdriver
- high speed pneumatic screwdriver 2300rpm
- heavy duty air screwdriver 17nm
- industrial air screwdriver 6mm
- high torque air screwdriver 1/4 pt
Design file download links:
PDF fileDescription
Specification OP-2C3823
The Onpin OP-2C3823 Air Screwdriver is a heavy-duty industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational speed, delivering a free speed of 2300 rpm and a maximum torque output of 17 Nm, equipped with an automatic disengaging clutch to protect workpieces from damage.
Key Features of Onpin OP-2C3823
- High-Torque Clutch Mechanism: Delivers robust torque output and ensures stable performance during heavy-duty operations.
- Automatic Clutch Disengagement: The clutch disengages automatically at the preset torque to protect workpieces from surface damage.
- Rear Exhaust Design: Directs exhaust air backwards to effectively reduce noise levels to 82 dB(A) and prevent dust blowback toward operators.
- Tamper-Proof Torque Control: Features screwdriver-adjusted torque setting (Torque adjustable by screwdriver) for easy management while preventing unauthorized parameter changes on production lines.
- Positioning Forward/Reverse Switch: Equipped with a precision positioning F/R switch for accurate and convenient directional control.

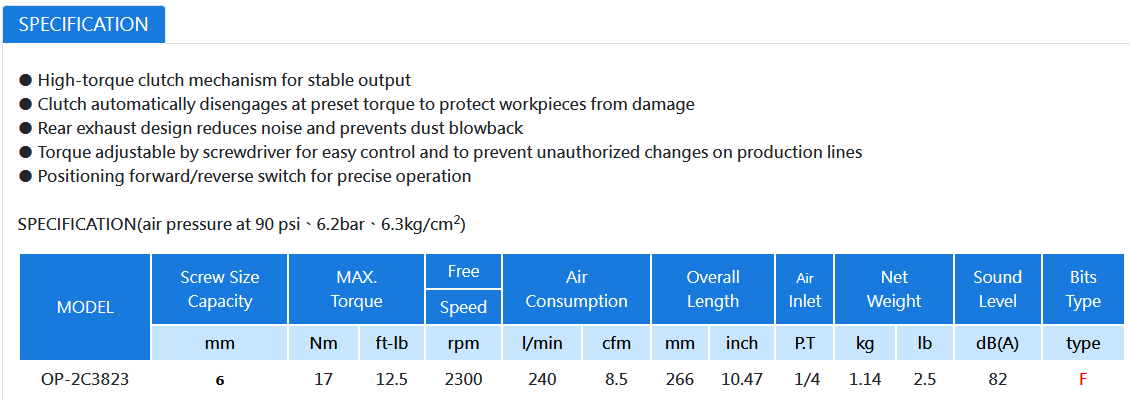

Technical Specifications of Onpin OP-2C3823
- Model: OP-2C3823
- Screw Size Capacity: 6 mm
- MAX. Torque: 17 Nm (12.5 ft-lb)
- Free Speed: 2300 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 266 mm (10.47 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.14 kg (2.5 lb)
- Sound Level: 82 dB(A)
- Bits Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-2C3823
- Machinery & Heavy Equipment Assembly: Ideal for demanding fastening applications requiring high torque up to 17 Nm.
- Metal & Plastic Component Manufacturing: Prevents workpiece damage via its automatic clutch release mechanism.
- Industrial Woodworking & Furniture Lines: Maximizes assembly efficiency for standard 6 mm screws.
- Electronics & Electrical Appliance Lines: Maintains consistent fastening quality thanks to tamper-proof torque adjustment controls.
