/ Onpin OP-RW11473 / OP-RW11474 Air Ratchet Wrench - M10, 100Nm, Rear Exhaust
Onpin OP-RW11473 / OP-RW11474 Air Ratchet Wrench - M10, 100Nm, Rear Exhaust
The Onpin OP-RW11473 and OP-RW11474 air ratchet wrenches are versatile pneumatic tools handling a wide range of projects from removing automotive fasteners to assembly work. Key design features include rear exhaust, adjustable ratchet head angle, big torque output, and lightweight construction. Operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), these models handle M10 bolt size capacity, delivering a working torque of 80 Nm (59 ft-lb) and a maximum torque of 100 Nm (74 ft-lb). Featuring a free speed of 100 rpm, overall length of 275 mm (10.82 inch), and net weight of 1.45 kg (3.19 lb), they consume 310 l/min (11 cfm) of air via a 1/4 P.T inlet at a sound level of 85 dB(A).
- OP-RW11473
- OP-RW11474
- RW11473
- RW11474
- OP-RW11
- OP-RW
- air ratchet wrench
- pneumatic ratchet wrench m10
- Onpin air ratchet wrench
- air ratchet tool
- pneumatic angle wrench
Design file download links:
Other fileDescription
Specification OP-RW11473、OP-RW11474
The Onpin OP-RW11473 / OP-RW11474 air ratchet wrench is a heavy-duty pneumatic right-angle fastening tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The device efficiently converts compressed air power into high rotational torque, capable of handling a broad scope of tasks from removing automotive fasteners to general industrial assembly for M10 bolt capacity. Combining high torque output with a lightweight ergonomic frame, the OP-RW11473 and OP-RW11474 maximize productivity for maintenance engineers and assembly line technicians.
Key Features of Onpin OP-RW11473 / OP-RW11474
- Rear Exhaust Design: Directs exhaust air away from the working surface and operator to maintain a clean, safe work area.
- High Torque & Lightweight Construction: Delivers up to 100 Nm (74 ft-lb) maximum torque while weighing only 1.45 kg (3.19 lb), significantly reducing operator fatigue during prolonged use.
- Adjustable Ratchet Head Angle: Features an adjustable head angle to optimize maneuverability and reach in tight or awkward mechanical spaces.
- Consistent Pneumatic Specs: Operates at a free speed of 100 rpm with air consumption of 310 l/min (11 cfm) through a 1/4 P.T air inlet, maintaining a low sound level of 85 dB(A).

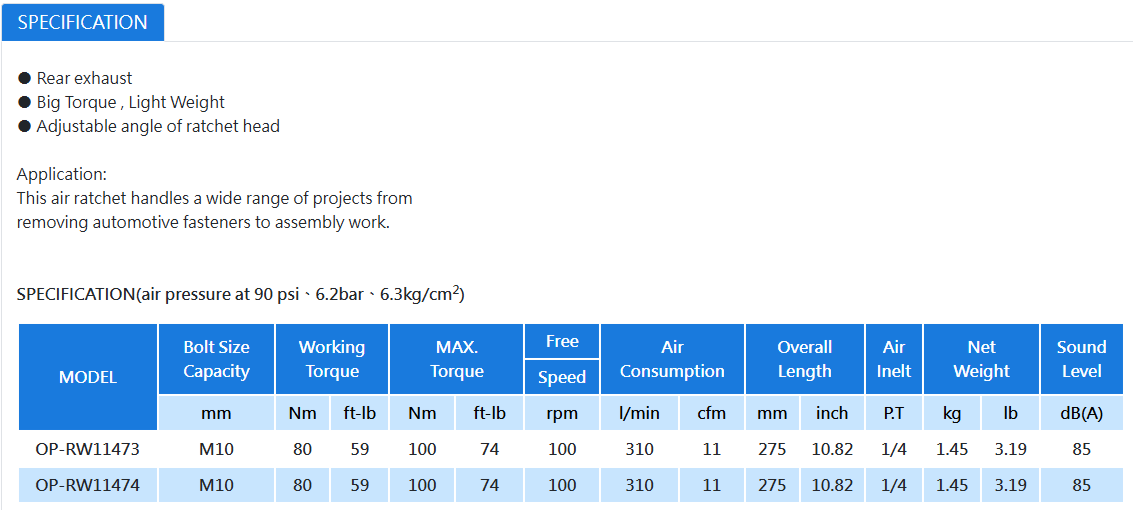

Technical Specifications of Onpin OP-RW11473 / OP-RW11474
- Model: OP-RW11473, OP-RW11474
- Bolt Size Capacity: M10
- Working Torque: 80 Nm / 59 ft-lb
- MAX. Torque: 100 Nm / 74 ft-lb
- Free Speed: 100 rpm
- Air Consumption: 310 l/min / 11 cfm
- Overall Length: 275 mm / 10.82 inch
- Air Inlet: 1/4 P.T
- Net Weight: 1.45 kg / 3.19 lb
- Sound Level: 85 dB(A)
- Standard Operating Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
- Special Features: Rear exhaust, Big Torque / Light Weight design, Adjustable angle of ratchet head.
Industrial Applications of Onpin OP-RW11473 / OP-RW11474
- Automotive Repair & Servicing: Rapid removal and installation of M10 automotive fasteners, engine bay bolts, and undercarriage components.
- Industrial Machinery Assembly: Fastening structural components and machinery frames on automated production lines.
- Plant Maintenance Operations: Servicing factory machinery requiring high torque output and adjustable right-angle access.
