/ Onpin OP-RW1016 Air Ratchet Wrench - Hex 8-14mm, 41Nm, 450rpm
Onpin OP-RW1016 Air Ratchet Wrench - Hex 8-14mm, 41Nm, 450rpm
The Onpin OP-RW1016 air ratchet wrench is a specialized pneumatic tool designed for fastening bolts and nuts in narrow working spaces unreachable by standard air tools. Operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it covers Hex sizes 8, 10, 12, 13, 14 mm, delivering a working torque of 10 Nm (7 ft-lb) and a maximum torque of 41 Nm (30 ft-lb). Featuring a free speed of 450 rpm, an overall length of 188 mm (7.4 inch), and a lightweight net weight of 0.55 kg (1.21 lb), it offers effortless handling. The tool consumes 141 l/min (5 cfm) of air with a 1/4 P.T inlet, maintains a low noise level of 77 dB(A), and includes versatile socket/bit accessory options.
- OP-RW1016
- RW1016
- OP-RW10
- OP-RW
- air ratchet wrench
- pneumatic ratchet wrench
- Onpin air ratchet wrench
- narrow space air wrench
- mini pneumatic ratchet
Design file download links:
Other fileDescription

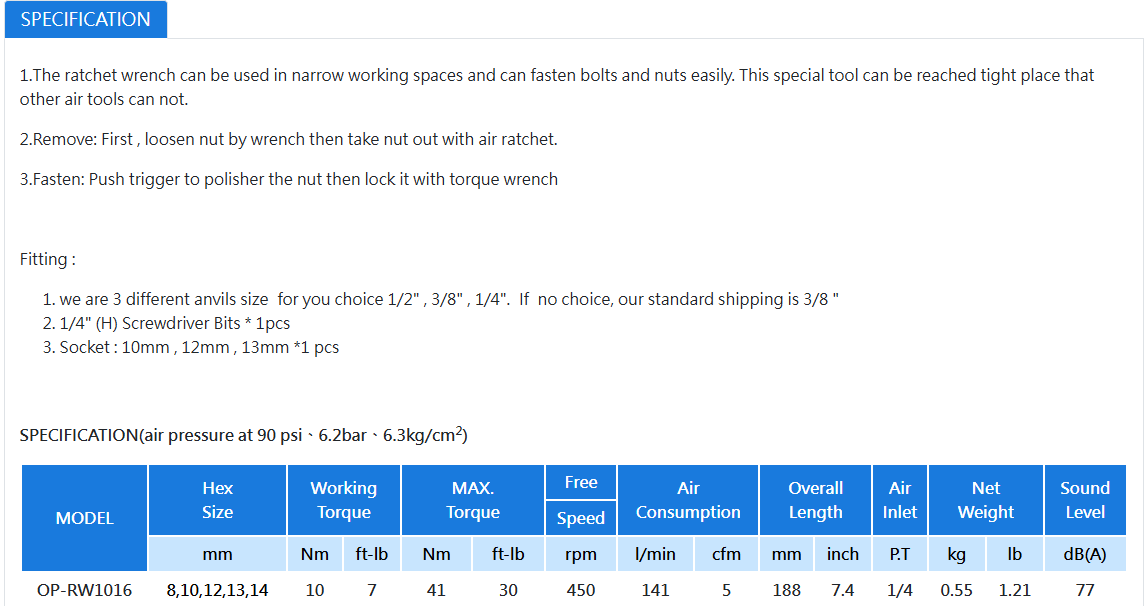

Specification OP-RW1016
The Onpin OP-RW1016 air ratchet wrench is a specialized right-angle pneumatic fastening tool designed to tighten and loosen bolts and nuts in narrow working spaces unreachable by conventional air tools. Powered by compressed air at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it efficiently converts air pressure into rotational movement for rapid mechanical assembly. Featuring an ultra-lightweight profile and versatile fittings, the OP-RW1016 delivers maximum efficiency for maintenance engineers and technicians.
Key Features of Onpin OP-RW1016
- Narrow Space Accessibility: The slim ratchet head mechanism allows seamless operation in tight, confined spaces within engine bays and machine frames.
- Versatile Socket & Bit Fittings: Accommodates Hex sizes 8, 10, 12, 13, 14 mm, offers 3 anvil size choices 1/2", 3/8", 1/4" (standard shipping 3/8"), and includes 1 pcs 1/4" (H) Screwdriver Bit plus 3 pcs Sockets (10mm, 12mm, 13mm).
- Two-Step Standard Procedure: Facilitates proper removal (loosen with wrench, spin out with air ratchet) and fastening (run down with air ratchet, lock with torque wrench) workflows.
- Ultra-Lightweight & Low Noise: Weighs only 0.55 kg (1.21 lb) to prevent fatigue during prolonged use, while operating at a quiet noise level of 77 dB(A).
Technical Specifications of Onpin OP-RW1016
- Model: OP-RW1016
- Hex Size: 8, 10, 12, 13, 14 mm
- Working Torque: 10 Nm (7 ft-lb)
- MAX. Torque: 41 Nm (30 ft-lb)
- Free Speed: 450 rpm
- Air Consumption: 141 l/min (5 cfm)
- Overall Length: 188 mm (7.4 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.55 kg (1.21 lb)
- Sound Level: 77 dB(A)
- Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Fitting Accessories: 3 anvil options 1/2", 3/8", 1/4" (standard 3/8"), 1 pcs 1/4" (H) Screwdriver Bit, 3 pcs Sockets (10mm, 12mm, 13mm).
Industrial Applications of Onpin OP-RW1016
- Automotive Repair & Services: Fastening and removing bolts inside compact engine compartments, dashboards, and under-chassis components.
- Machinery & Equipment Assembly: Ideal for tight-space bolting on mechanical assembly lines, control panels, and intricate machinery.
- Plant Maintenance & Fabrication: Perfect for routine plant equipment servicing where compact and agile pneumatic tools are required.
