/ Onpin OP-RW10172 / OP-RW1073 Air Ratchet Wrench - M6, 34Nm, 250rpm
Onpin OP-RW10172 / OP-RW1073 Air Ratchet Wrench - M6, 34Nm, 250rpm
The Onpin OP-RW10172 and OP-RW1073 air ratchet wrenches are pneumatic tools designed for fastening M6 bolts and nuts in industrial maintenance and assembly lines. Operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), these models deliver a working torque of 10 Nm (7 ft-lb) and a maximum torque of 34 Nm (25 ft-lb). Featuring a free speed of 250 rpm, an overall length of 188 mm (7.13 inch), and an ultra-lightweight net weight of 0.55 kg (1.21 lb), they ensure easy handling and flexibility. Both models utilize a 1/4 P.T air inlet with a sound level of 85 dB(A), while air consumption is 141 l/min (5 cfm) for OP-RW10172 and 131 l/min (5 cfm) for OP-RW1073.
- OP-RW10172
- OP-RW1073
- RW10172
- RW1073
- OP-RW10
- OP-RW
- air ratchet wrench
- pneumatic ratchet wrench m6
- Onpin air ratchet wrench
- air ratchet tool
- pneumatic angle wrench
Design file download links:
Other fileDescription
Specification OP-RW10172, OP-RW10173
The Onpin OP-RW10172 / OP-RW1073 air ratchet wrench is a series of right-angle pneumatic fastening tools designed to run on a standard working pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The device converts compressed air power into smooth rotational force to quickly tighten or loosen M6 size bolts and nuts in confined spaces. Featuring an ultra-lightweight build and exceptional reliability, the OP-RW10172 and OP-RW1073 provide an efficient bolting solution for maintenance and assembly technicians.
Key Features of Onpin OP-RW10172 / OP-RW1073
- Optimized for M6 Fasteners: Specifically engineered with a Bolt Size Capacity of M6 for precise light-to-medium duty bolting operations.
- Dependable Torque Output: Delivers a working torque of 10 Nm (7 ft-lb) and a maximum torque of 34 Nm (25 ft-lb).
- Ultra-Compact Profile: An overall length of 188 mm (7.13 inch) combined with a lightweight net weight of 0.55 kg (1.21 lb) minimizes user fatigue during prolonged overhead or tight-space usage.
- Quiet & Economical Operation: Maintains a low noise output of 85 dB(A) with economical air consumption of 141 l/min (5 cfm) for OP-RW10172 and 131 l/min (5 cfm) for OP-RW1073.

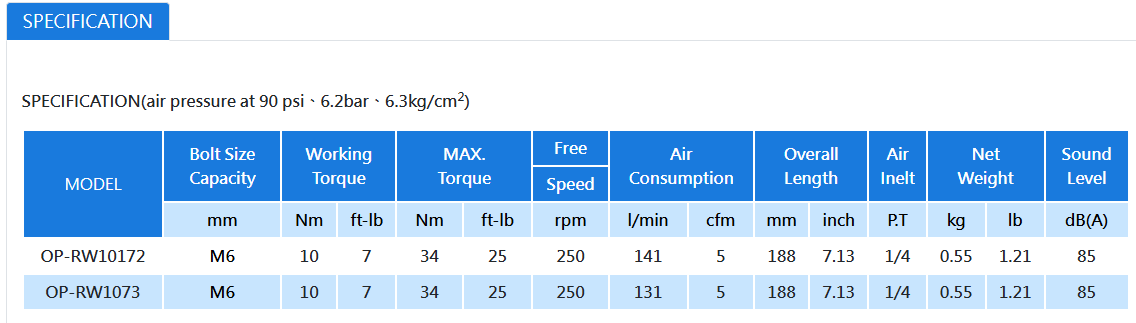

Technical Specifications of Onpin OP-RW10172 / OP-RW1073
- Model: OP-RW10172, OP-RW1073
- Bolt Size Capacity: M6
- Working Torque: 10 Nm / 7 ft-lb
- MAX. Torque: 34 Nm / 25 ft-lb
- Free Speed: 250 rpm
- Air Consumption: 141 l/min (5 cfm) (for OP-RW10172) / 131 l/min (5 cfm) (for OP-RW1073)
- Overall Length: 188 mm / 7.13 inch
- Air Inlet: 1/4 P.T
- Net Weight: 0.55 kg / 1.21 lb
- Sound Level: 85 dB(A)
- Standard Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-RW10172 / OP-RW1073
- Automotive Maintenance & Repair: Fastening M6 bolts in tight engine bays, dashboard assemblies, and interior components.
- Electrical & Control Panel Assembly: Installing small mechanical fasteners on electrical enclosures and automation equipment.
- Light Machinery Manufacturing: Ideal for high-repetition assembly lines requiring precise, low-torque pneumatic tools.
