/ Onpin OP-RW10223 / OP-RW10224 Air Ratchet Wrench - M10, 95Nm, 180rpm
Onpin OP-RW10223 / OP-RW10224 Air Ratchet Wrench - M10, 95Nm, 180rpm
The Onpin OP-RW10223 and OP-RW10224 air ratchet wrenches are professional pneumatic tools designed for fastening M10 bolts and nuts in industrial maintenance and mechanical assembly. Operating at a standard working air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), these tools produce a working torque of 50 Nm (37 ft-lb) and a maximum torque of 95 Nm (70 ft-lb). Featuring a free speed of 180 rpm, an overall length of 266 mm (10.47 inch), and a net weight of 1.2 kg (2.65 lb), they provide reliable performance for heavy-duty bolting operations. The tools consume 170 l/min (6 cfm) of air, utilize a 1/4 P.T air inlet, and maintain an operating sound level of 85 dB(A).
- OP-RW10223
- OP-RW10224
- RW10223
- RW10224
- OP-RW10
- OP-RW
- air ratchet wrench
- pneumatic ratchet wrench m10
- Onpin air ratchet wrench
- air ratchet tool
- pneumatic angle wrench
Design file download links:
Other fileDescription

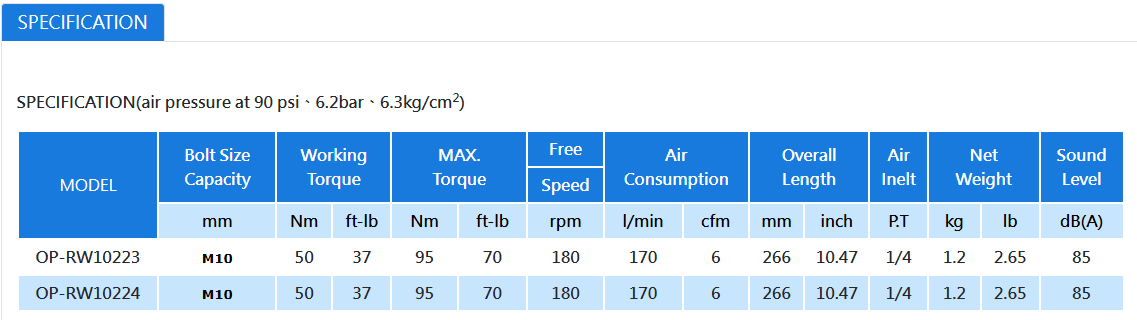

Specification OP-RW10223, OP-RW10224
The Onpin OP-RW10223 / OP-RW10224 air ratchet wrench is a heavy-duty right-angle pneumatic fastening tool engineered to operate at a standard working air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The tool efficiently converts pneumatic pressure into rotational output, enabling rapid tightening and loosening of M10 bolts and nuts in confined working spaces. Delivering high torque capabilities and rugged structural durability, the OP-RW10223 and OP-RW10224 provide a highly reliable bolting solution for industrial assembly and maintenance engineers.
Key Features of Onpin OP-RW10223 / OP-RW10224
- Engineered for M6-M10 Fasteners: Designed specifically for a Bolt Size Capacity of M10, ensuring efficient power transmission during critical bolting tasks.
- High Torque Performance: Delivers a working torque of 50 Nm (37 ft-lb) and achieves a maximum torque of 95 Nm (70 ft-lb) for medium-to-heavy duty applications.
- Ergonomic & Robust Construction: Features an overall length of 266 mm (10.47 inch) and a solid net weight of 1.2 kg (2.65 lb) for superior stability and leverage.
- Consistent Pneumatic Efficiency: Operates at a free speed of 180 rpm with an air consumption of 170 l/min (6 cfm), utilizing a 1/4 P.T air inlet while maintaining a sound level of 85 dB(A).
Technical Specifications of Onpin OP-RW10223 / OP-RW10224
- Model: OP-RW10223, OP-RW10224
- Bolt Size Capacity: M10
- Working Torque: 50 Nm / 37 ft-lb
- MAX. Torque: 95 Nm / 70 ft-lb
- Free Speed: 180 rpm
- Air Consumption: 170 l/min / 6 cfm
- Overall Length: 266 mm / 10.47 inch
- Air Inlet: 1/4 P.T
- Net Weight: 1.2 kg / 2.65 lb
- Sound Level: 85 dB(A)
- Standard Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-RW10223 / OP-RW10224
- Automotive & Commercial Vehicle Service: Fastening and removing M10 chassis bolts, engine bay mounts, and suspension components.
- Heavy Machinery Assembly: Securing structural frames, machine bases, and mechanical automation lines.
- Plant Equipment Maintenance: Servicing industrial production machinery requiring reliable, high-torque right-angle bolting.
