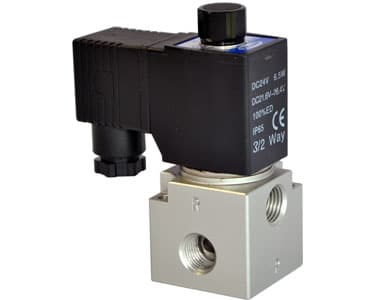

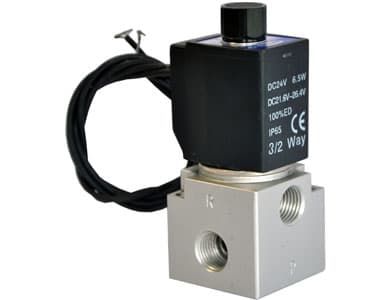

AIRTAC 3V3 Series Solenoid Valve – 3/2 Way Direct Acting Pneumatic Valve, High Flow

Specification:

The AIRTAC 3V3 Series solenoid valve is a 3/2 way direct-acting pneumatic directional control valve designed for applications requiring high flow capacity, tight sealing, and vacuum compatibility. Its robust construction and reliable performance make it ideal for industrial automation and pneumatic systems.

🔹 Key Features

1. Direct acting design for fast response and precise control.
2. 3 port 2 position (3/2 way) valve, available in normally closed (NC) and normally open (NO) configurations.
3. High air flow capacity, suitable for demanding pneumatic applications.
4. Coaxial sealing structure, providing leak-proof operation and long service life.
5. No lubrication required, reducing maintenance costs.
6. Suitable for vacuum applications, increasing versatility.
7. Equipped with manual override for easy setup and troubleshooting.

🔹 Technical Specifications

1. Brand: AIRTAC
2. Series: 3V3
3. Valve type: 3/2 way
4. Actuation: Direct acting
5. Fluid: Compressed air (filtered by 40µm element)
6. Operating pressure:
7. Compressed air: 0 – 0.8MPa (0 – 114psi)
8. Vacuum: -102.2kPa to -0.1MPa (-14.5 to -1.45psi)
9. Proof pressure: 1.2MPa
10. Operating temperature: -20 to 70°C
11. Port size: 1/4”
12. Orifice size: 11mm² (Cv = 0.62)
13. Body material: Aluminum alloy
14. Lubrication: Not required
15. Max. frequency: 10 cycles/sec (no load)
16. Coil protection: IP65

🔹 Available Models

3V308

🔹 Applications

1. Industrial pneumatic systems
2. Pneumatic cylinder control
3. Vacuum systems
4. Automation production lines
5. Packaging, assembly, and robotic equipment
