HSV Series 3/2 Way Hand Slide Pneumatic Valve, Manual Air Control Valve, Anodized Aluminum 1/8 to 1 Inch

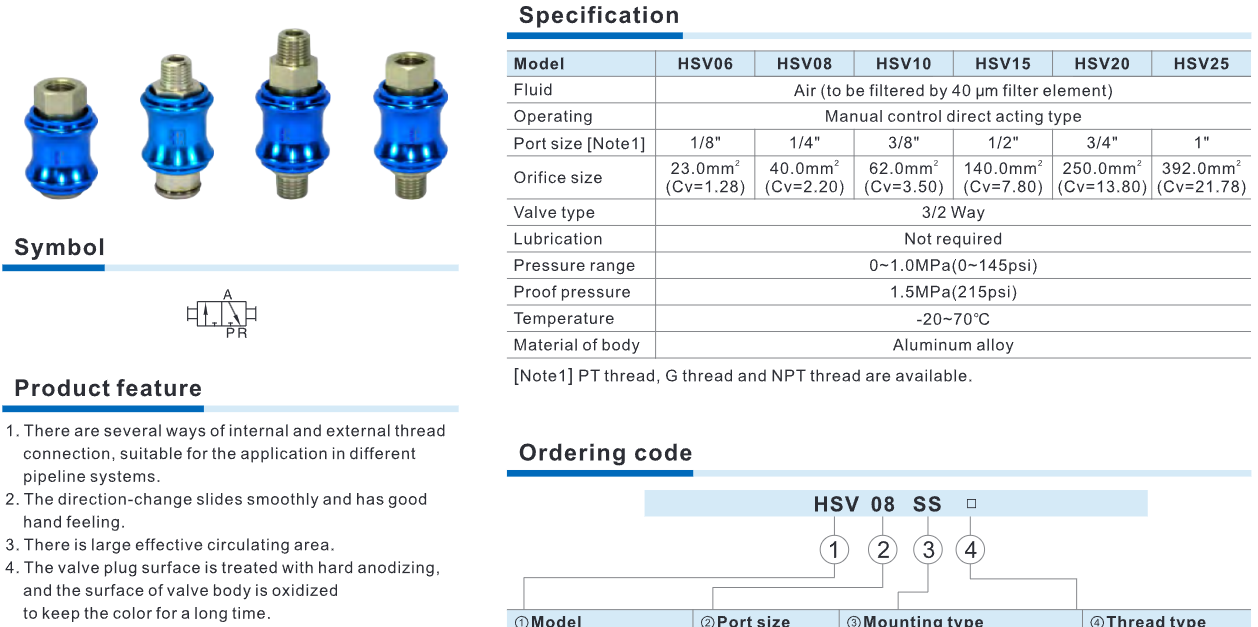

Specification HSV:

Product Overview

The HSV Series 3/2 way hand slide pneumatic valve is designed for manual control of compressed air flow in industrial pipeline systems. Featuring a direct acting sliding mechanism, it allows operators to quickly switch, shut off, or exhaust airflow with smooth hand operation. This valve is widely used in industrial pneumatic systems due to its durability and high flow efficiency.

Key Features & Design Characteristics

1. Smooth manual sliding action with quick response
2. 3/2 way configuration for efficient air control and exhaust
3. Large effective flow area with orifice sizes from 23.0 to 392.0 mm²
4. Durable anodized aluminum alloy body for corrosion resistance
5. Multiple internal and external thread connection options
6. No lubrication required, minimizing maintenance needs
7. PT, G, and NPT thread standards available

Technical Specifications

1. Valve Type: 3/2 Way Hand Slide Valve
2. Fluid: Filtered compressed air (40µm filtration)
3. Operation: Manual direct acting
4. Port Sizes: 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”
5. Orifice Size: 23.0 – 392.0 mm²
6. Flow Coefficient (Cv): 1.28 – 21.78
7. Operating Pressure: 0 – 1.0 MPa (0 – 145 psi)
8. Proof Pressure: 1.5 MPa (215 psi)
9. Operating Temperature: -20°C to 70°C
10. Body Material: Aluminum alloy

Advantages

1. High durability and corrosion resistance
2. Large airflow capacity with reduced pressure loss
3. Compact design for flexible installation
4. Simple manual operation without electrical power
5. Long service life and low operating cost

Applications

1. Industrial compressed air pipeline systems
2. Manufacturing and automation machinery
3. Packaging equipment
4. Manual air supply and exhaust control
5. Industrial pneumatic control systems
