4L Series 5/2 Way Pneumatic Push Pull Valve, Manual Air Control Valve 4L110 4L210 4L310, 1/8 1/4 3/8 Inch

Specification:

Product Overview

The 4L Series 5/2 way pneumatic push pull valve is designed for manual airflow switching in industrial pneumatic systems. Featuring a direct acting push-pull mechanism, it controls compressed air supply and exhaust for double-acting cylinders. Its durable construction and reliable performance make it ideal for demanding automation environments.

Key Features

1. Manual push-pull direct acting operation
2. 5/2 way configuration for double-acting cylinder control
3. Durable aluminum alloy body with corrosion resistance
4. High sealing performance to minimize leakage
5. Compact design for easy installation
6. No lubrication required, reducing maintenance cost
7. Available in PT, G, and NPT thread types

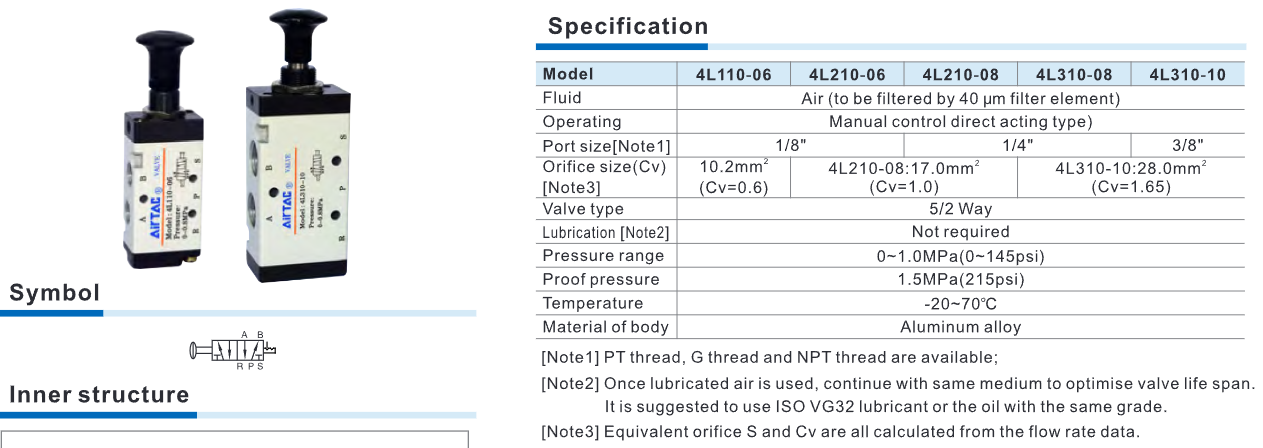

Technical Specifications

1. Valve Type: 5/2 Way Pneumatic Push Pull Valve
2. Fluid: Filtered compressed air (40µm filtration)
3. Operation: Manual direct acting
4. Port Sizes: 1/8”, 1/4”, 3/8”
5. Orifice Size: 10.2mm² – 28.0mm²
6. Flow Coefficient (Cv): 0.6 – 1.65
7. Operating Pressure: 0 – 1.0 MPa (0 – 145 psi)
8. Proof Pressure: 1.5 MPa (215 psi)
9. Operating Temperature: -20°C to 70°C
10. Body Material: Aluminum alloy

Advantages

1. Long service life and high durability
2. Stable performance under varying pressure
3. Fast and precise switching
4. Flexible installation options
5. Low maintenance and operating cost

Applications

1. Double-acting pneumatic cylinder control
2. Packaging and automation machinery
3. Industrial production lines
4. Mechanical processing equipment
5. Industrial compressed air systems
