/ 2SA Series Solenoid Valve – 2/2 Way Normally Closed Internal Pilot Valve (SUS304, AC/DC 12-220V)
-202207281135022521.jpg&w=1200&q=75 "2SA Series Solenoid Valve – 2/2 Way Normally Closed Internal Pilot Valve (SUS304, AC/DC 12-220V)")
2SA Series Solenoid Valve – 2/2 Way Normally Closed Internal Pilot Valve (SUS304, AC/DC 12-220V)
The 2SA Series solenoid valve is a 2/2 way normally closed internal pilot valve designed for fast response and high flow applications. Made from SUS304 stainless steel, it supports AC/DC voltage options (12V–220V) and multiple port sizes from 1/2" to 2". Compact, durable, and IP65 coil protection make it ideal for water, air, and industrial fluid control systems.
- 2SA (Internally piloted)2SA150
- 2SA200
- 2SA250
- 2SA320
- 2SA400
- 2SA500
- 2SA150-15
- 2SA200-20
- 2SA250-25
- 2SA320-32
- 2SA400-40
- 2SA500-50
- solenoid valve stainless steel
- 2 way normally closed solenoid valve
- water solenoid valve industrial
- SUS304 solenoid valve
- electric solenoid valve
Design file download links:
Other fileRAR filePDF fileDescription

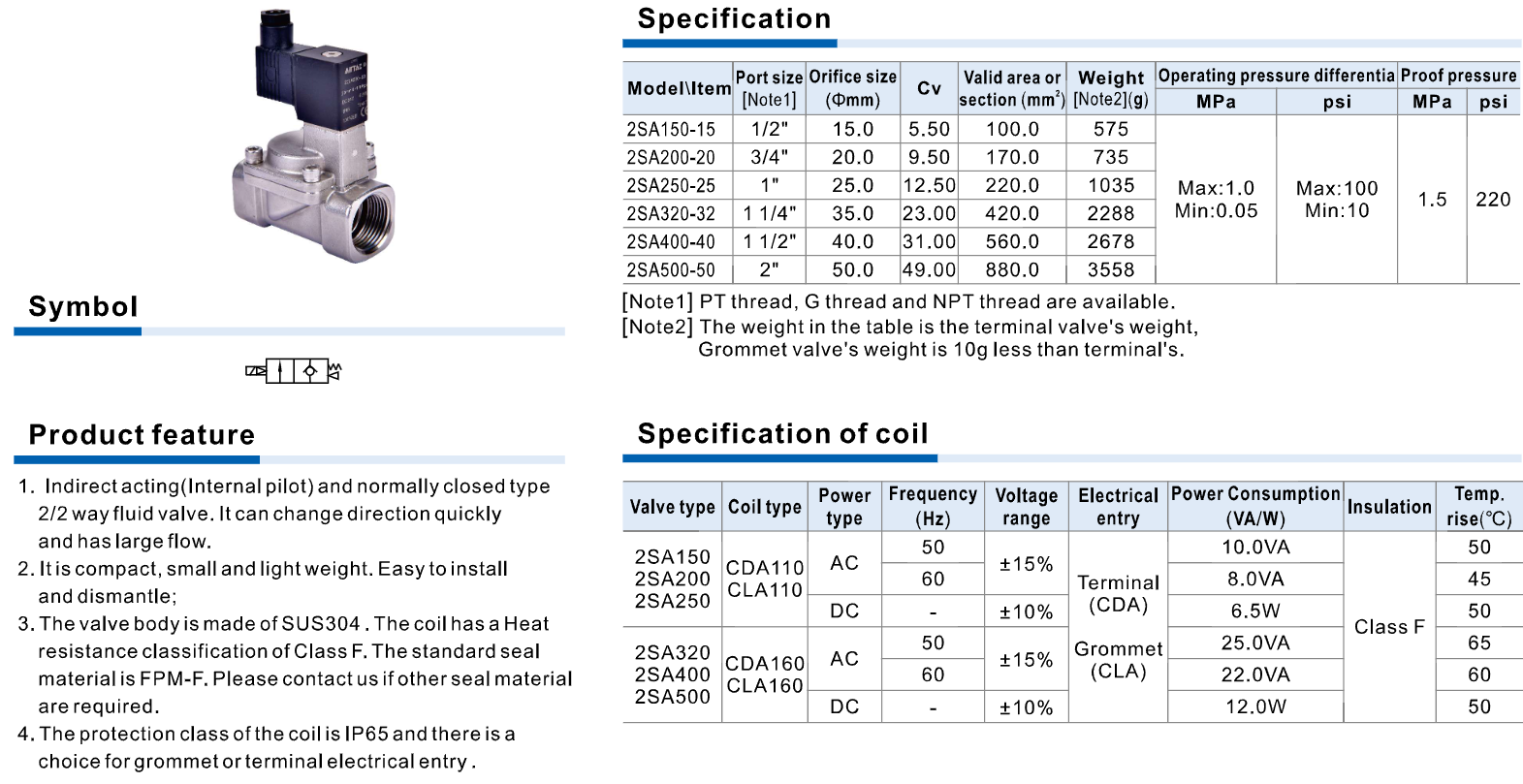

Specification 2SA (Internally piloted):
Product Overview
The 2SA Series Solenoid Valve is a 2/2 way normally closed internal pilot operated valve designed to control the flow of water, air, and industrial fluids in pipeline systems.
When the coil is energized, the magnetic field activates the pilot mechanism and allows the valve to open. When power is removed, the valve automatically closes using spring force.
The valve body is made of SUS304 stainless steel, providing excellent corrosion resistance, durability, and long service life for industrial applications.
Key Features
• Internal pilot operated design ensures fast response and high flow capacity.
• SUS304 stainless steel body provides strong corrosion resistance and durability.
• Compact and lightweight design for easy installation and maintenance.
• Class F insulation coil ensures reliable operation under continuous working conditions.
• IP65 protection level protects the coil from dust and water.
• Supports multiple AC/DC voltage options from 12V to 220V.
• Available thread types PT, G, and NPT to match different piping standards.
Technical Specifications
• Series: 2SA
• Valve Type: 2/2 Way Normally Closed Solenoid Valve
• Operation: Internal Pilot
• Body Material: SUS304 Stainless Steel
• Port Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Orifice Size: 15mm – 50mm
• Working Pressure: 0.05 – 1.0 MPa
• Proof Pressure: 1.5 MPa
• Voltage Options: AC220V, AC110V, AC24V, DC24V, DC12V
• Frequency: 50/60 Hz
• Protection Class: IP65
• Insulation Class: Class F
• Electrical Entry: Terminal or Grommet
• Thread Type: PT / G / NPT
Advantages
• High flow capacity thanks to the internal pilot structure.
• Excellent durability with stainless steel construction.
• Fast and stable switching performance.
• Easy installation and maintenance.
• Wide voltage compatibility for different control systems.
• Reliable operation in industrial environments.
Applications
• Industrial water control systems
• Pneumatic systems
• Automatic irrigation systems
• Industrial automation equipment
• Food and chemical processing industries
• HVAC and fluid control systems
