/ 2KWA Series Normally Open Solenoid Valve 2/2 Way – Brass Direct Acting Valve AC/DC 1/8”–1/2”
-202207281145239811.jpg&w=1200&q=75 "2KWA Series Normally Open Solenoid Valve 2/2 Way – Brass Direct Acting Valve AC/DC 1/8”–1/2”")
2KWA Series Normally Open Solenoid Valve 2/2 Way – Brass Direct Acting Valve AC/DC 1/8”–1/2”
The 2KWA Series solenoid valve is a 2/2 way normally open direct-acting valve designed for reliable control of water, air, and other fluids. Made with a durable brass body, it supports port sizes from 1/8” to 1/2” and multiple voltages including AC220V, AC110V, DC24V, and DC12V. With a maximum pressure up to 2.0 MPa and IP65 coil protection, this compact and high-sensitivity valve ensures fast response and easy installation. Ideal for industrial automation, pneumatic systems, and fluid control applications.
- 2KWA
- 2KWAX030-06
- 2KWAX030-08
- 2KWAH030-06
- 2KWAH030-08
- 2KWA030-06
- 2KWA030-08
- 2KWAL030-06
- 2KWAL030-08
- 2KWAX050-10
- 2KWAX050-15
- 2KWAH050-10
- 2KWAH050-15
- 2KWA050-10
- 2KWA050-15
- 2KWAL050-10
- 2KWAL050-15
- normally open solenoid valve
- 2/2 way solenoid valve
- brass solenoid valve
- industrial fluid control valve
- pneumatic solenoid valve
Design file download links:
Other fileRAR filePDF fileDescription

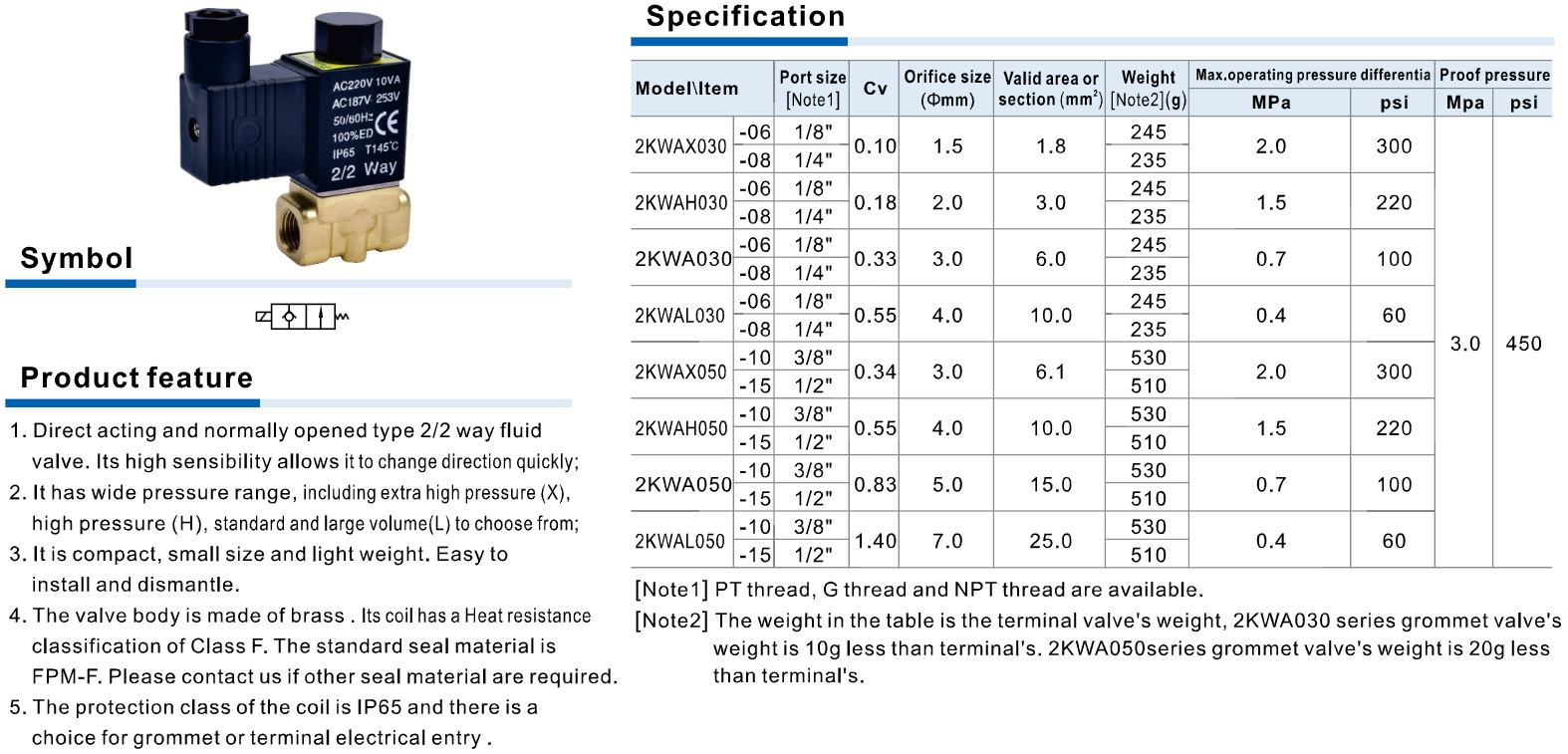

Specification 2KWA Series:
Product Description – 2KWA Series Normally Open Solenoid Valve
The 2KWA Series solenoid valve is a 2/2 way normally open direct-acting valve designed for controlling the flow of air, water, and other fluids in industrial and automation systems. Thanks to its direct acting mechanism, the valve can operate efficiently even at low or zero pressure, ensuring fast and reliable switching performance.
The valve body is manufactured from high-quality brass, providing excellent durability and corrosion resistance. The electromagnetic coil features IP65 protection, making it suitable for use in demanding industrial environments.
Key Features and Characteristics
- Normally open 2/2 way design allowing fluid to flow when the valve is not energized.
- Direct acting structure for fast response and stable operation.
- Durable brass body with strong corrosion resistance.
- Coil protection rated IP65 for dustproof and waterproof performance.
- Compact design for easy installation and maintenance.
- Available for extra high pressure, high pressure, standard, and large flow conditions.
- Compatible with PT, G, and NPT thread standards.
Technical Specifications
- Valve type: 2/2 Way Normally Open Solenoid Valve
- Product series: 2KWA Series
- Operation type: Direct Acting
- Body material: Brass
- Port size: 1/8”, 1/4”, 3/8”, 1/2”
- Orifice size: 1.5 mm – 7.0 mm
- Maximum operating pressure: Up to 2.0 MPa (300 psi)
- Proof pressure: 3.0 MPa
- Voltage options: AC220V, AC110V, DC24V, DC12V, AC24V
- Coil protection: IP65
- Insulation class: Class F
- Seal material: FPM-F
- Electrical connection: Terminal or Grommet
Advantages
- Fast switching response for precise fluid control.
- Compact and lightweight structure.
- Long service life with durable brass construction.
- Reliable operation in industrial environments.
- Multiple sizes and voltages for flexible installation.
Applications
The 2KWA Series solenoid valve is widely used in various industrial systems such as:
- Pneumatic control systems
- Water and fluid control systems
- Industrial automation equipment
- Water treatment systems
- Manufacturing machinery and production lines
