2KSA Series Normally Open Solenoid Valve – Direct Acting SUS304 IP65 (1/8" to 1/2")

Specification 2KSA Series:

Product Overview

The 2KSA Series solenoid valve is a 2/2 way normally open direct-acting solenoid valve designed for reliable fluid control in industrial systems. In its default state (without power), the valve remains open, allowing fluid or gas to flow through. When power is applied, the electromagnetic coil closes the valve to control the flow.

With its fast response and high sensitivity, the 2KSA solenoid valve is widely used in fluid control systems, pneumatic systems, and industrial automation equipment. The valve body is made of SUS304 stainless steel, providing excellent corrosion resistance and long service life.

Features and Characteristics

1. 2/2 way normally open design, allowing flow when not energized.
2. Direct acting mechanism ensures reliable operation even at low or zero pressure.
3. Valve body made from SUS304 stainless steel for durability and corrosion resistance.
4. Wide pressure range options, including extra high pressure (X), high pressure (H), standard and large flow (L).
5. IP65 rated coil, suitable for harsh industrial environments.
6. Compact and lightweight structure for easy installation and maintenance.
7. Available with PT, G, or NPT thread connections.
8. Multiple voltage options for flexible system integration.

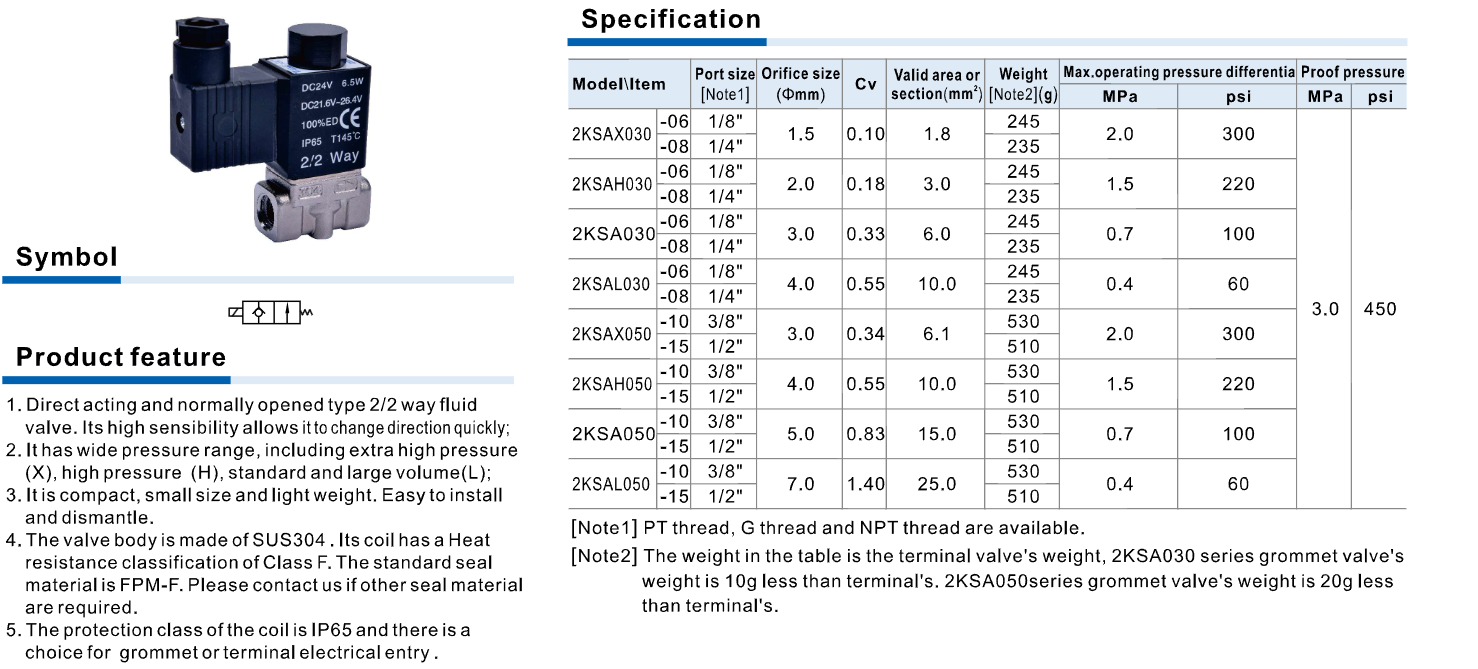

Technical Specifications

1. Model: 2KSA Series
2. Valve type: 2/2 Way Direct Acting Normally Open
3. Port sizes:
4. 1/8"
5. 1/4"
6. 3/8"
7. 1/2"
8. Orifice size: 1.5 – 7.0 mm
9. Flow coefficient (Cv): 0.10 – 1.40
10. Max operating pressure: 0.4 – 2.0 MPa
11. Proof pressure: 3.0 MPa
12. Body material: SUS304 Stainless Steel
13. Seal material: FPM-F
14. Coil protection: IP65
15. Voltage options:
16. AC220V
17. AC110V
18. AC24V
19. DC24V
20. DC12V
21. Electrical connection: Terminal or Grommet
22. Thread type: PT / G / NPT

Advantages

1. High sensitivity and fast response for precise flow control.
2. Reliable operation even at low or zero pressure.
3. Excellent corrosion resistance with stainless steel body.
4. Long service life and stable performance.
5. Compact design for easy installation.
6. Wide selection of sizes and voltage options for various industrial applications.

Applications

The 2KSA Series solenoid valve is widely used in:

1. Industrial pneumatic systems
2. Water supply and drainage systems
3. Water treatment equipment
4. Industrial automation machinery
5. Manufacturing equipment
6. Oil and fluid control systems
7. Food and pharmaceutical processing equipment
