Onpin OP-915D Air Impact Wrench - M24~M27, Max Torque 2000Nm, 3800rpm, Heavy Duty

Specification OP-915D

The Onpin OP-915D air impact wrench is a heavy-duty industrial pneumatic bolting tool designed for demanding structural and mechanical applications. Operating at a standard working pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it generates extreme torque output to efficiently secure and loosen heavy fasteners ranging from M24 to M27 bolt capacity.

Key Features of Onpin OP-915D

1. Extreme Torque Capability: Delivers a working torque of 1300 Nm and a massive peak torque of 2000 Nm, easily handling large M24~M27 bolt sizes.
2. High Operational Efficiency: Runs at a free speed of 3800 rpm with an air consumption of 410 l/min (14.5 cfm) for fast fastening cycles.
3. Low Noise Level: Engineered with a controlled noise rating of 85 dB(A) to minimize workshop sound levels during continuous operation.
4. Rugged & Solid Construction: Features an overall length of 260 mm (10.24 inch) and a net weight of 6.08 kg (13.4 lb), offering optimal stability for heavy-duty tasks.

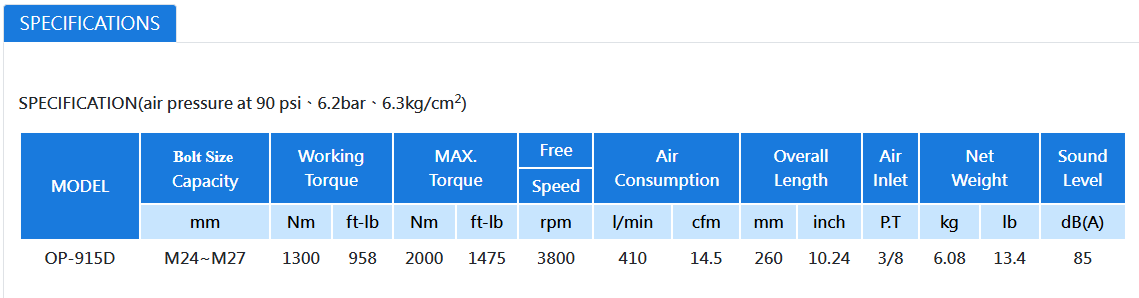

Technical Specifications of Onpin OP-915D

1. Model: OP-915D
2. Bolt Size Capacity: M24~M27
3. Working Torque: 1300 Nm (958 ft-lb)
4. MAX. Torque: 2000 Nm (1475 ft-lb)
5. Free Speed: 3800 rpm
6. Air Consumption: 410 l/min (14.5 cfm)
7. Overall Length: 260 mm (10.24 inch)
8. Air Inlet: 3/8 P.T
9. Net Weight: 6.08 kg (13.4 lb)
10. Sound Level: 85 dB(A)
11. Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-915D

1. Heavy Machinery Assembly & Manufacturing: Securing M24~M27 structural bolts on heavy machinery frames, equipment chassis, and steel structures.
2. Industrial Maintenance & Repair: Essential for servicing heavy-duty trucks, construction machinery, and industrial production plant systems.
3. Mechanical Engineering Projects: Fastening critical joints demanding high torque performance and reliable pneumatic operation.
