Onpin OP-913DZ6 Air Impact Wrench - M24, Max Torque 1800~2000Nm, Inside Trigger, 6-1/2" Anvil
The Onpin OP-913DZ6 air impact wrench is a heavy-duty pneumatic bolting tool equipped with an inside trigger and an extended 6-1/2" driver anvil length. Designed specifically for M24 bolt size capacity applications, it operates at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The tool delivers a working torque of 1400 Nm (1032 ft-lb) and a maximum torque range of 1800~2000 Nm (1320~1470 ft-lb) at a free speed of 4000 rpm. Key technical specifications include an air consumption of 424 l/min (15 cfm), overall length of 500 mm (19.69 inch), net weight of 7.4 kg (16.31 lb), 3/8 P.T air inlet, and an operating sound level of 102 dB(A).
- OP-913DZ6
- 913DZ6
- OP-913
- OP-913DZ
- air impact wrench
- pneumatic impact wrench
- Onpin air impact wrench
- M24 air impact wrench
- inside trigger air wrench
Design file download links:
Other fileDescription

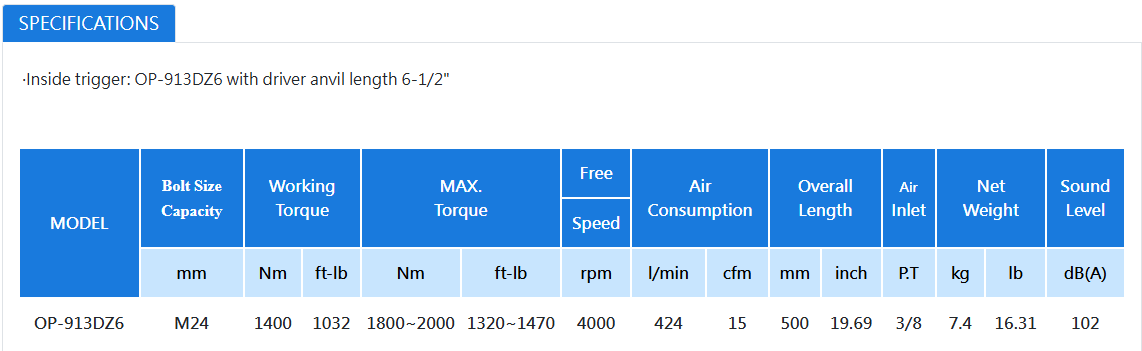

Specification OP-913DZ6
The Onpin OP-913DZ6 air impact wrench is a heavy-duty industrial pneumatic bolting tool engineered for high-torque mechanical fastening applications. Operating on compressed air at a standard working pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it features an inside trigger mechanism and an extended 6-1/2" driver anvil length to efficiently and accurately secure or loosen fasteners with an M24 bolt capacity in deep or recessed areas.
Key Features of Onpin OP-913DZ6
- Inside Trigger & 6-1/2" Extended Anvil: Designed with an inside trigger configuration for enhanced operator protection against accidental activation, paired with an extended 6-1/2" anvil length for deep structural reach.
- Massive Torque Output: Delivers a working torque of 1400 Nm and a maximum torque range of 1800~2000 Nm, perfectly suited for heavy M24 bolting requirements.
- High Free Speed: Operates at a free speed of 4000 rpm, significantly accelerating operational cycle efficiency.
- Extended Solid Profile: Features an overall length of 500 mm (19.69 inch) and a net weight of 7.4 kg (16.31 lb), ensuring excellent stability and control during high-torque operations.
Technical Specifications of Onpin OP-913DZ6
- Model: OP-913DZ6
- Design Feature: Inside trigger with driver anvil length 6-1/2"
- Bolt Size Capacity: M24
- Working Torque: 1400 Nm (1032 ft-lb)
- MAX. Torque: 1800~2000 Nm (1320~1470 ft-lb)
- Free Speed: 4000 rpm
- Air Consumption: 424 l/min (15 cfm)
- Overall Length: 500 mm (19.69 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 7.4 kg (16.31 lb)
- Sound Level: 102 dB(A)
- Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-913DZ6
- Heavy Machinery Assembly: Securing M24 structural bolts on heavy machinery chassis, steel frame constructions, and deep-set industrial equipment.
- Industrial Maintenance & Repair: Essential for heavy-duty vehicle maintenance workshops, commercial truck wheel servicing, and construction equipment repair.
- General Mechanical Engineering: Applied in demanding industrial environments requiring inside trigger safety, extended anvil reach, high torque output, and long-term durability.
