Onpin OP-913D6 Air Impact Wrench - M24, Max Torque 1800~2000Nm, Outside Trigger, 6-1/2" Anvil
The Onpin OP-913D6 air impact wrench is a heavy-duty pneumatic bolting tool equipped with an outside trigger and an extended 6-1/2" driver anvil length. Designed specifically for M24 bolt size capacity applications, it operates at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The tool delivers a working torque of 1400 Nm (1032 ft-lb) and a maximum torque range of 1800~2000 Nm (1320~1470 ft-lb) at a free speed of 4000 rpm. Key technical specifications include an air consumption of 424 l/min (15 cfm), overall length of 500 mm (19.69 inch), net weight of 7.4 kg (16.31 lb), 3/8 P.T air inlet, and a sound level of 102 dB(A).
- OP-913D6
- 913D6
- OP-913
- OP-913D
- air impact wrench
- pneumatic impact wrench
- Onpin air impact wrench
- M24 air impact wrench
- extended anvil air wrench
Design file download links:
Other fileDescription
Specification OP-913DZ6
The Onpin OP-913D6 air impact wrench is a heavy-duty industrial pneumatic bolting tool engineered for extreme-torque mechanical fastening applications. Powered by compressed air at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it features an outside trigger mechanism and an extended 6-1/2" driver anvil length to efficiently and accurately handle M24 bolt capacity tasks in deep or recessed areas.
Key Features of Onpin OP-913D6
- Outside Trigger & 6-1/2" Extended Anvil: Built with an outside trigger design for high responsiveness, combined with an extended 6-1/2" anvil length for reaching deep-set bolts.
- Massive Torque Output: Delivers a working torque of 1400 Nm and a maximum torque range of 1800~2000 Nm, perfectly matched for heavy M24 bolting applications.
- High Free Speed: Operates at a free speed of 4000 rpm, accelerating operational cycle efficiency on production lines.
- Extended Solid Profile: Features an overall length of 500 mm (19.69 inch) and a net weight of 7.4 kg (16.31 lb), delivering exceptional balance and control during high-torque output.

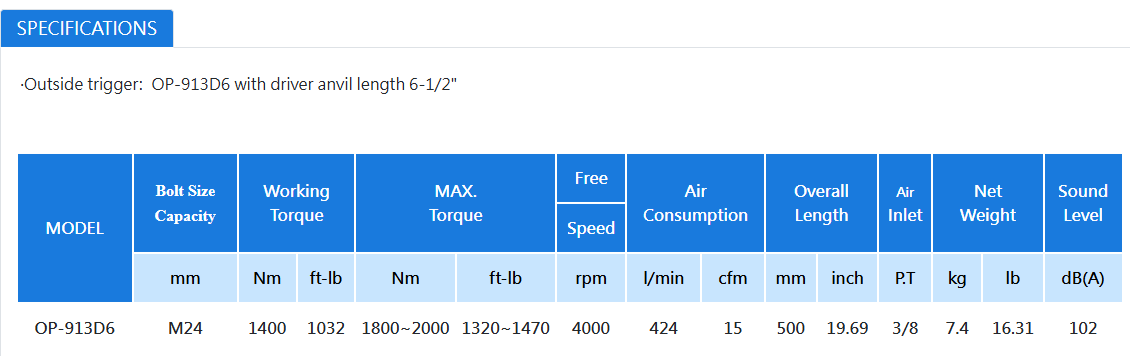

Technical Specifications of Onpin OP-913D6
- Model: OP-913D6
- Design Feature: Outside trigger with driver anvil length 6-1/2"
- Bolt Size Capacity: M24
- Working Torque: 1400 Nm (1032 ft-lb)
- MAX. Torque: 1800~2000 Nm (1320~1470 ft-lb)
- Free Speed: 4000 rpm
- Air Consumption: 424 l/min (15 cfm)
- Overall Length: 500 mm (19.69 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 7.4 kg (16.31 lb)
- Sound Level: 102 dB(A)
- Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-913D6
- Heavy Machinery Assembly: Securing M24 structural bolts on heavy machinery chassis, steel frame constructions, and deep-set industrial equipment.
- Industrial Maintenance & Repair: Ideal for heavy-duty vehicle maintenance workshops, commercial truck wheel servicing, and construction equipment repair.
- General Mechanical Construction: Applied in demanding industrial environments requiring outside trigger operation, extended anvil reach, high torque output, and long-term durability.
