/ Onpin OP-913D2 Air Impact Wrench - M24, Max Torque 1800~2000Nm, Side Exhaust, Outside Trigger
Onpin OP-913D2 Air Impact Wrench - M24, Max Torque 1800~2000Nm, Side Exhaust, Outside Trigger
The Onpin OP-913D2 air impact wrench is a light-type heavy-duty pneumatic bolting tool featuring side exhaust, an outside trigger, and a 1/2" driver anvil length. Engineered specifically for M24 bolt size capacity applications, it operates at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The tool delivers a working torque of 1400 Nm (1032 ft-lb) and a maximum torque range of 1800~2000 Nm (1320~1470 ft-lb) at a free speed of 4000 rpm. Key technical specifications include an air consumption of 424 l/min (15 cfm), overall length of 350 mm (13.78 inch), net weight of 6.6 kg (14.55 lb), 3/8 P.T air inlet, and a sound level of 102 dB(A).
- OP-913D2
- 913D2
- OP-913
- OP-913D
- air impact wrench
- pneumatic impact wrench
- Onpin air impact wrench
- M24 air impact wrench
- side exhaust air wrench
Design file download links:
Other fileDescription

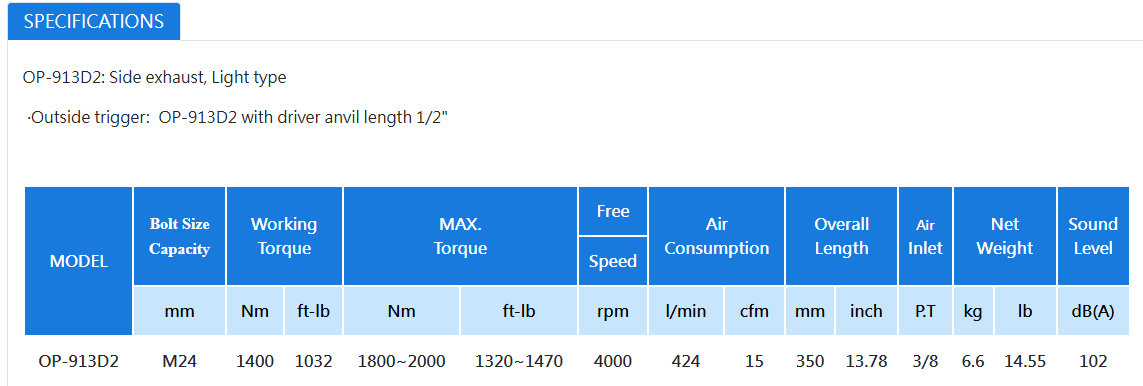

Specification OP-913D2
The Onpin OP-913D2 air impact wrench is a light-type heavy-duty industrial pneumatic bolting tool engineered for extreme mechanical fastening applications. Powered by compressed air at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it features a side exhaust design, outside trigger mechanism, and a 1/2" driver anvil length to efficiently and accurately handle M24 bolt capacity tasks.
Key Features of Onpin OP-913D2
- Side Exhaust & Outside Trigger: Features a side exhaust design that directs air away from the workplace, paired with an outside trigger for high operational responsiveness.
- Light-Type Optimized Profile: Designed as a light-type impact wrench, offering structural durability without unnecessary bulk to reduce operator fatigue.
- Massive Torque Output: Delivers a working torque of 1400 Nm and a maximum torque range of 1800~2000 Nm, perfectly suited for heavy M24 bolting requirements.
- High Operational Efficiency: Runs at a free speed of 4000 rpm with an overall length of 350 mm (13.78 inch) and a net weight of 6.6 kg (14.55 lb), ensuring excellent handling balance.
Technical Specifications of Onpin OP-913D2
- Model: OP-913D2
- Design Feature: Side exhaust, Light type / Outside trigger with driver anvil length 1/2"
- Bolt Size Capacity: M24
- Working Torque: 1400 Nm (1032 ft-lb)
- MAX. Torque: 1800~2000 Nm (1320~1470 ft-lb)
- Free Speed: 4000 rpm
- Air Consumption: 424 l/min (15 cfm)
- Overall Length: 350 mm (13.78 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 6.6 kg (14.55 lb)
- Sound Level: 102 dB(A)
- Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-913D2
- Heavy Machinery Assembly: Securing M24 structural bolts on heavy machinery chassis, steel frame constructions, and industrial equipment.
- Industrial Maintenance & Repair: Ideal for heavy-duty vehicle maintenance workshops, construction equipment repair, and plant servicing.
- General Mechanical Construction: Applied in demanding industrial environments requiring side exhaust air direction, high torque output, and operational reliability.
