Onpin OP-606D4 Air Impact Wrench - M12/M16, Max Torque 480Nm, 9000rpm, Ultra-Compact

Specification OP-606D4

The Onpin OP-606D4 air impact wrench is a heavy-duty industrial pneumatic tool designed for demanding manufacturing environment applications. Powered by compressed air at a standard operating pressure of 90 psi (6.2 bar), it drives high-torque mechanisms to efficiently and accurately handle M16 bolt capacities.

Key Features of Onpin OP-606D4

1. High Torque Output: Delivers a working torque of 300 Nm and a maximum torque of 480 Nm to handle tough fastening tasks.
2. Low Vibration Mechanism: Generates less vibration than single ring types, ensuring longer tool life (Long Lasting) and improved operator ergonomics.
3. Quickly Forward and Reverse Trigger: Features a trigger design that allows operators to rapidly switch rotation directions on the fly.
4. Ultra-Compact Profile: Measures an overall length of just 136 mm (5.35 inch) and weighs 1.47 kg (3.24 lb), making it ideal for restricted workspaces.

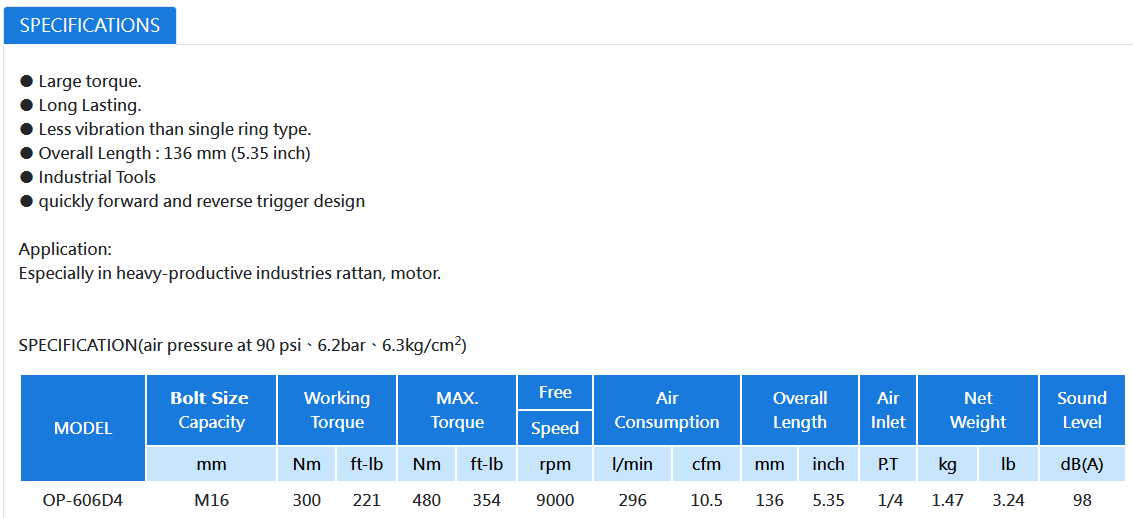

Technical Specifications of Onpin OP-606D4

1. Model: OP-606D4
2. Bolt Size Capacity: M16
3. Working Torque: 300 Nm (221 ft-lb)
4. MAX. Torque: 480 Nm (354 ft-lb)
5. Free Speed: 9000 rpm
6. Air Consumption: 296 l/min (10.5 cfm)
7. Overall Length: 136 mm (5.35 inch)
8. Air Inlet: 1/4 P.T
9. Net Weight: 1.47 kg (3.24 lb)
10. Sound Level: 98 dB(A)
11. Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-606D4

1. Motor & Automotive Industry: Fastening M16 standard bolts on motor assemblies and mechanical drive systems.
2. Heavy-Productive Rattan Industry: Specially designed for heavy-duty furniture and rattan manufacturing assembly lines.
3. General Mechanical Maintenance: Ideal for maintenance workstations requiring compact tool size and fast forward/reverse toggle.
