UCS Series Spiral PU Air Hose – Flexible Polyurethane Coil Tubing with Quick Coupling

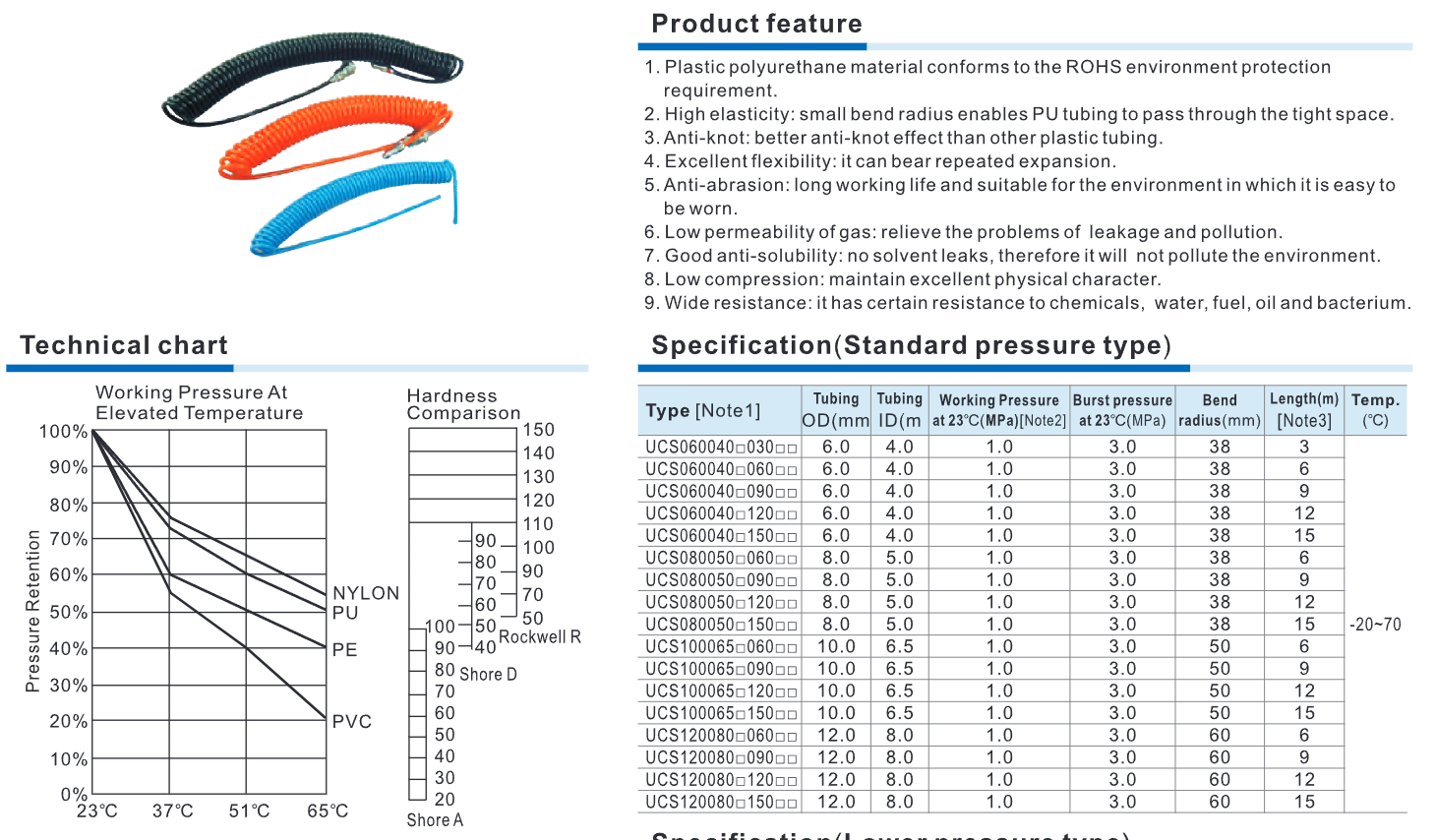

Specification UCS-Series Polyurethane tubing:

Product Overview

1. Spiral PU hose features a coil design that expands and retracts automatically, keeping the workspace organized.
2. It ensures efficient and stable compressed air delivery in dynamic working conditions.

Features and Key Characteristics

1. ROHS-compliant polyurethane material, eco-friendly and safe
2. Coiled design for space-saving and anti-tangling
3. High elasticity, allowing extension and automatic retraction
4. Excellent anti-kink performance, ensuring smooth airflow
5. High abrasion resistance, suitable for continuous use
6. Low gas permeability, reducing air leakage
7. Resistant to chemicals, oil, water, and bacteria
8. Optional quick coupling connections for flexible installation

Technical Specifications

1. Outer diameter (OD): 6 – 12 mm
2. Inner diameter (ID): 4 – 8 mm
3. Working pressure: 0.8 – 1.0 MPa
4. Burst pressure: 2.0 – 3.0 MPa
5. Bend radius: 38 – 60 mm
6. Working length: 3m / 6m / 9m / 12m / 15m
7. Temperature range: -20°C to 70°C
8. Available colors: blue, black, orange, clear, red, yellow, etc.
9. Coupling options: without coupling / male-female / male-male

Advantages

1. Space-saving and easy cable management
2. Durable with long service life
3. Flexible and easy to handle
4. Improves system efficiency by reducing leakage
5. Quick and easy installation

Applications

1. Pneumatic systems in factories
2. Industrial automation and robotics
3. Automotive workshops and garages
4. Production lines and packaging machines
5. Pneumatic tools and equipment
