PA6 & PA12 Nylon Tubing Airtac – Pneumatic Air Hose, High Temperature Resistant, Multiple Sizes & Colors

Specification:

Product Concept

The PA6 & PA12 Nylon Tubing is a high-performance pneumatic air hose designed for industrial air systems. Made from premium nylon material, it provides excellent durability, pressure resistance, and thermal stability, ensuring safe and efficient air transmission.

Product Features and Characteristics

1. High-quality PA6 & PA12 nylon material: Offers high mechanical strength, wear resistance, and long service life.
2. Excellent temperature resistance: Operates efficiently within a wide temperature range (-10°C to 70°C for PA6, -40°C to 70°C for PA12).
3. Wide size range: Outer diameter from Φ4 to Φ12, suitable for various applications.
4. Multiple color options: Blue, black, white, red, yellow… for easy system identification.
5. Low permeability: Ensures stable pressure and minimal air loss.
6. Flexible bending performance: Small bend radius allows easy installation in tight spaces.

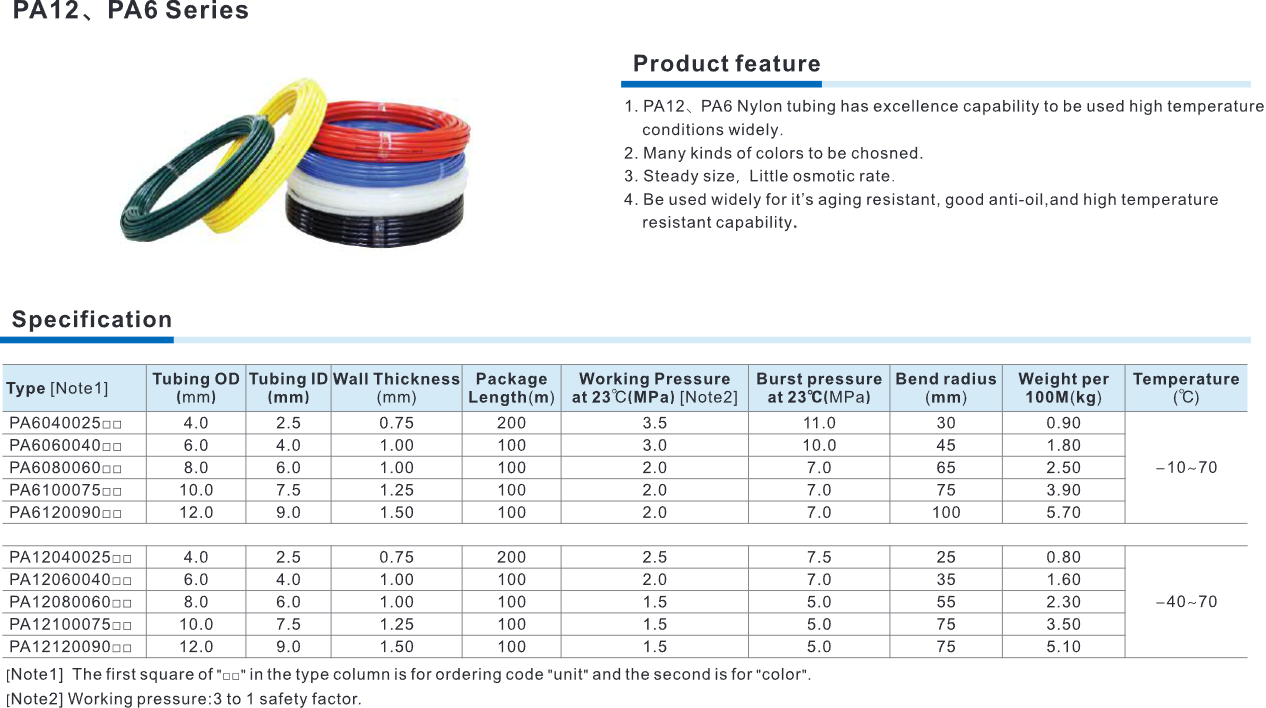

Technical Specifications

1. Material: PA6 / PA12 Nylon
2. Working pressure (23°C): 1.5 ~ 3.5 MPa (depending on size)
3. Burst pressure: Up to 5.0 ~ 11.0 MPa
4. Outer diameter (OD): 4mm – 12mm
5. Inner diameter (ID): 2.5mm – 9mm
6. Coil length: 100m or 200m per roll
7. Working temperature:
8. PA6: -10°C ~ 70°C
9. PA12: -40°C ~ 70°C

Product Advantages

1. High durability and wear resistance
2. Excellent pressure and temperature performance
3. Flexible and easy to install
4. Maintains stable air pressure with minimal leakage
5. Suitable for a wide range of industrial environments

Applications

1. Industrial pneumatic systems: Air compressors, production lines
2. Automation industry: Robotics and pneumatic control systems
3. Automotive & electronics: Air transmission in technical systems
4. Machinery and equipment: Efficient air flow solutions
