UWS98A Double-Layer Flame Resistant Tubing Airtac – Pneumatic Air Hose, Flexible, UL94 V-0, High Durability

Specification:

Product Concept

The UWS98A tubing is a premium double-layer flame-resistant pneumatic hose (UL94 V-0) designed for high-safety applications. It provides reliable air transmission while protecting systems from sparks, heat, and harsh industrial conditions.

Product Features and Characteristics

1. Double-layer structure: Outer protective layer + inner air tube for enhanced durability and safety.
2. UL94 V-0 flame resistance: Self-extinguishing material prevents fire spread caused by sparks.
3. High flexibility: Can bend easily with a small radius, ideal for compact installations.
4. Anti-kink performance: Prevents tube collapse, ensuring stable airflow.
5. Excellent water and wear resistance: Suitable for demanding environments.
6. Removable outer layer: Allows easy maintenance and adjustment.

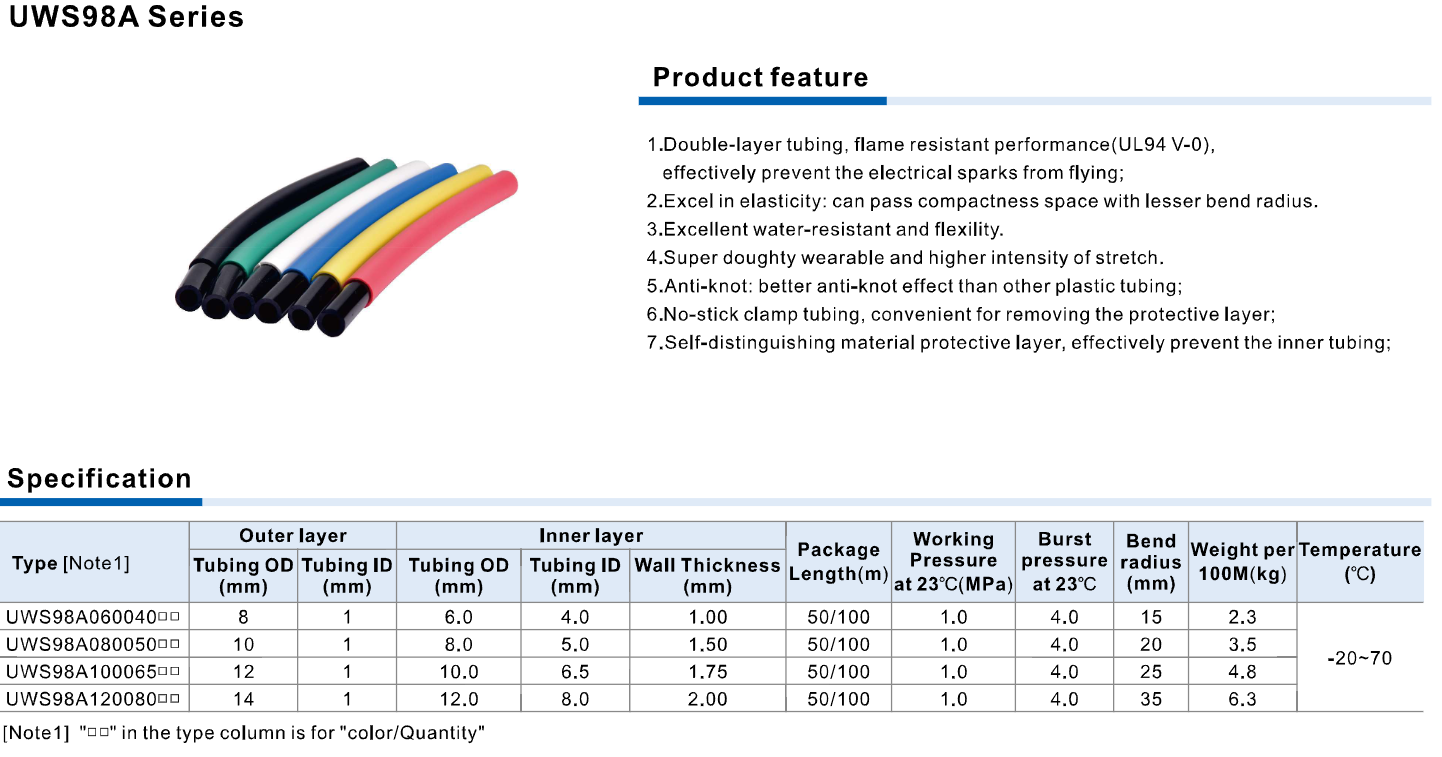

Technical Specifications

1. Material: PU tubing with flame-resistant protective layer
2. Outer diameter (OD): 8mm – 14mm (outer layer)
3. Inner diameter (ID): 4mm – 8mm
4. Working pressure (23°C): 1.0 MPa
5. Burst pressure: 4.0 MPa
6. Coil length: 50m or 100m per roll
7. Working temperature: -20°C to 70°C
8. Bend radius: 15 – 35 mm
9. Colors: Blue, black, white, red, yellow (inner tube is black)

Product Advantages

1. High safety with flame-resistant performance
2. Enhanced durability with double-layer design
3. Anti-kink and wear-resistant
4. Flexible and easy to install
5. Protects systems from sparks and environmental impact

Applications

1. Industrial pneumatic systems: Factories, production lines
2. Spark-risk environments: Welding, metal processing
3. Automation industry: Robotics and pneumatic control
4. Automotive & electronics: High-safety air transmission systems
