/ NEMA 24 (60X60MM) Moons' step motor

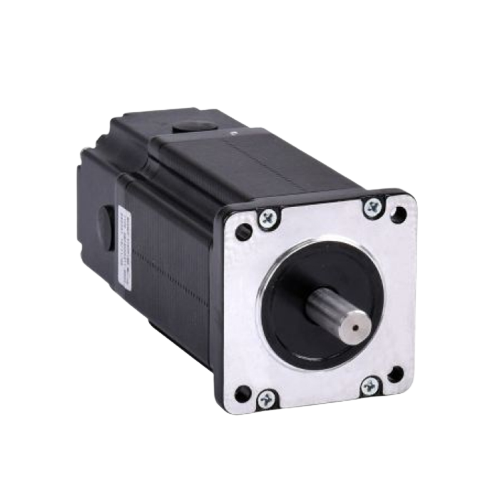

NEMA 24 (60X60MM) Moons' step motor
NEMA 24 (60X60MM) Moons' step motor Suitable for factory automation High torque Long life, low loss Small size, high efficiency Options : Connection wire , Coupling, Dampers. AM series stepper motors with brake are the recommended models for MOONS’ stepper drivers, which have self-locking function when power off. Will be suitable for vertical movement and swing joints. Be widely used in the applications to prevent the potential dangers.
- Tags:
- #Động cơ bước
- # moons
Description
Specification:
Feature:
AM series stepper motors with brake are the recommended models for MOONS’ stepper drivers, which have self-locking function when power off. Will be suitable for vertical movement and swing joints. Be widely used in the applications to prevent the potential dangers.
1. Motion Control Standard Series
2. Size: Motor outside diameter in tenths of an inch (Ex: size 17 = 1.7”)
(6:14mm; 8:20mm; 11:28mm; 14:35mm; 17:42mm; 23:56mm; 24:60mm; 34:86mm; 42:110mm)
3. Series:
HY,HS,HD: step angle 1.8°
4. Length of stator
5. Number of lead wires
0: Connector type
4: 4 lead wires
8: 8 lead wires
6. Electric variation:
variety of current, torque, etc.
7. Mechanical variation:
variety of shaft, lead wires, screws, etc, -E1000D Encoder type, -PGXX Gearbox type, -BR01 Brake type
Link detail product: https://www.moonsindustries.com/series/nema-24-standard-hybrid-stepper-motors-b020107
