/ NEMA 23 (56X56MM) Stepper Motors With Gearbox

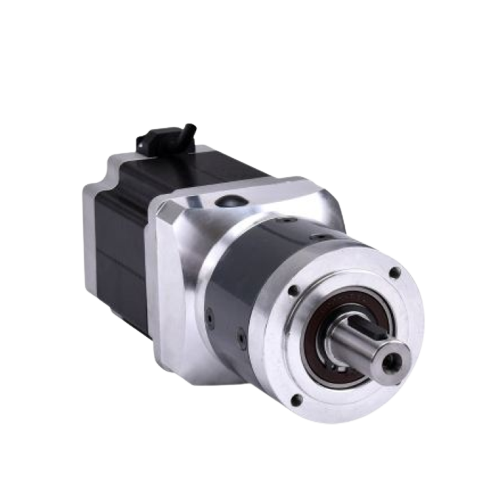

NEMA 23 (56X56MM) Stepper Motors With Gearbox
Price:Contact Jade M-Tech
Category: Step motor Moons'
SKU: NEMA 23 (56X56MM) With Gearbox
NEMA 23 (56X56MM) Stepper Motors With Gearbox High torque Long life, low loss Small size, high efficiency Options : Connection wire, Coupling, Damper
- Tags:
- #AM23HS04B0-PG05
- # AM23HS04B0-PG10
- # AM23HS04B0-PG20
- # AM23HS84B0-PG05
- # AM23HS84B0-PG10
- # AM23HS84B0-PG20
- # AM23HSA4B0-PG05
- # AM23HSA4B0-PG10
- # AM23HSA4B0-PG20
- # moons
Description
Specification:
Feature:
1. Motion Control Standard Series
2. Size: Motor outside diameter in tenths of an inch (Ex: size 17 = 1.7”)
(6:14mm; 8:20mm; 11:28mm; 14:35mm; 17:42mm; 23:56mm; 24:60mm; 34:86mm; 42:110mm)
3. Series:
HY,HS,HD: step angle 1.8°
4. Length of stator
5. Number of lead wires
0: Connector type
4: 4 lead wires
8: 8 lead wires
6. Electric variation:
variety of current, torque, etc.
7. Mechanical variation:
variety of shaft, lead wires, screws, etc, -E1000D Encoder type, -PGXX Gearbox type, -BR01 Brake type
Link detail product: https://www.moonsindustries.com/series/am-series-hybrid-stepper-motors-with-gearbox-a020405
