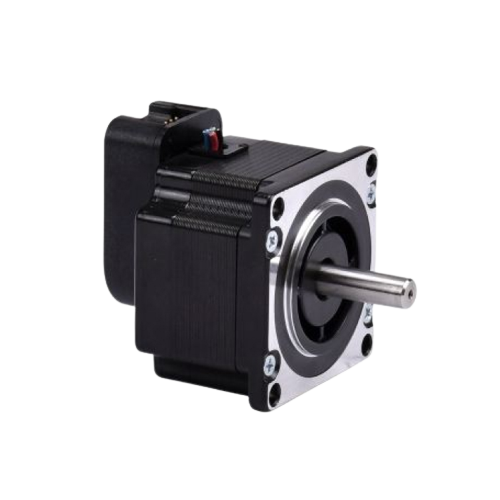

NEMA 23(56X56MM) CÓ ENCODER Moons' step motor
Price:Contact Jade M-Tech
Category: Step motor Moons'
SKU: NEMA 23(56X56MM) CÓ ENCODER
NEMA 23(56X56MM) CÓ ENCODER Moons' step motor High torque Long life, low loss Small size, high efficiency Options : Connection wire, Coupling, Damper
- Tags:
- #AM23HS0420-E1000D
- # AM23HS0421-E1000D
- # AM23HS2449-E1000D
- # AM23HS2450-E1000D
- # AM23HS3454-E1000D
- # AM23HS3455-E1000D
- # moons
Description
Specification:
Feature:
1. Motion Control Standard Series
2. Size: Motor outside diameter in tenths of an inch (Ex: size 17 = 1.7”)
(6:14mm; 8:20mm; 11:28mm; 14:35mm; 17:42mm; 23:56mm; 24:60mm; 34:86mm; 42:110mm)
3. Series:
HY,HS,HD: step angle 1.8°
4. Length of stator
5. Number of lead wires
0: Connector type
4: 4 lead wires
8: 8 lead wires
6. Electric variation:
variety of current, torque, etc.
7. Mechanical variation:
variety of shaft, lead wires, screws, etc, -E1000D Encoder type, -PGXX Gearbox type, -BR01 Brake type
Link detail product: https://www.moonsindustries.com/series/am-series-hybrid-stepper-motors-with-encoder-a020404
