AirTAC 2LA Series Direct Acting Normally Closed Solenoid Valve, 2/2 Way SUS304 Stainless Steel Valve 2LA030 2LA050

Specifications 2LA Series:

Product Overview

1. AirTAC 2LA Series is a 2/2 way normally closed solenoid valve designed for controlling the on/off flow of fluids in industrial systems.
2. The valve operates using direct acting technology, allowing reliable operation even when the system has low or zero pressure.
3. It is suitable for controlling water, steam, oil, and other industrial fluids, making it ideal for automation and fluid control applications.

Features and Characteristics

1. Normally closed 2/2 valve design, ensuring the fluid is blocked when the valve is not energized.
2. Direct acting mechanism provides quick response and stable performance even at low pressure.
3. SUS304 stainless steel body offers excellent corrosion resistance and durability.
4. PTFE (Teflon) seals provide high temperature resistance and reliable sealing performance.
5. IP65 protection coil ensures reliable operation in harsh industrial environments.
6. Class H insulation allows the coil to withstand higher temperatures and extend service life.
7. Compact and lightweight design for easy installation and maintenance.

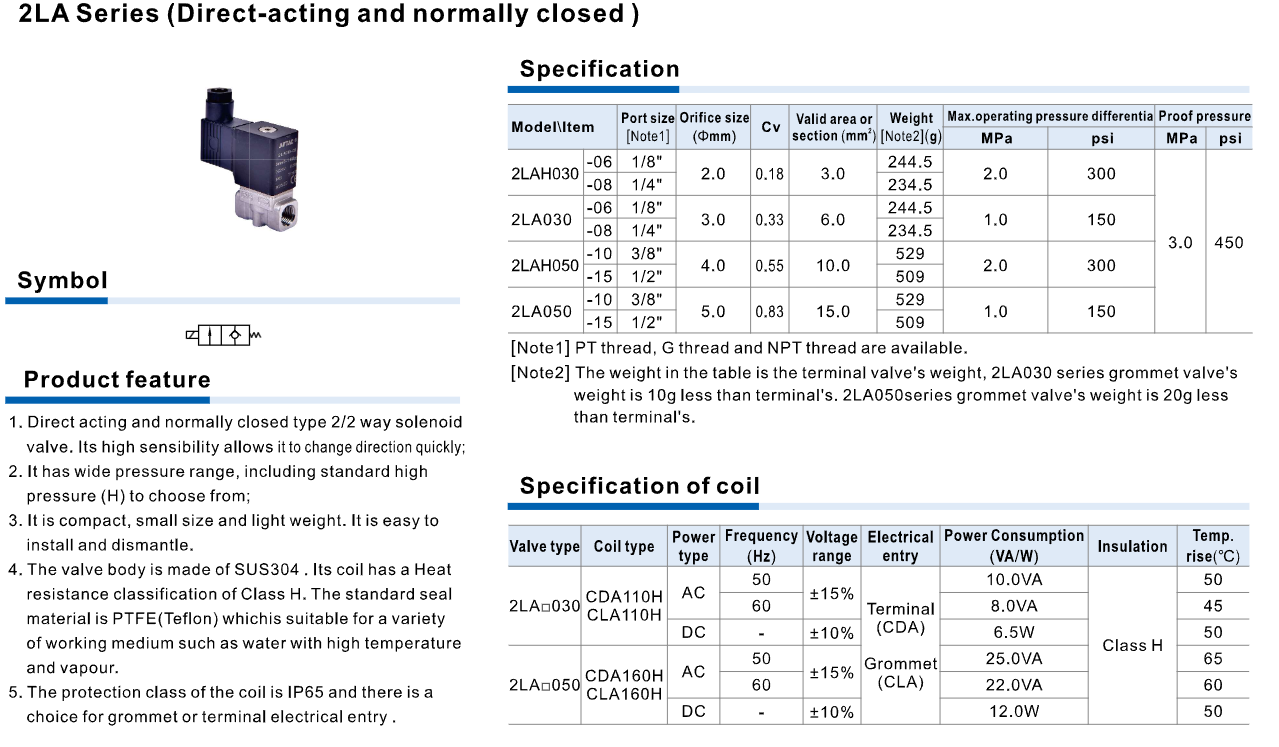

Technical Specifications

1. Series: AirTAC 2LA Series
2. Valve type: 2 ports 2 positions solenoid valve
3. Operation type: Direct Acting
4. Initial state: Normally Closed (NC)
5. Working medium: Water, steam, oil
6. Orifice size: 2 mm, 3 mm, 4 mm, 5 mm
7. Port size:
8. 1/8"
9. 1/4"
10. 3/8"
11. 1/2"
12. Maximum operating pressure:
13. 030 Series: 1.0 MPa (150 psi)
14. 050 Series: 1.0 MPa (150 psi)
15. High pressure type: 2.0 MPa (300 psi)
16. Proof pressure: 3.0 MPa (450 psi)
17. Body material: SUS304 Stainless Steel
18. Seal material: PTFE (Teflon)
19. Coil voltage: AC220V, AC110V, AC24V, DC24V, DC12V
20. Thread type: PT, G, or NPT.

Product Advantages

1. Stable operation even at zero pressure due to the direct acting design.
2. Durable SUS304 stainless steel construction with corrosion resistance.
3. Excellent sealing performance to prevent fluid leakage.
4. Compact design for easy installation in various systems.
5. Long service life and low maintenance cost.

Applications

1. Water and steam control systems in industrial plants.
2. Industrial automation and machinery equipment.
3. Used in water treatment systems and production lines.
4. Suitable for food processing, textile, chemical, and manufacturing industries.
5. Ideal for industrial fluid control and automation systems.
