2LA Series 2/2 Way Solenoid Valve – Normally Closed Internally Piloted Valve for Water and Steam Systems

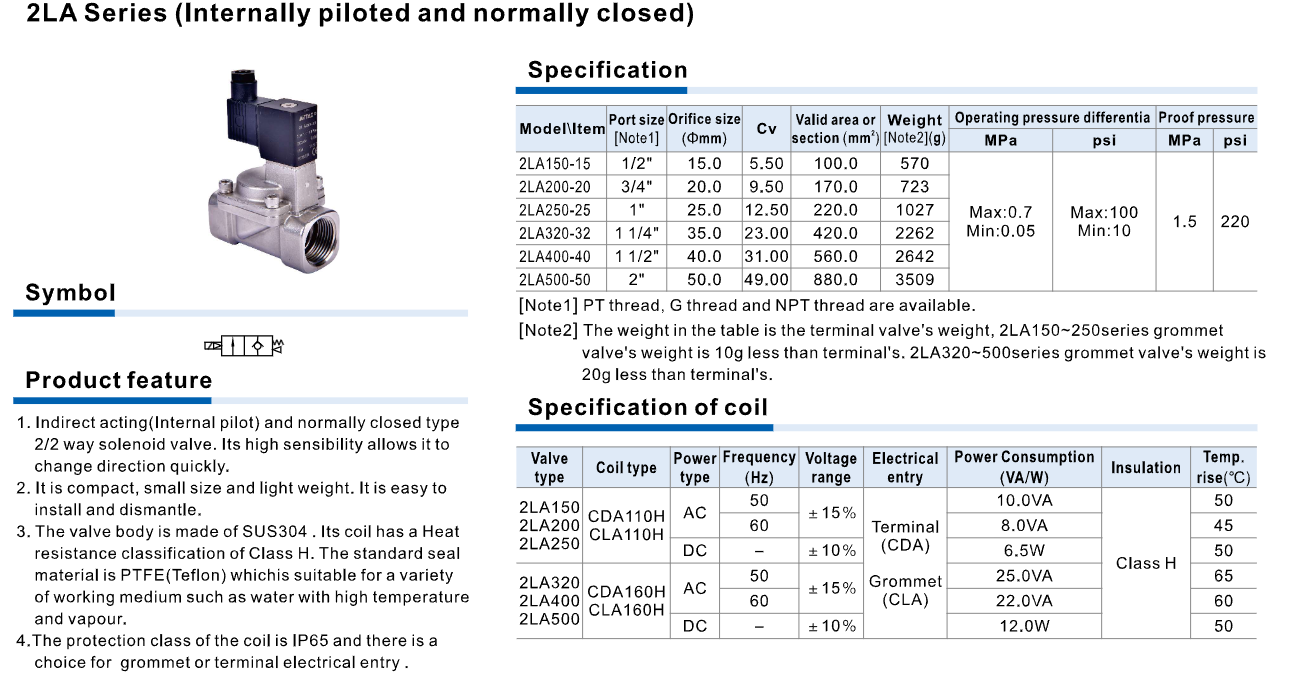

Specification 2LA (Internally piloted):

Product Overview

The 2LA Series solenoid valve is a 2/2 way normally closed valve designed with an internally piloted operating mechanism to control the flow of fluids such as water, steam, and other industrial media. When the coil is energized, the electromagnetic force activates the internal pilot system, allowing the valve to open quickly and operate smoothly.

The valve body is made from SUS304 stainless steel and equipped with a PTFE high-temperature seal, ensuring excellent durability and resistance in high-temperature or high-pressure environments. With its compact structure, high sensitivity operation, and IP65 protection rating, the valve is widely used in many industrial automation systems.

Key Features and Characteristics

1. Internally piloted operation for fast and stable valve switching.
2. 2/2 way normally closed design ensures safety when power is lost.
3. Valve body made of corrosion-resistant SUS304 stainless steel.
4. PTFE (Teflon) sealing material suitable for high-temperature fluids.
5. Class H coil insulation for reliable and long-lasting performance.
6. IP65 protection rating for dustproof and waterproof protection.
7. Compact and lightweight design for easy installation and maintenance.
8. Available connection threads: PT, G, and NPT.

Technical Specifications

1. Product Series: 2LA Series
2. Valve Type: 2/2 Way Normally Closed Solenoid Valve
3. Operating Principle: Internal Pilot
4. Port Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
5. Orifice Size: 15 mm – 50 mm
6. Operating Pressure: 0.05 – 0.7 MPa
7. Proof Pressure: 1.5 MPa
8. Body Material: SUS304 Stainless Steel
9. Seal Material: PTFE (Teflon)
10. Voltage Options: AC220V, AC110V, AC24V, DC24V, DC12V
11. Frequency: 50 / 60 Hz
12. Coil Protection: IP65
13. Insulation Class: Class H
14. Electrical Entry: Terminal or Grommet
15. Thread Type: PT / G / NPT

Advantages

1. High response sensitivity for fast system control.
2. Excellent durability thanks to SUS304 stainless steel construction.
3. High temperature and pressure resistance with PTFE sealing.
4. Energy-efficient operation through internal pilot design.
5. Easy installation and maintenance due to compact structure.
6. Available in multiple sizes and voltage options for various systems.

Applications

1. Industrial water supply systems
2. Steam and boiler control systems
3. Water treatment and filtration systems
4. Automated production lines
5. Fluid control in manufacturing plants
6. Applications in food processing, textile, and chemical industries.
