2KLA Series 2/2 Way Solenoid Valve – Normally Open Direct Acting Valve for Water and Steam Systems

Specifications 2KLA Series:

Product Overview of 2KLA Series Solenoid Valve

The 2KLA Series solenoid valve is a 2/2 way normally open valve designed with a direct-acting mechanism to control the flow of fluids such as water, steam, and other industrial media. With its direct acting structure, the valve can operate efficiently even at very low or zero pressure, ensuring reliable fluid control in various industrial systems.

The valve body is made from SUS304 stainless steel, combined with a PTFE (Teflon) sealing material that provides excellent resistance to heat and corrosion. Thanks to its compact design, fast response, and IP65 coil protection, the 2KLA Series solenoid valve is widely used in industrial automation and fluid control applications.

Key Features and Characteristics

1. Direct acting mechanism allows operation even at low or zero pressure.
2. 2/2 way normally open design ensures continuous flow when power is off.
3. Valve body made from corrosion-resistant SUS304 stainless steel.
4. PTFE (Teflon) seal suitable for hot water and steam applications.
5. Compact and lightweight structure for easy installation and maintenance.
6. Class H coil insulation ensures long-term stable performance.
7. IP65 protection rating provides excellent dust and water resistance.
8. Optional Terminal or Grommet electrical entry.
9. Available thread types: PT, G, and NPT.

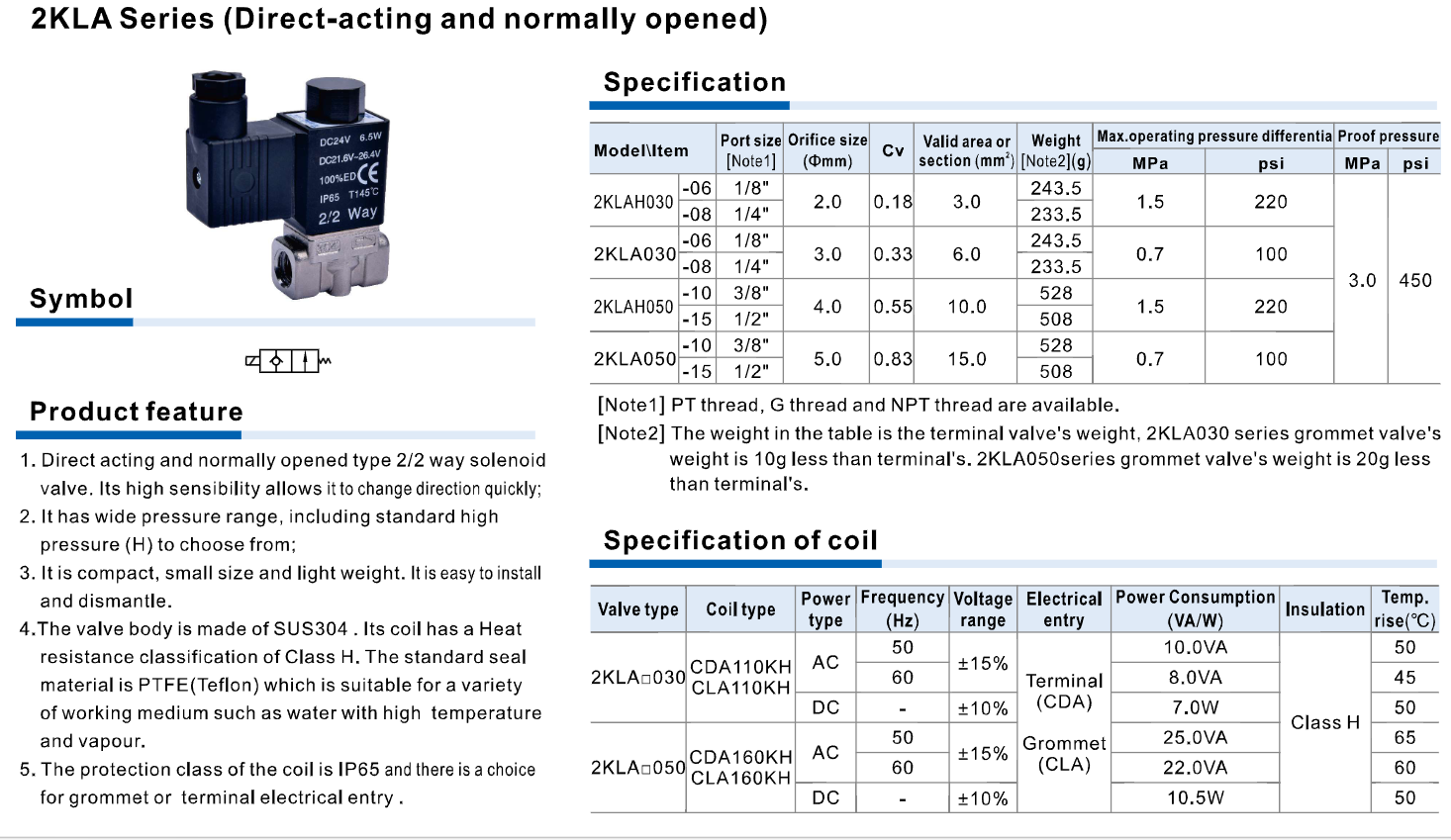

Technical Specifications

1. Product Series: 2KLA Series
2. Valve Type: 2/2 Way Normally Open Solenoid Valve
3. Operating Principle: Direct Acting
4. Port Size: 1/8", 1/4", 3/8", 1/2"
5. Orifice Size: 2 mm – 5 mm
6. Max Operating Pressure: 0.7 MPa – 1.5 MPa
7. Proof Pressure: 3.0 MPa
8. Body Material: SUS304 Stainless Steel
9. Seal Material: PTFE (Teflon)
10. Voltage Options: AC220V, AC110V, AC24V, DC24V, DC12V
11. Frequency: 50 / 60 Hz
12. Coil Protection: IP65
13. Insulation Class: Class H
14. Electrical Entry: Terminal or Grommet
15. Thread Type: PT / G / NPT

Advantages of 2KLA Series Solenoid Valve

1. Stable operation at low pressure thanks to direct acting design.
2. High durability with SUS304 stainless steel body.
3. Excellent heat resistance using PTFE sealing material.
4. Fast response and high sensitivity for precise fluid control.
5. Compact structure saves installation space.
6. Available in multiple sizes and voltage options for different systems.

Applications

1. Industrial water supply systems
2. Steam and boiler control systems
3. Water treatment and filtration systems
4. Automated production lines
5. Fluid control systems in factories
6. Applications in food processing, textile, and chemical industries
