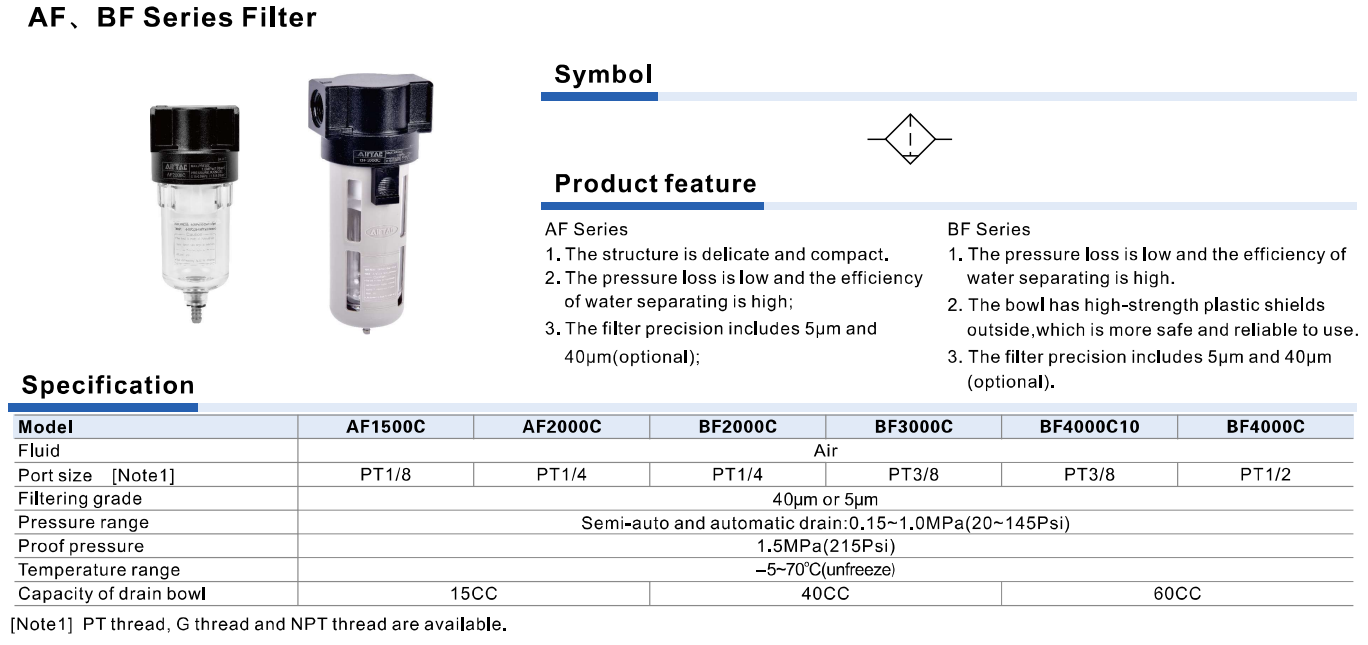

AF,BF line filters

Product Feature

AF series

1.The structure is delicate and compact.

2.The pressure loss is low and the efficiency of water separating is high;

3.The filter precision includes 5μm and 40μm (optional);

BF series

1.The pressure loss is low and the efficiency of water separating is high.

2.The bowl has highstrength plastic shields outside which is more safe and reliable to use.

3.The filter precision includes 5μm and 40μm (optional).

Installation & Usage

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working pressure” and “applied temperature range”).

4.The medium used or installation environment shall be noticed. The matters with chlorine carbon compound aromatic compound and oxidizing acid and alkali shall be avoided to prevent the damage of bowl and oil bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.

Applications in heavy and light industry:

In heavy industry:

Used in heavy industrial plants such as cement factories, iron and steel factories, plastic injection factories, stainless steel factories.

In light industry:

compressed air systems of electronic parts factories such as Samsung, Canon, LG, laboratory equipment, automobile and motorbike factories such as Honda, Toyota, Vinfast...
