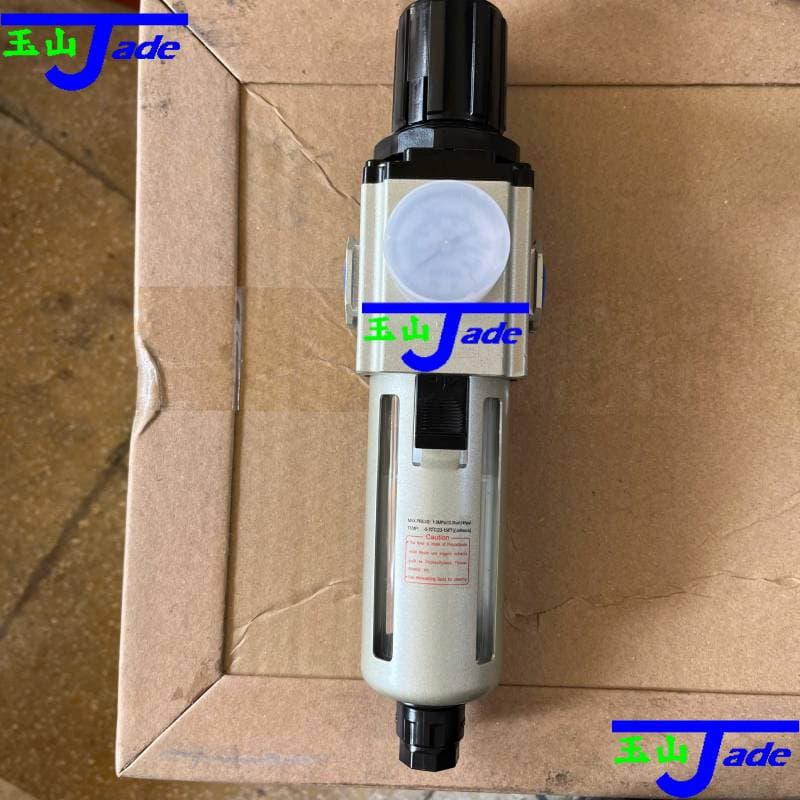

GAFR Series filter & regulator

1.Circular square pressure gauge which with clip and magnifier is used to save installation space.

2.The pressedin selflocking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.Balanced design is adopted for the pressure adjustment mechanism.

4.Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.

5.The filtering grade includes 5μm and 40μm (optional).

6.Two drain types are available: semiauto drain and automatic drain.

7.Three material of bowl are available: PC Nylon and metal.

8.The bracket can be ed for installation.

The GAFR compressor is a simple filter line with the main function: filtering dust and steam + pressurizing

Maximum application: 10 kg/cm2

Adjustable pressure: 0.5 – 8 kg/cm2

Operating temperature: -5~70oC

Manufacturer: AIRTAC (Taiwan)

Product specialties

Quick and sturdy installation makes it convenient during installation and use.

Reliable adjustment tool performance with high precision.

High dehumidification and block efficiency.

There are two types of drains: semi-automatic manual flushing and automatic draining.

There are three materials: PC, Metal and Nylon.

This pneumatic compressor is a combination of a duo consisting of: GAFR (Single filter + Pressure regulator) + GAL (Oil supply or lubrication unit) forming a Double Filter.
