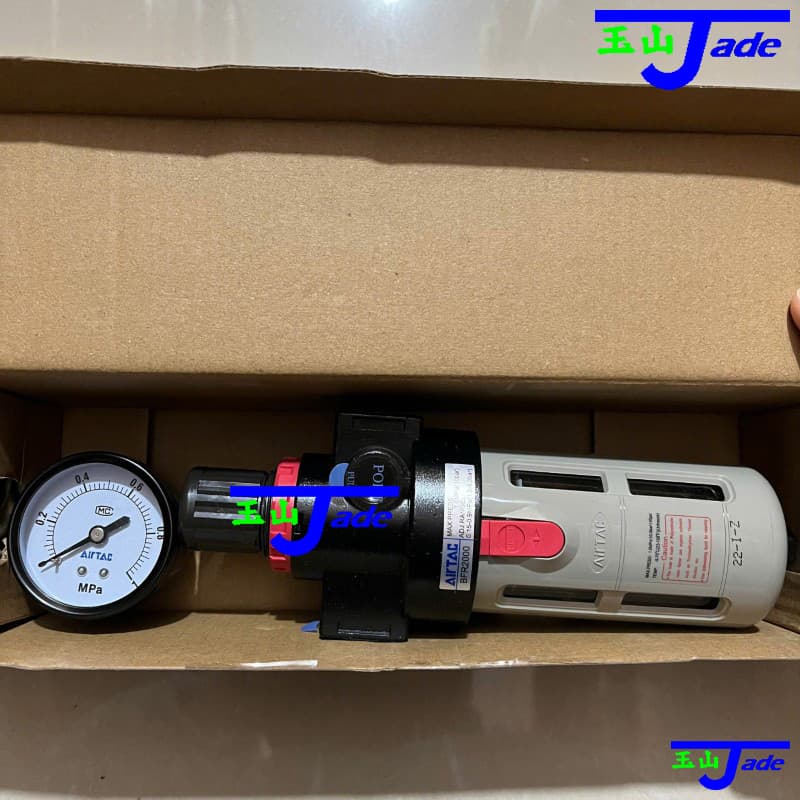

AirTAC AFR / BFR Series Pneumatic Filter Regulator

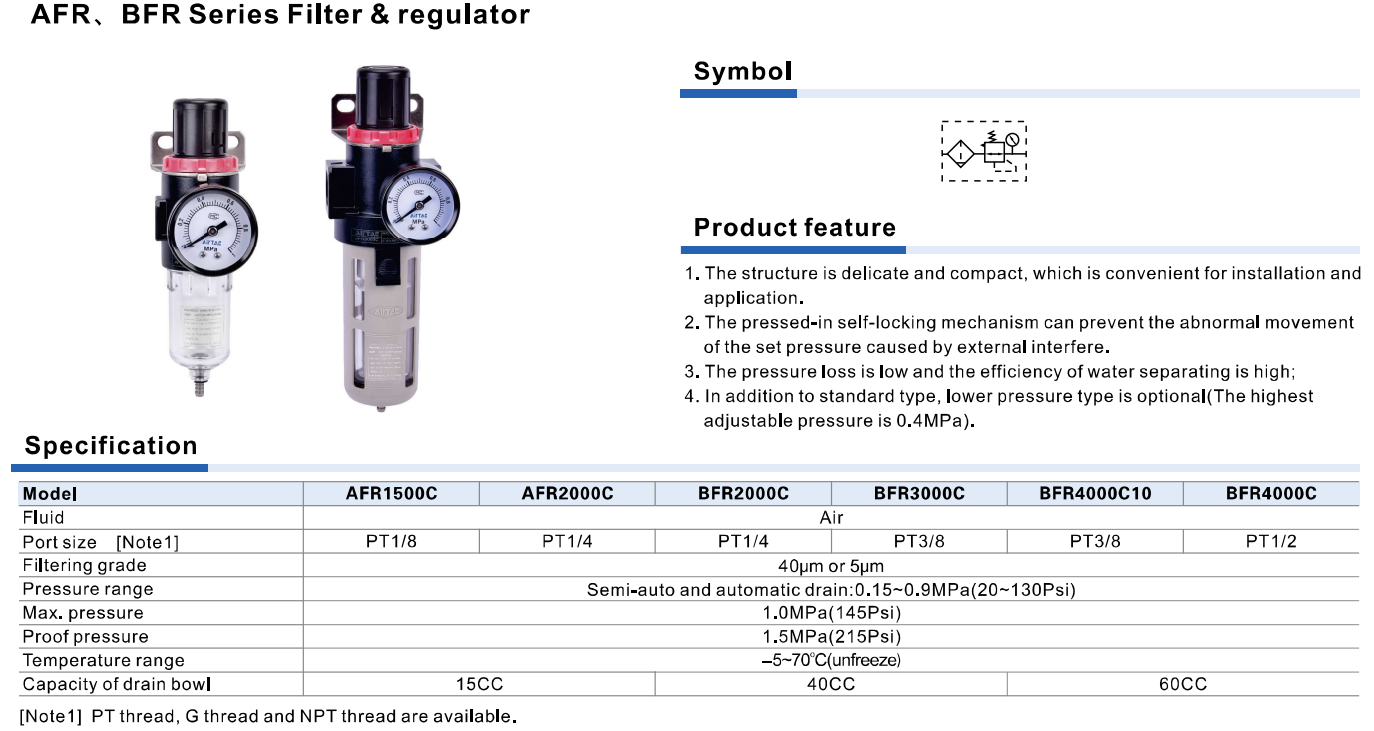

Specification:

Product Overview

The AFR / BFR Series filter regulator features a compact and durable structure that is easy to install and suitable for various compressed air systems. With efficient water separation and precise pressure regulation, it provides reliable air preparation for downstream pneumatic components.

Key Features

1. Integrated air filter and pressure regulator in a single unit
2. Compact and space-saving design for easy installation
3. Self-locking pressure adjustment knob prevents accidental pressure changes
4. Low pressure loss with high water separation efficiency
5. Optional low-pressure type available to meet different application requirements

Technical Highlights

1. Filtering grade: 40μm or 5μm
2. Pressure adjustment range: 0.15 – 0.9 MPa (20 – 130 psi)
3. Maximum operating pressure: 1.0 MPa (145 psi)
4. Proof pressure: 1.5 MPa (215 psi)
5. Operating temperature range: –5 to 70°C

Available Models

1. AFR1500C
2. AFR2000C
3. BFR2000C
4. BFR3000C
5. BFR4000C10
6. BFR4000C

Applications

1. Industrial compressed air systems
2. Pneumatic automation equipment
3. Manufacturing and assembly lines
4. Packaging and processing machinery

Why Choose AirTAC AFR / BFR Series

AirTAC AFR / BFR Series filter regulators deliver stable pressure control, effective air filtration, and long service life. Their reliable performance and flexible installation options make them an ideal solution for improving the efficiency and durability of pneumatic systems.
