What is an Integrated CPV Solenoid Valve?

Introduction to CPV Integrated Solenoid Valves

The CPV integrated solenoid valve is a ready-to-use valve system with a built-in manifold and air connections, designed to simplify installation and reduce additional accessories.

Key benefits include:

1. Compact installation and space-saving
2. Reduced wiring and tubing complexity
3. Easier maintenance and expansion

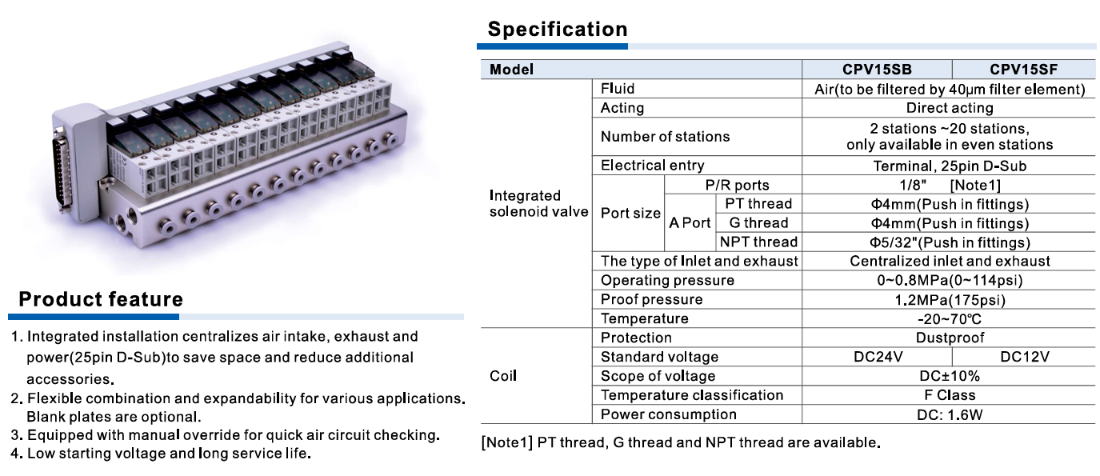

Popular series include CPV10S (4–24 stations) and CPV15S (2–20 stations) .

Structure and Features of CPV Valves

1. Integrated Manifold Base

1. Combines air inlet and exhaust channels to reduce tubing and fittings
2. Blank plates are available for unused stations

2. CPV Solenoid Valve Unit

1. 3/2-way or 5/2-way operation
2. DC12V or DC24V standard voltage
3. Direct-acting design for immediate response
4. Equipped with manual override for quick testing

3. Blank Plate (Optional)

1. Seals unused valve positions
2. Includes gasket and screws
3. Enables future expansion without replacing the base

4. Key Advantages

1. Compact design saves space
2. Reduces accessory costs and installation time
3. Minimizes coil miswiring and air leakage
4. Simplifies maintenance and future expansion

When to Use an Integrated CPV Solenoid Valve

1. Systems with Multiple Valves

1. Suitable for 2–20 valves in one assembly
2. Individual valves in complex systems can cause wiring chaos, air leaks, and maintenance difficulty
3. CPV integration centralizes all valves in a single compact assembly

2. Automated Production Lines

1. Packaging lines, robotic pick-and-place systems, and assembly lines
2. Speeds up installation and standardizes PLC control
3. Modular design allows testing and expansion per module

3. When Space and Accessories Need Optimization

1. Reduces tubing and fittings
2. Fits neatly in control cabinets or compact machines

Conclusion

Integrated CPV solenoid valves are an optimal solution for modern industrial pneumatic systems, especially when you need:

1. Multiple valves in one assembly
2. Space-saving compact installation
3. Reduced accessory and installation costs
4. Easier maintenance and system expansion

👉 CPV series valves have become a standard choice for automated production lines and industrial pneumatic systems .
