/ MU Mini Pneumatic Cylinder – Compact Free Mount Double & Single Acting Cylinder
MU Mini Pneumatic Cylinder – Compact Free Mount Double & Single Acting Cylinder
The MU Series pneumatic cylinder is a compact free-mount cylinder available in both double-acting and single-acting (push) types, allowing flexible multi-direction installation. Featuring a durable anodized body and optional magnetic sensing, it ensures reliable performance in space-limited automation systems. Available in bore sizes from 4–20mm with various stroke options.
- MU
- MSU
- MU4x4
- MU4x6
- MU4x8
- MU4x10
- MU4x15
- MU4x20
- MU6x4
- MU6x6
- MU6x8
- MU6x10
- MU6x15
- MU6x20
- MU6x25
- MU6x30
- MU8x4
- MU8x6
- MU8x8
- MU8x10
- MU8x15
- MU8x20
- MU8x25
- MU8x30
- MU10x4
- MU10x6
- MU10x8
- MU10x10
- MU10x15
- MU10x20
- MU10x25
- MU10x30
- MU12x5
- MU12x10
- MU12x15
- MU12x20
- MU12x25
- MU12x30
- MU12x35
- MU12x40
- MU12x45
- MU12x50
- MU16x5
- MU16x10
- MU16x15
- MU16x20
- MU16x25
- MU16x30
- MU16x35
- MU16x40
- MU16x45
- MU16x50
- MU20x5
- MU20x10
- MU20x15
- MU20x20
- MU20x25
- MU20x30
- MU20x35
- MU20x40
- MU20x45
- MU20x50
- MSU4x4
- MSU4x6
- MSU6x4
- MSU6x6
- MSU6x8
- MSU8x4
- MSU8x6
- MSU8x8
- MSU10x4
- MSU10x6
- MSU10x8
- MSU12x5
- MSU12x10
- MSU16x5
- MSU16x10
- MSU20x5
- MSU20x10
- MU12x10S
- MU12x10B
- MSU12x10S
- MSU12x10B
- mini pneumatic cylinder MU
- compact free mount cylinder
- Airtac MU cylinder
- double acting mini cylinder
- small air cylinder
Design file download links:
Other fileRAR filePDF fileDescription

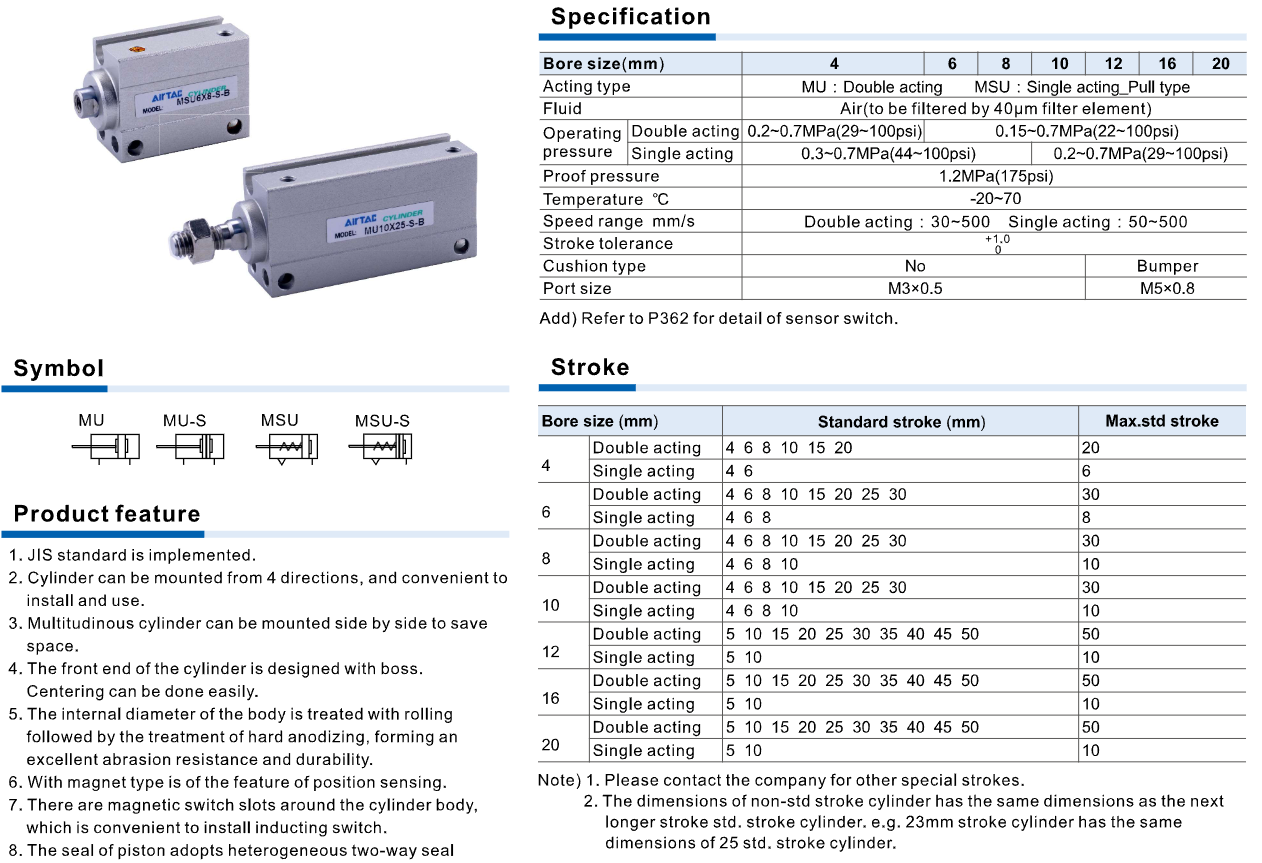

Specification MU:
Product Overview
The MU Series pneumatic cylinder is a compact free-mount mini cylinder designed for flexible installation without fixed mounting brackets. It is available in both double-acting (MU) and single-acting (MSU – push type) configurations, making it suitable for various automation applications requiring precision and compact design.
Features and Characteristics
- Compact cube design for space-saving installation
- Can be mounted from multiple directions (4 sides) for flexible system design
- Body treated with hard anodizing for excellent wear resistance
- Front rod design allows easy and accurate centering
- Built-in magnetic switch slots for sensor installation (optional magnet)
- Dual sealing structure ensures better lubrication retention and durability
- Suitable for multi-cylinder integration in limited spaces
Technical Specifications
- Type:
- MU: Double acting
- MSU: Single acting (push type)
- Fluid: Filtered air (40µm filtration)
- Operating pressure:
- Double acting: 0.2 ~ 0.7 MPa (29 ~ 100 psi)
- Single acting: 0.2 ~ 0.7 MPa / up to 0.3 ~ 0.7 MPa depending on bore size
- Proof pressure: 1.2 MPa (175 psi)
- Temperature range: -20 ~ 70°C
- Speed range:
- Double acting: 30 ~ 500 mm/s
- Single acting: 50 ~ 500 mm/s
- Bore size: 4, 6, 8, 10, 12, 16, 20 mm
- Stroke range: 4 ~ 50 mm
- Stroke tolerance: +1.0 mm
- Cushion type: None / Bumper
- Port size: M3×0.5, M5×0.8
Advantages
- Highly flexible installation without mounting brackets
- Durable structure with strong wear resistance
- High precision performance for positioning tasks
- Optional magnet for easy sensor integration
- Stable operation with long service life
- Ideal for compact systems with multiple cylinders
Applications
- Industrial automation systems
- Electronics assembly machines
- Packaging and labeling equipment
- Clamping, pushing, and positioning mechanisms
- Applications requiring flexible mounting and compact design
