MPG Compact Pneumatic Cylinder – High Precision Mini Air Cylinder with Magnet Option

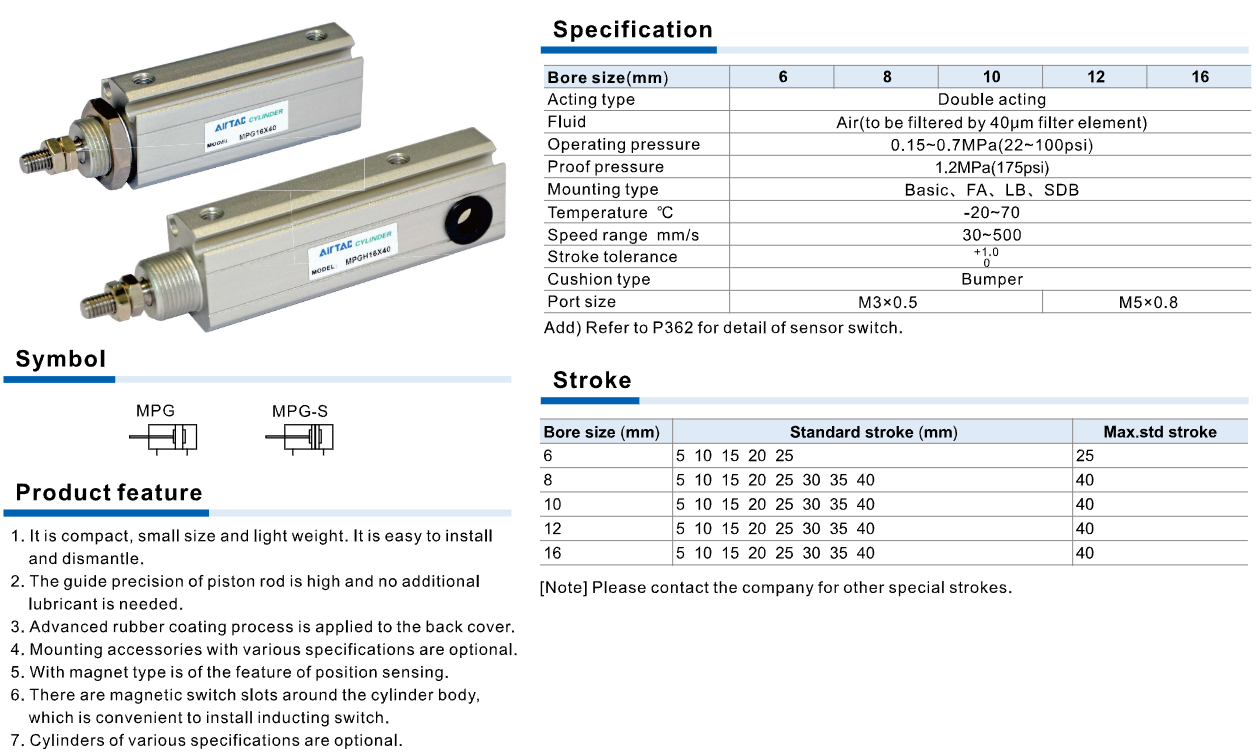

Specification MPG:Product Overview

The MPG pneumatic cylinder is a compact mini air cylinder designed for space-saving installations. It operates using compressed air to generate linear motion and features a double-acting mechanism, enabling precise bidirectional control for automation systems with limited installation space.

Features and Characteristics

1. Compact and lightweight design for easy installation in tight spaces
2. Aluminum alloy body ensures durability and corrosion resistance
3. High precision piston rod for stable operation without lubrication
4. Built-in magnetic switch slots for easy sensor installation
5. Rubber bumper cushioning reduces impact and extends service life
6. Multiple mounting options: Basic, FA, LB, SDB

Technical Specifications

1. Type: Double acting
2. Fluid: Filtered air (40µm filtration)
3. Operating pressure: 0.15 ~ 0.7 MPa (22 ~ 100 psi)
4. Proof pressure: 1.2 MPa (175 psi)
5. Temperature range: -20 ~ 70°C
6. Speed range: 30 ~ 500 mm/s
7. Bore size: 6, 8, 10, 12, 16 mm
8. Stroke range: 5 ~ 40 mm
9. Stroke tolerance: +1.0 mm
10. Port size: M3×0.5, M5×0.8
11. Cushion type: Bumper

Advantages

1. High precision and stable performance
2. No lubrication required, reducing maintenance costs
3. Durable structure with long service life
4. Easy integration into automation systems
5. Optional magnet for position sensing

Applications

1. Industrial automation systems
2. Electronics assembly lines
3. Packaging, printing, and labeling machines
4. Medical and precision machinery
5. Applications requiring compact size and high accuracy
