Onpin OP-915DA Air Impact Wrench - M24~M27, Max Torque 2000Nm, 3800rpm, Heavy Duty

Specification OP-915DA

The Onpin OP-915DA air impact wrench is a heavy-duty industrial pneumatic bolting tool engineered for extreme-load fastening applications. Operating at a standard working air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it generates high impact torque to rapidly, accurately, and safely secure or loosen fasteners ranging from M24 to M27 bolt sizes.

Key Features of Onpin OP-915DA

1. Extreme Torque Capability: Delivers a working torque of 1300 Nm and a maximum output torque of 2000 Nm, perfectly suited for heavy M24~M27 bolt applications.
2. Optimal Speed & Efficiency: Runs at a free speed of 3800 rpm with an air consumption of 410 l/min (14.5 cfm) for fast operational cycles.
3. Controlled Sound Level: Operates at a reduced noise level of 85 dB(A), improving the working environment in industrial workshops.
4. Extended Solid Profile: Features an overall length of 270 mm (10.63 inch) and a net weight of 6.2 kg (13.67 lb), ensuring stable handling during high-torque operations.

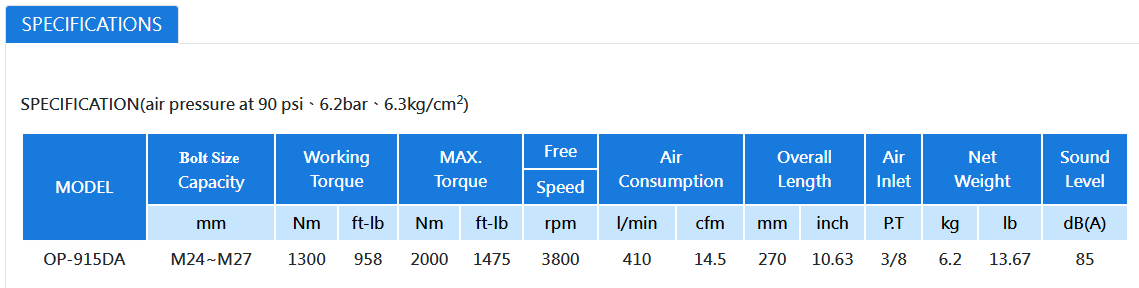

Technical Specifications of Onpin OP-915DA

1. Model: OP-915DA
2. Bolt Size Capacity: M24~M27
3. Working Torque: 1300 Nm (958 ft-lb)
4. MAX. Torque: 2000 Nm (1475 ft-lb)
5. Free Speed: 3800 rpm
6. Air Consumption: 410 l/min (14.5 cfm)
7. Overall Length: 270 mm (10.63 inch)
8. Air Inlet: 3/8 P.T
9. Net Weight: 6.2 kg (13.67 lb)
10. Sound Level: 85 dB(A)
11. Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-915DA

1. Heavy Machinery & Structural Assembly: Fastening M24~M27 bolts on heavy structural steel, machinery chassis, and large mechanical frames.
2. Industrial Maintenance & Repair: Essential for servicing heavy-duty trucks, construction equipment, and industrial plant machinery.
3. Mechanical Construction Projects: Applied in heavy assembly lines demanding extreme torque accuracy and reliable pneumatic performance.
