Onpin OP-SB03 Spring Balancer - Capacity 2.0-3.0kg, Stroke 160cm
The Onpin OP-SB03 spring balancer is designed to reduce the weight load on operators when using tools in assembly line environments. It features a maximum suspending capacity of 2.0 – 3.0 kg (4.4 – 6.6 lb), a maximum stroke of 160 cm, a net weight of 0.56 kg (1.23 lb), and a cable diameter of 1.8 mm. By adjusting the balancer's tension to counteract the tool's weight, it allows effortless handling, keeps workstations organized, prevents tools from falling or being damaged, and improves overall efficiency and safety.
- OP-SB03
- SB03
- 03-302-01
- 06-702-31
- 08-700-05
- 13-701-03
- 13-701-15
- 13-701-17
- 18-303-03
- 18-306-01
- 21-301-01
- 31-700-01
- 31-701-01
- 31-704-01
- 31-799-01
- 39-700-01
- 51-301-02
- 51-302-03
- 51-803-01
- 52-710-01
- 77-310-01
- 77-310-02
- 77-610-02
- spring balancer
- tool balancer
- Onpin spring balancer
- assembly line tool hanger
- industrial tool balancer
Design file download links:
PDF fileDescription
Specification OP-SB03
The Onpin OP-SB03 spring balancer is a dedicated load-support device designed to reduce operator fatigue in industrial environments. It works by adjusting spring tension to counteract the weight of suspended tools, enabling effortless movement, keeping workstations organized, and preventing tool damage.
Key Features of Onpin OP-SB03
- Weight Load Reduction: Spring tension precisely counteracts tool weight, allowing operators to handle equipment effortlessly.
- Enhanced Safety & Efficiency: Keeps assembly line stations organized, prevents tools from falling or getting damaged, and improves overall workflow efficiency.
- Durable Cable Construction: Equipped with a rugged Material Cable featuring a 1.8 mm cable diameter for reliable daily operation.
- Compact & Lightweight: Net weight of only 0.56 kg (1.23 lb), making it easy to mount on overhead rails or assembly benches.

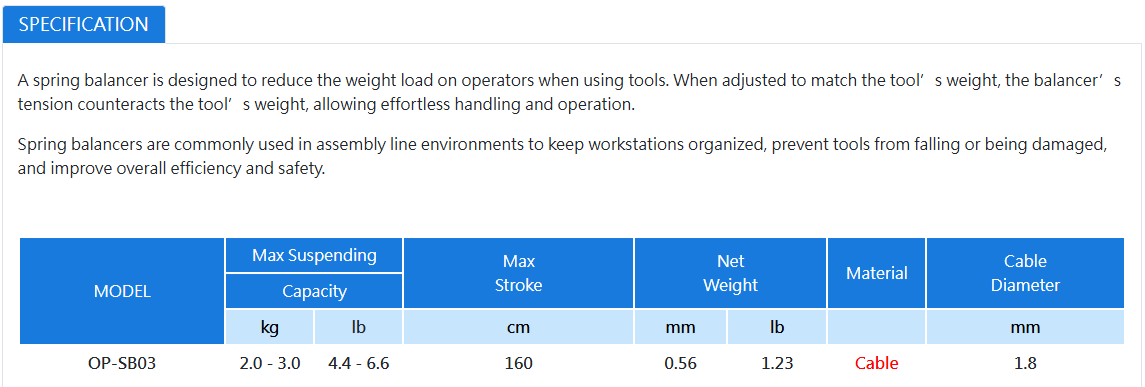

Technical Specifications of Onpin OP-SB03
- Model: OP-SB03 / SB03
- Max Suspending Capacity: 2.0 - 3.0 kg (4.4 - 6.6 lb)
- Max Stroke: 160 cm
- Net Weight: 0.56 kg (1.23 lb)
- Cable Material: Cable
- Cable Diameter: 1.8 mm
Industrial Applications of Onpin OP-SB03
- Assembly Lines: Suspending light-to-medium assembly tools such as electric screwdrivers, pneumatic nut runners, and rivet guns.
- Electronics & Appliance Manufacturing: Assisting operators in repetitive overhead or workstation tasks to minimize physical strain.
- Light Hardware & Workshop Fabrication: Keeping tools suspended at convenient working heights to prevent accidental drops and tool wear.
