Onpin OP-SB01 Spring Balancer - Capacity 0.5-1.2kg, Stroke 160cm
Onpin OP-SB01 Spring Balancer - Capacity 0.5-1.2kg, Stroke 160cm
Onpin OP-SB01 Spring Balancer - Capacity 0.5-1.2kg, Stroke 160cm
Onpin OP-SB01 Spring Balancer - Capacity 0.5-1.2kg, Stroke 160cm

Onpin OP-SB01 Spring Balancer - Capacity 0.5-1.2kg, Stroke 160cm

Price:Contact Jade M-Tech
Category: Air Body Tool
SKU: OP-SB01

The Onpin OP-SB01 spring balancer is designed to reduce weight load on operators when using tools in assembly line environments. It features a maximum suspending capacity of 0.5 – 1.2 kg (1.1 – 2.6 lb), a maximum stroke of 160 cm, a net weight of 0.56 kg (1.23 lb), and an 1.8 mm diameter cable. By counteracting the tool's weight through spring tension, it enables effortless handling, keeps workstations organized, prevents tool damage, and improves overall operational efficiency.

OP-SB01 Series Models & Sizes:
  • OP-SB01
  • SB01
  • 03-302-01
  • 06-702-31
  • 08-700-03
  • 13-701-03
  • 13-701-15
  • 13-701-17
  • 18-303-03
  • 18-306-01
  • 21-301-01
  • 31-700-01
  • 31-701-01
  • 31-704-01
  • 31-799-01
  • 39-700-01
  • 51-301-02
  • 51-302-03
  • 51-803-01
  • 52-710-01
  • 77-310-01
  • 77-310-02
  • 77-610-02
  • spring balancer
  • tool balancer
  • Onpin spring balancer
  • assembly line tool hanger
  • industrial tool balancer
Show more

Design file download links:

PDF file
** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).

Description

Specification OP-SB01

The Onpin OP-SB01 spring balancer is a dedicated load-support device designed to reduce operator fatigue in industrial environments. It works by adjusting spring tension to counteract the weight of suspended tools, enabling effortless movement, keeping workstations organized, and preventing tool damage.

Key Features of Onpin OP-SB01

  1. Weight Load Reduction: Spring tension precisely counteracts tool weight, allowing operators to handle equipment effortlessly.
  2. Enhanced Safety & Efficiency: Keeps assembly line stations organized, prevents tools from falling or getting damaged, and improves overall workflow efficiency.
  3. Durable Cable Construction: Equipped with a rugged Material Cable featuring a 1.8 mm cable diameter for reliable daily operation.
  4. Ultra-Compact & Lightweight: Net weight of only 0.56 kg (1.23 lb), making it easy to mount on overhead rails or assembly benches.

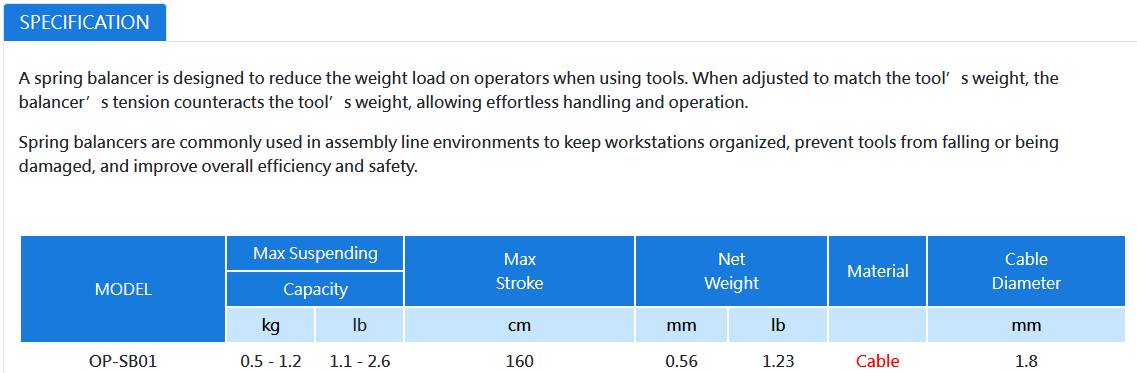

Technical Specifications of Onpin OP-SB01

  1. Model: OP-SB01 / SB01
  2. Max Suspending Capacity: 0.5 - 1.2 kg (1.1 - 2.6 lb)
  3. Max Stroke: 160 cm
  4. Net Weight: 0.56 kg (1.23 lb)
  5. Cable Material: Cable
  6. Cable Diameter: 1.8 mm

Industrial Applications of Onpin OP-SB01

  1. Assembly Lines: Suspending lightweight assembly tools such as electric screwdrivers, small pneumatic nut runners, and rivet guns.
  2. Electronics & Appliance Manufacturing: Assisting operators in repetitive overhead or workstation tasks to minimize physical strain.
  3. Light Hardware & Workshop Fabrication: Keeping tools suspended at convenient working heights to prevent accidental drops and tool wear.
