/ Air Chisel Onpin OP-288N - Round Shank Ø0.433 Inch, 4800 BPM, 283 l/min, 1.21kg
Air Chisel Onpin OP-288N - Round Shank Ø0.433 Inch, 4800 BPM, 283 l/min, 1.21kg
The Onpin OP-288N air chisel is an industrial handheld pneumatic tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It delivers a fast impact speed of 4800 bpm, utilizing a Round chisel shank of Ø0.433 inch, an air consumption of 283 l/min (10 cfm), and a 1/4 P.T air inlet. Featuring a lightweight design of 1.21 kg (2.67 lb) and an overall length of 235 mm (9.25 inches), this tool is ideal for foundry work, burr removal, metal edge trimming, construction drilling, and automotive maintenance.
- OP-288N
- OP288N
- OP 288N
- Onpin air chisel 4800 bpm
- pneumatic hammer round shank Ø0.433 inch
- air chisel burr removal 1.21kg
- automotive repair air chisel 235mm length
- foundry pneumatic air hammer 283 l/min
Design file download links:
Other fileDescription
Specification OP-288N
The Onpin OP-288N air chisel is an industrial handheld pneumatic tool engineered for heavy-duty metalworking, surface conditioning, and vehicle maintenance applications, operating under a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It features a high blow rate of 4800 bpm combined with a Ø0.433 inch Round chisel shank. Built with an optimized lightweight design weighing only 1.21 kg (2.67 lb) and an overall length of 235 mm (9.25 inches), this tool delivers high maneuvering agility and consistent impact energy for factory technicians.
Key Features of Onpin OP-288N
- Lightweight Design (1.21 kg / 2.67 lb): Significantly reduces operator fatigue during continuous chiseling and edge trimming shifts.
- Fast Impact Speed of 4800 BPM: Provides rapid material removal and efficient burr cleaning on metal surfaces.
- Ø0.433 Inch Round Shank: Standard round shank configuration ensures efficient energy transfer and quick attachment changes.
- 235 mm (9.25 Inch) Overall Length: Compact body length allows easy maneuverability in confined spaces and tight angles.
- Standard 1/4 P.T Inlet & 283 l/min (10 cfm) Air Consumption: Integrates seamlessly into industrial compressed air networks at 90 psi operating pressure.

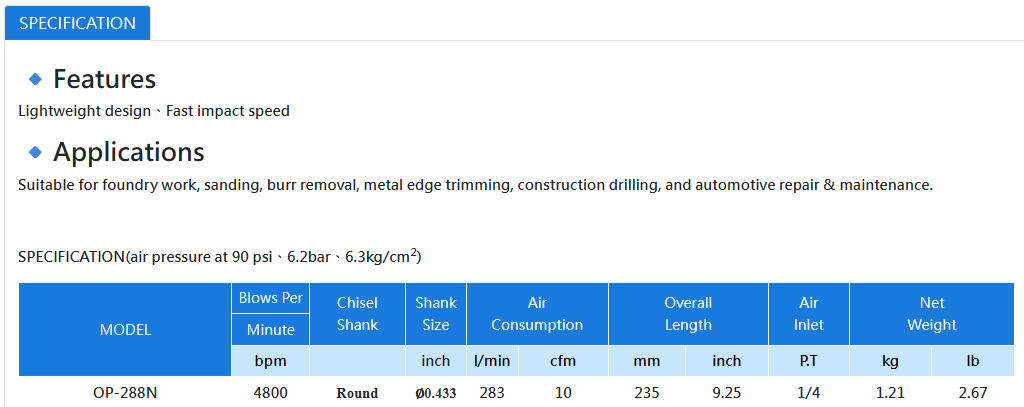

Technical Specifications of Onpin OP-288N
- Brand: Onpin
- Model: OP-288N
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Blows Per Minute: 4800 bpm
- Chisel Shank: Round
- Shank Size: Ø0.433 inch
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 235 mm (9.25 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.21 kg (2.67 lb)
Industrial Applications of Onpin OP-288N
- Foundry Work: Removing casting flash, burrs, and cleaning metal parts post-casting.
- Sanding & Burr Removal: Deburring sharp edges and metal edge trimming following machining operations.
- Construction & Drilling: Light concrete chipping and masonry drilling applications.
- Automotive Repair & Maintenance: Driving out pins, removing rusted fasteners, and general chassis maintenance tasks.
