/ Pneumatic Carving Tool Onpin OP-CP1223 - 2300 BPM, 28 l/min Air Consumption, Length 170mm, 0.23kg
Pneumatic Carving Tool Onpin OP-CP1223 - 2300 BPM, 28 l/min Air Consumption, Length 170mm, 0.23kg
The Onpin OP-CP1223 pneumatic carving tool is a specialized handheld device operating at an air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), engineered for garden stone carving and metal fabrication workflows. It delivers a blow rate of 2300 bpm with an air consumption of 28 l/min (1 cfm), featuring an overall length of 170 mm (6.69 inches). Built with a tungsten carbide impact pin for high wear resistance and an ultra-lightweight net weight of 0.23 kg (0.5 lb), this tool ensures precise depth control and reduced operator fatigue during detailed industrial tasks.
- OP-CP1223
- OPCP1223
- OP CP1223
- Onpin pneumatic carving tool 2300 bpm
- air stone carving pen 0.23kg
- tungsten carbide air chisel pen 28 l/min
- pneumatic engraving tool 170mm length
- air metalworking chisel 1/4 PT inlet
Design file download links:
Other fileDescription

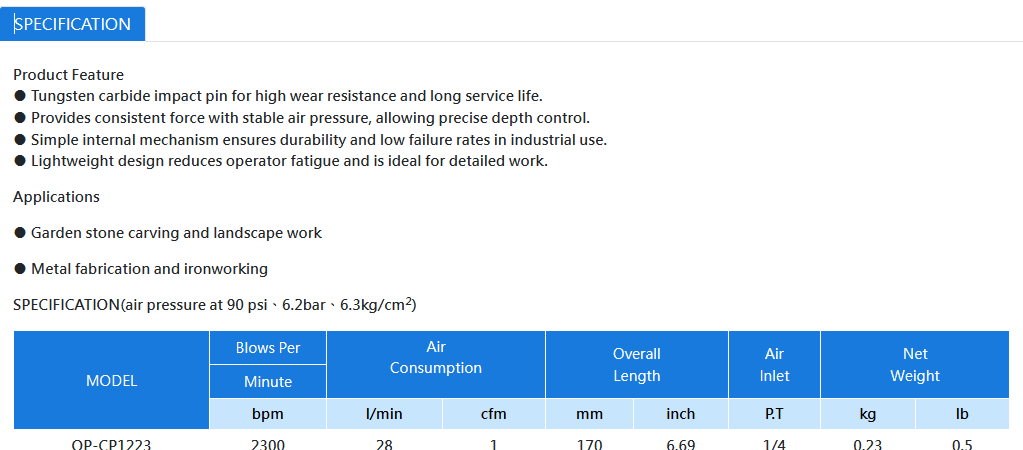

Specification OP-CP1223
The Onpin OP-CP1223 pneumatic carving tool is an industrial handheld air chisel pen designed for detailed engraving, artistic shaping, and surface marking on hard materials such as stone and metal, operating under a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It delivers a high blow rate of 2300 bpm with an economical air consumption of 28 l/min (1 cfm). Featuring a compact overall length of 170 mm (6.69 inches) and an ultra-lightweight net weight of 0.23 kg (0.5 lb), it allows operators to achieve precise depth control and perform intricate detailed work effortlessly.
Key Features of Onpin OP-CP1223
- Tungsten Carbide Impact Pin: Ensures exceptionally high wear resistance and long service life even under demanding industrial conditions.
- Consistent Impact Force & Precise Depth Control: Delivers stable impact energy under constant pneumatic pressure for clean and exact engraving lines.
- Simple Internal Mechanism: Mechanical simplicity guarantees high durability and low failure rates, lowering maintenance needs.
- Ultra-Lightweight Design (0.23 kg / 0.5 lb): Significantly reduces operator fatigue during prolonged and detailed working sessions.
- Low Air Consumption (28 l/min / 1 cfm): Maximizes energy efficiency and ensures easy integration with standard workshop compressed air lines.
Technical Specifications of Onpin OP-CP1223
- Brand: Onpin
- Model: OP-CP1223
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Blows Per Minute: 2300 bpm
- Air Consumption: 28 l/min (1 cfm)
- Overall Length: 170 mm (6.69 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.23 kg (0.5 lb)
Industrial Applications of Onpin OP-CP1223
- Garden Stone Carving & Landscape Work: Ideal for detailed stone carving, lettering, and decorative landscaping projects.
- Metal Fabrication & Ironworking: Widely used for metal chiseling, part marking, surface detailing, and artistic ironwork processing.
