/ Air Orbital Sander Onpin OP-SD417G - Pad Size 100x110mm, 10000 RPM, Orbit 2.5mm
Air Orbital Sander Onpin OP-SD417G - Pad Size 100x110mm, 10000 RPM, Orbit 2.5mm
The Onpin OP-SD417G air orbital sander is an industrial pneumatic finishing tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Featuring a 100 x 110 mm pad size, a free speed of 10,000 rpm, and an orbit diameter of 2.5 mm, it ensures smooth and uniform surface preparation. Built with a lightweight design of 0.89 kg (1.96 lb) net weight, a 6.35 mm (1/4 inch) hose size, and an air consumption of 254 l/min (9.0 cfm), this tool provides high ergonomics and efficiency for industrial sanding applications.
- OP-SD417G
- OPSD417G
- OP SD417G
- OP-SD417G series
- OP-SD417G model
- air orbital sander pad 100x110mm
- Onpin pneumatic sander 10000 rpm
- orbital air sander 2.5mm orbit lightweight 0.89kg
- rectangular pneumatic finishing sander 1/4 inch hose
- air orbital sander 254 l/min air consumption
Design file download links:
Other fileDescription

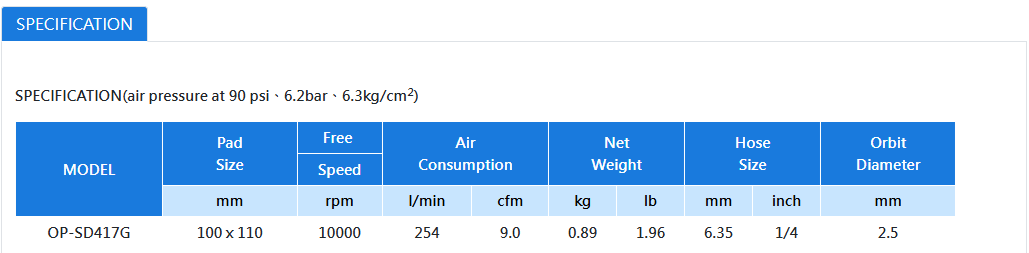

Specification OP-SD417G
The Onpin OP-SD417G air orbital sander is an industrial pneumatic handheld finishing tool engineered for precision surface preparation, operating under a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Equipped with a 100 x 110 mm rectangular sanding pad, a high free speed of 10,000 rpm, and an orbit diameter of 2.5 mm, it delivers ultra-smooth and consistent finishing results. Featuring an ultra-lightweight design of just 0.89 kg (1.96 lb), this sander provides high ergonomics and efficiency for long industrial work shifts.
Key Features of Onpin OP-SD417G
- Ultra-Lightweight Build (0.89 kg / 1.96 lb): Reduces operator fatigue and allows precise control during continuous sanding applications.
- 100 x 110 mm Pad Size: Rectangular pad shape designed efficiently for flat surfaces, tight areas, and edge finishing.
- 2.5 mm Orbit Diameter & 10,000 RPM Speed: Ensures a fine sanding pattern with smooth material removal, preventing deep swirl marks.
- Efficient Air Consumption (254 l/min / 9.0 cfm): Optimized compressed air usage to maintain steady output and energy savings.
- Standard Hose Connection (6.35 mm / 1/4 inch): Fits easily with standard workshop air lines and quick-connect couplers.
Technical Specifications of Onpin OP-SD417G
- Brand: Onpin
- Model: OP-SD417G
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Pad Size: 100 x 110 mm
- Free Speed: 10,000 rpm
- Air Consumption: 254 l/min (9.0 cfm)
- Net Weight: 0.89 kg (1.96 lb)
- Hose Size: 6.35 mm (1/4 inch)
- Orbit Diameter: 2.5 mm
Industrial Applications of Onpin OP-SD417G
- Woodworking & Furniture Manufacturing: Fine surface sanding, primer coat sanding, and edge smoothing prior to final finishing.
- Automotive Repair & Refinishing: Sanding body filler (putty), primer coats, and surface prep on sheet metal parts before painting.
- Metalworking & Composite Fabrication: Deburring light edges, surface smoothing on aluminum, steel, and fiber-reinforced composite panels.
