Air Orbital Sander Onpin OP-SD317 - Pad Size 100x75mm, 10000 RPM, Orbit 2.5mm
The Onpin OP-SD317 air orbital sander is an industrial pneumatic finishing tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Featuring a 100 x 75 mm pad size, a free speed of 10,000 rpm, and an orbit diameter of 2.5 mm, it ensures precise and consistent surface preparation. Engineered with an ultra-lightweight design of 0.83 kg (1.83 lb) net weight, a 6.35 mm (1/4 inch) hose size, and air consumption of 268 l/min (9.5 cfm), this tool provides high ergonomics and operational efficiency for industrial sanding tasks.
- OP-SD317
- OPSD317
- OP SD317
- OP-SD317 series
- OP-SD317 model
- air orbital sander pad 100x75mm
- Onpin pneumatic sander 10000 rpm
- orbital air sander 2.5mm orbit ultralightweight 0.83kg
- rectangular pneumatic finishing sander 1/4 inch hose
- air orbital sander 268 l/min air consumption
Design file download links:
Other fileDescription

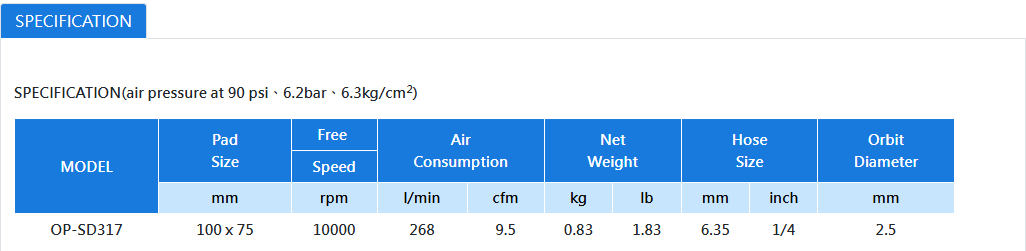

Specification OP-SD317
The Onpin OP-SD317 air orbital sander is an industrial pneumatic handheld finishing tool engineered for precision surface preparation, operating under a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Equipped with a 100 x 75 mm rectangular sanding pad, a high free speed of 10,000 rpm, and an orbit diameter of 2.5 mm, it delivers ultra-smooth and consistent finishing results. Featuring an ultra-lightweight design of just 0.83 kg (1.83 lb), this sander provides high ergonomics and efficiency for detailed sanding tasks in industrial environments.
Key Features of Onpin OP-SD317
- Ultra-Lightweight Build (0.83 kg / 1.83 lb): Minimizes operator fatigue and ensures superior tool control during continuous work shifts.
- 100 x 75 mm Pad Size: Compact rectangular pad design optimized for narrow surfaces, tight areas, and fine edge finishing.
- 2.5 mm Orbit Diameter & 10,000 RPM Speed: Provides a fine sanding pattern with smooth material removal, preventing deep swirl marks.
- Efficient Air Consumption (268 l/min / 9.5 cfm): Optimized air consumption ensures steady output while maintaining operational efficiency.
- Standard Hose Connection (6.35 mm / 1/4 inch): Fits seamlessly with standard workshop pneumatic supply lines.
Technical Specifications of Onpin OP-SD317
- Brand: Onpin
- Model: OP-SD317
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Pad Size: 100 x 75 mm
- Free Speed: 10,000 rpm
- Air Consumption: 268 l/min (9.5 cfm)
- Net Weight: 0.83 kg (1.83 lb)
- Hose Size: 6.35 mm (1/4 inch)
- Orbit Diameter: 2.5 mm
Industrial Applications of Onpin OP-SD317
- Woodworking & Furniture Manufacturing: Fine surface sanding on small wood parts, primer coat sanding, and detail edge smoothing.
- Automotive Repair & Refinishing: Sanding body filler (putty), primer coats, and tight surface prep on body panels.
- Metalworking & Composite Fabrication: Light deburring, surface smoothing on aluminum, sheet steel, and composite components.
