Onpin OP-5SLA08 Air Shut-Off Screwdriver - Lever Start, 2.2-4.3Nm Torque, ±3% Accuracy, 5mm Capacity

Specification OP-5SLA08

The Onpin OP-5SLA08 Air Screwdriver (Air Shut-Off Screw Driver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational output, delivering a free speed of 800 rpm and a torque range of 2.2 ~ 4.3 Nm, featuring a lever-start mechanism with an automatic shut-off system boasting ±3% torque accuracy.

Key Features of Onpin OP-5SLA08

1. High Accuracy (±3%): Guarantees precise and repeatable torque control for sensitive assembly applications.
2. Lever-Start Device with Auto Shut-Off: Automatically stops all moving components upon reaching preset torque, preventing damage to workpieces.
3. One-Hand Forward and Reverse Operation: Equipped with a self-locking reverse button (reverse button has self locking function) for convenient single-handed operation.
4. Lightweight & Energy Saving: Features low air consumption (198 l/min / 7 cfm), a net weight of 1.22 kg, and a sound level of 80 dB(A).

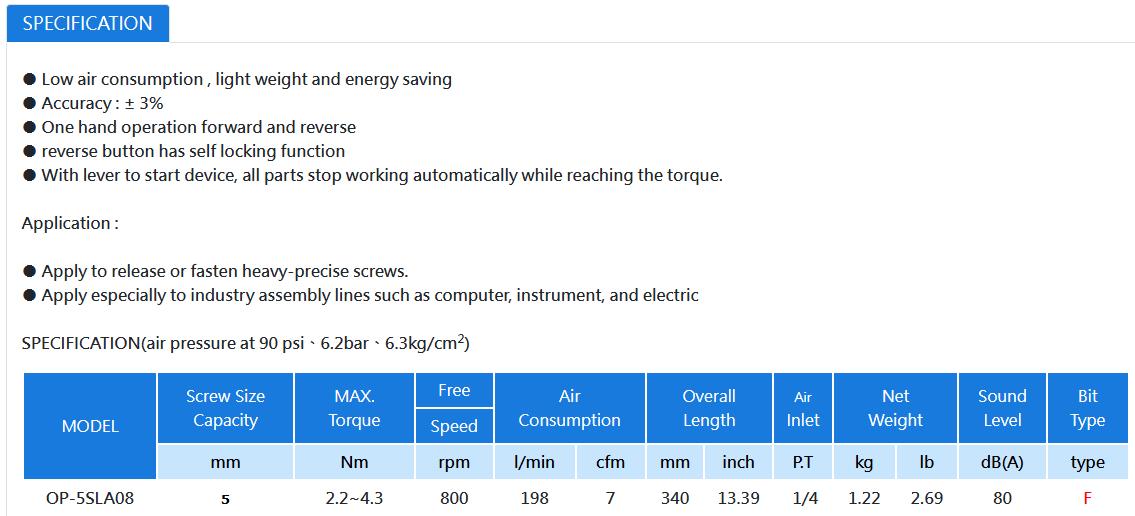

Technical Specifications of Onpin OP-5SLA08

1. Model: OP-5SLA08
2. Screw Size Capacity: 5 mm
3. MAX. Torque: 2.2 ~ 4.3 Nm
4. Free Speed: 800 rpm
5. Air Consumption: 198 l/min (7 cfm)
6. Overall Length: 340 mm (13.39 inch)
7. Air Inlet: 1/4 P.T
8. Net Weight: 1.22 kg (2.69 lb)
9. Sound Level: 80 dB(A)
10. Bit Type: Type F
11. Torque Accuracy: ±3%
12. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-5SLA08

1. Precision Fastening: Specially designed to release or fasten heavy-precise screws.
2. Computer Assembly Lines: Ideal for securing hardware components requiring accurate 2.2 ~ 4.3 Nm torque delivery.
3. Instrument Assembly Lines: Protects delicate measuring instruments with ±3% torque precision.
4. Electrical Industry Lines: Maximizes assembly line efficiency and quality control via auto shut-off functionality.
