/ Onpin OP-5S1508A Air Shut-Off Screwdriver - Trigger Start, 2.2-4.3Nm Torque, ±3% Accuracy, 5mm Capacity
Onpin OP-5S1508A Air Shut-Off Screwdriver - Trigger Start, 2.2-4.3Nm Torque, ±3% Accuracy, 5mm Capacity
The Onpin OP-5S1508A Air Shut-Off Screwdriver is a high-precision industrial fastening tool designed to release or fasten heavy-precise screws up to 5 mm in capacity. Operating at a rated air pressure of 90 psi (6.2 bar), it features a free speed of 800 rpm and a MAX torque range of 2.2 ~ 4.3 Nm. Equipped with a trigger-start mechanism, torque adjustment via nut turning, and an auto shut-off function with ±3% accuracy, all parts automatically stop once the preset torque is reached. Featuring a compact net weight of 0.95 kg, an overall length of 285 mm, low air consumption of 198 l/min (7 cfm), and one-hand reverse control, this tool is ideal for assembly lines in the computer, instrument, and electrical sectors.
- OP-5S1508A
- OP-5S1508A Air Shut-Off Screw Driver
- OP-5S Series
- OP-5S1508 Series
- Onpin OP-5S1508A air screwdriver
- trigger start pneumatic shut off screwdriver
- precision air torque screwdriver 2.2-4.3Nm
- industrial air assembly screwdriver
- low air consumption pneumatic screwdriver
Design file download links:
PDF fileDescription

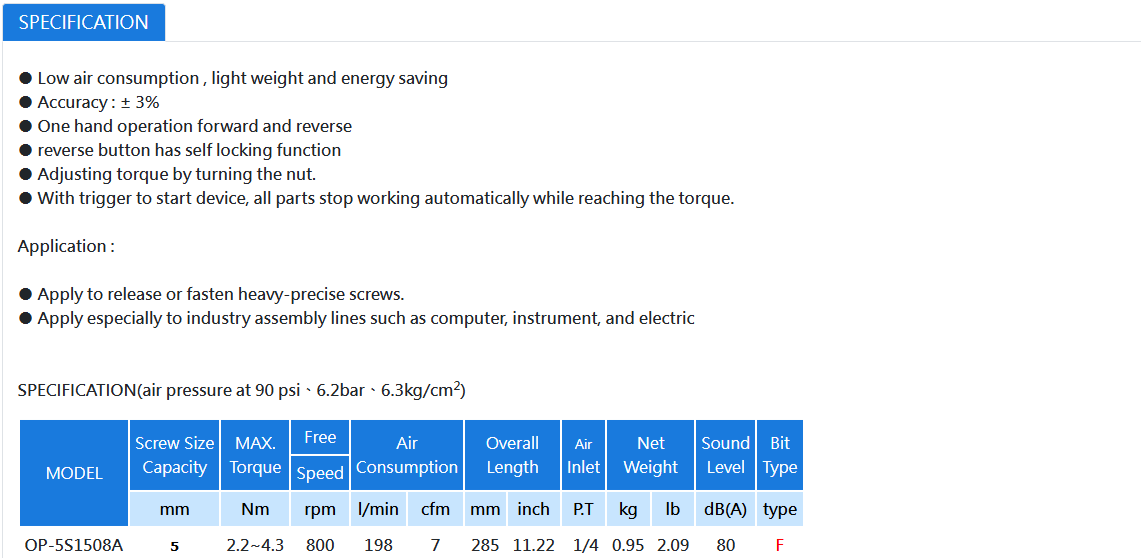

Specification OP-5S1508A
The Onpin OP-5S1508A Air Screwdriver (Air Shut-Off Screw Driver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational output, delivering a free speed of 800 rpm and a torque range of 2.2 ~ 4.3 Nm, featuring a trigger-start mechanism with an automatic shut-off system boasting ±3% torque accuracy.
Key Features of Onpin OP-5S1508A
- High Accuracy (±3%): Guarantees precise and repeatable torque control for sensitive assembly applications.
- Trigger-Start Device with Auto Shut-Off: Automatically stops all moving components upon reaching preset torque, preventing damage to workpieces.
- Convenient Torque Adjustment: Effortlessly adjust the working torque by turning the adjustment nut.
- One-Hand Forward and Reverse Operation: Equipped with a self-locking reverse button (reverse button has self locking function) for convenient single-handed operation.
- Lightweight & Energy Saving: Features low air consumption (198 l/min / 7 cfm), a lightweight net weight of 0.95 kg (2.09 lb), and a sound level of 80 dB(A).
Technical Specifications of Onpin OP-5S1508A
- Model: OP-5S1508A
- Screw Size Capacity: 5 mm
- MAX. Torque: 2.2 ~ 4.3 Nm
- Free Speed: 800 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 285 mm (11.22 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.95 kg (2.09 lb)
- Sound Level: 80 dB(A)
- Bit Type: Type F
- Torque Accuracy: ±3%
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-5S1508A
- Precision Fastening: Specially designed to release or fasten heavy-precise screws.
- Computer Assembly Lines: Ideal for securing delicate hardware components requiring accurate 2.2 ~ 4.3 Nm torque delivery.
- Instrument Assembly Lines: Protects delicate measuring instruments with ±3% torque precision.
- Electrical Industry Lines: Maximizes assembly line efficiency and quality control via auto shut-off functionality.
