Onpin OP-314A1 Air Screwdriver - 4mm Capacity, Auto Clutch, 2Nm, 1700RPM
The Onpin OP-314A1 air screwdriver is designed for high-precision screw fastening and releasing applications in toy, electrical, carpentry, and plastic manufacturing industries. Operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it delivers a free speed of 1700 rpm, maximum torque of 2 Nm, and air consumption of 12 l/min (4.5 cfm). Featuring an automatic clutch system, integrated torque regulator, self-locking reverse button, rear exhaust with muffler, and a spring balancer hook design, it ensures workpiece protection, low noise level (70 dB(A)), and optimal operator safety.
- OP-314A1
- OP-314A1 Series
- OP-314
- OP-314 Series
- onpin op-314a1 air screwdriver
- low noise pneumatic screwdriver 2nm
- auto clutch air screwdriver 1700rpm
- precision adjustable clutch air screwdriver 4mm
- industrial pneumatic screwdriver rear exhaust
Design file download links:
PDF fileDescription
Specification OP-314A1
The Onpin OP-314A1 Air Screwdriver (Low-Noise Adjustable Clutch Air Screw Driver) is a precision, low-noise pneumatic fastening tool operating under a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational torque with a free speed of 1700 rpm and a maximum torque output of 2 Nm, featuring an automatic clutch system to prevent workpiece damage.
Key Features of Onpin OP-314A1
- Automatic clutch mechanism: Runs automatically upon reaching the preset torque to protect the workpiece from being damaged.
- Integrated torque regulator: Built-in torque regulator enables accurate torque adjustments to meet strict assembly standards.
- One-hand operation: Designed with a smooth forward and reverse switch for convenient single-handed operation.
- Self-locking reverse button: Features a self locking function on the reverse button for enhanced control and operating safety.
- Rear exhaust with muffler: Equipped with a rear exhaust muffler that reduces operation noise to 70 dB(A) for a quiet working environment.
- Spring balancer hook design: Includes a built-in hook suitable for spring balancer attachment, boosting work efficiency and reducing operator fatigue.

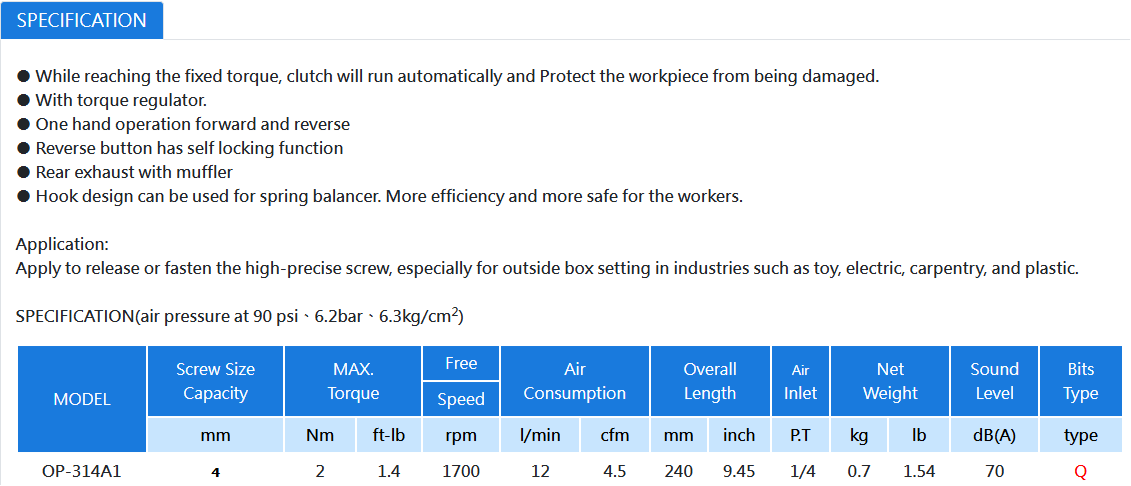

Technical Specifications of Onpin OP-314A1
- Model: OP-314A1
- Screw Size Capacity: 4 mm
- MAX. Torque: 2 Nm (1.4 ft-lb)
- Free Speed: 1700 rpm
- Air Consumption: 12 l/min (4.5 cfm)
- Overall Length: 240 mm (9.45 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.7 kg (1.54 lb)
- Sound Level: 70 dB(A)
- Bits Type: Type Q
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-314A1
- Toy Manufacturing: Applied to release or fasten high-precision screws in external box settings and casings.
- Electric Industry: Ideal for precise screw fastening in electrical enclosures and delicate components.
- Carpentry & Woodworking: Suitable for fine joinery and detailed woodwork requiring torque accuracy.
- Plastic Processing: Designed for assembling plastic housings and delicate external box structures.
