Onpin OP-302 Air Screwdriver - 5mm Capacity, Auto Clutch, 2.5Nm, 1900RPM

Specification OP-302

The Onpin OP-302 Air Screwdriver (Adjustable Clutch Air Screw Driver) is a high-precision pneumatic fastening tool designed to operate under a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational speed at 1900 rpm with a maximum torque output of 2.5 Nm, featuring an automatic clutch mechanism to prevent damage to the workpiece surface.

Key Features of Onpin OP-302

1. Automatic clutch mechanism: Runs automatically upon reaching the preset torque to protect the workpiece from being damaged.
2. Integrated torque regulator: Equipped with a torque regulator for precise torque control to meet demanding technical standards.
3. One-hand operation: Designed for effortless single-handed control over forward and reverse direction switching.
4. 360-degree exhaust bushing: Features a 360 degree exhaust bushing that allows operators to easily adjust the air deflection angle.
5. Spring balancer hook design: Built-in hook structure designed for spring balancer integration, improving workflow efficiency and worker safety.

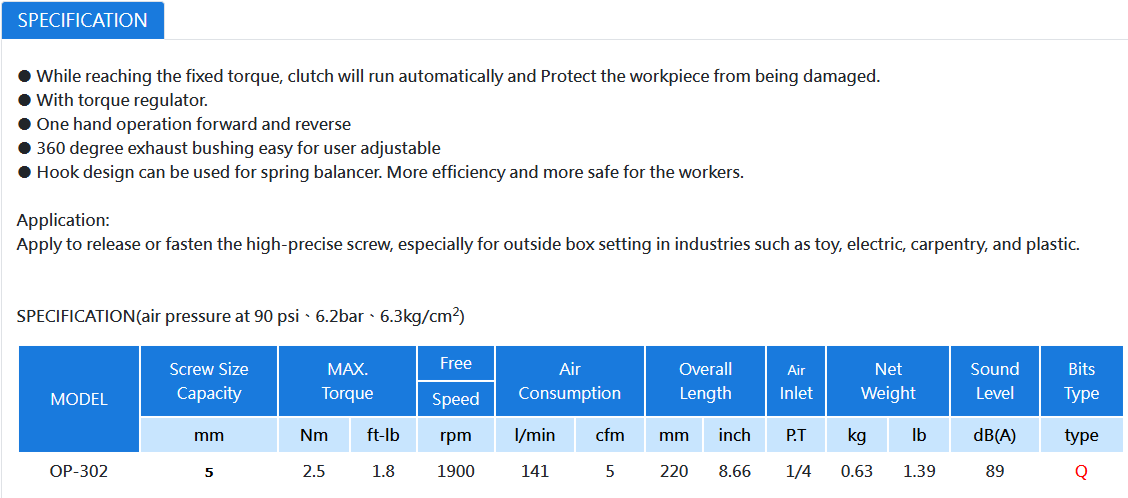

Technical Specifications of Onpin OP-302

1. Model: OP-302
2. Screw Size Capacity: 5 mm
3. MAX. Torque: 2.5 Nm (1.8 ft-lb)
4. Free Speed: 1900 rpm
5. Air Consumption: 141 l/min (5 cfm)
6. Overall Length: 220 mm (8.66 inch)
7. Air Inlet: 1/4 P.T
8. Net Weight: 0.63 kg (1.39 lb)
9. Sound Level: 89 dB(A)
10. Bits Type: Type Q
11. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-302

1. Toy Manufacturing: Applied to release or fasten high-precision screws in external box settings and casings.
2. Electric Industry: Suitable for precise screw assembly in electrical enclosures and delicate electronic parts.
3. Carpentry & Woodworking: Ideal for fine joinery work and woodworking applications requiring controlled torque.
4. Plastic Processing: Designed for assembling plastic housings and delicate external box structures.
