Motor Troy DC BU
Troy products have the features and functions of products focused on customer needs. Through the color, shape, texture for the R & D design appeal to establish the product's own characteristics and market positioning; to subvert the traditional impression of industrial products. Incorporate complex technical theories into simple, easy-to-use, and reliable products; to thoroughly implement the business philosophy of " Quality, Technology, Service all-in-one ".
- Tags:
- Motor Troy DC BU
- 6BU40S
- 6BU40P
- 6BU60S
- 6BU60P
- 9BU120S
- 9BU120P
- BU40
- SBU40
- BU60
- SBU60
- BU120
- SBU120
Design file download links:
PDF fileDescription
Specifications:
Salient features:

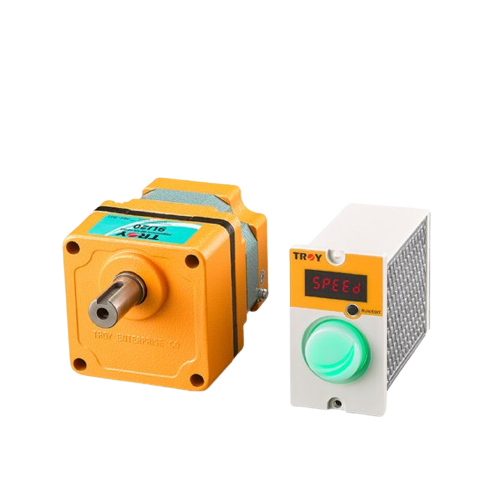

• Control panel mounting type. Advanced DC Brushless Motor for AC Single-phase and Three-phase power supply series.
• Motor output power： 40W(1/19Hp), 60W(1/13Hp), 120W(1/6Hp).
• Speed adjustment range：250~4000 RPM.
• Compatible to Modbus RTU communication protocol, RS-485 interface with RJ45 cable to control different machines in series to simplify wiring.
• Digital display and shuttle knob operation interface. 7 kinds of LED situation color display can intuitively observe the operating state of the motor and driver.
• It can be controlled by 3 modes, i.e. [Communication Mode],[Panel Mode] and [I/O Mode].
• Multiple function parameters are available for selection and application (like operation movement control, I/O configuration, 8 stage speed set, monitor status…ect.)and also have system abnormal protection function.
• Have speed tracking compensation function. Low speed variation rate and High response characteristics. Same output torque in rated speed range.
