PMF Series Pneumatic Straight Fitting – Push-in Tube Connector with Male Thread

Specification:

Product Overview

The PMF Series is a straight pneumatic fitting with male thread, designed for quick push-in tube connections. This fitting enables secure and airtight connections in pneumatic systems and provides an easy and efficient way to connect air hoses.

Key Features & Characteristics

1. Straight design with male thread ensures a stable and secure connection
2. Push-in connection system allows for fast and easy tube installation
3. Made from high-quality materials (POM, aluminum alloy, NBR seals) for durability and strength
4. Grey/black finish for corrosion resistance and easy maintenance
5. Compatible with nylon and polyurethane tubing
6. High pressure resistance, ensuring stable operation in industrial environments

Technical Specifications

1. Operating pressure: 0 ~ 1.0 MPa
2. Proof pressure: 1.5 MPa
3. Vacuum pressure: -750 mmHg (10 Torr)
4. Working temperature: -20°C to 70°C

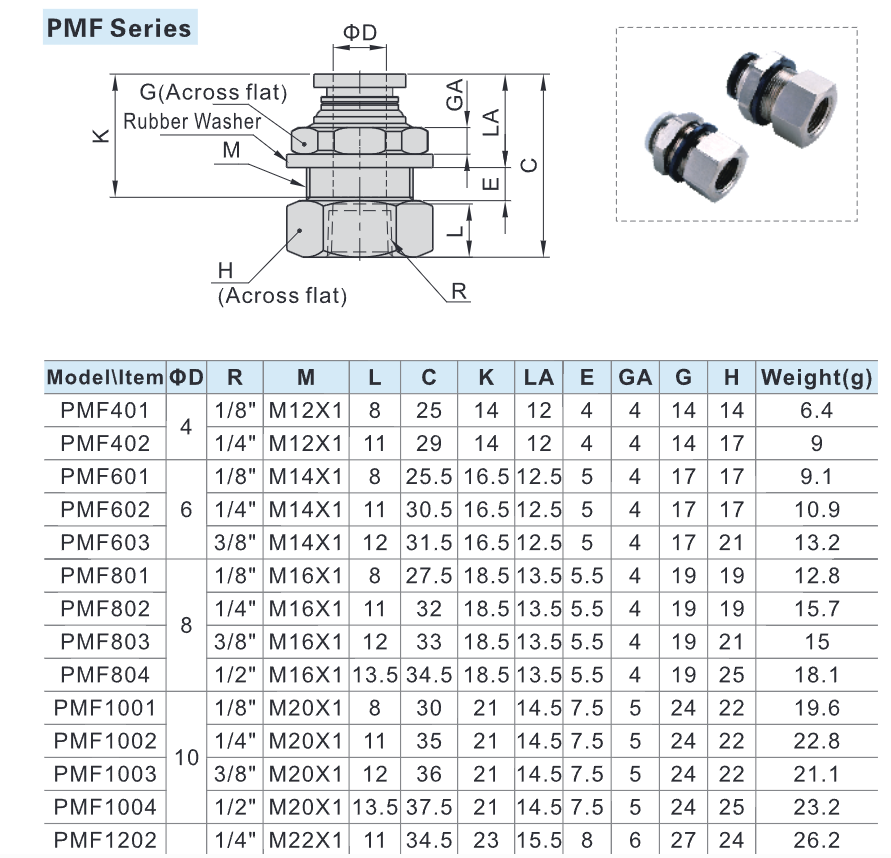

5. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
6. Models: PMF401, PMF402, PMF601, PMF602, PMF603, PMF801, PMF802, PMF803, PMF804, PMF1001, PMF1002, PMF1003, PMF1004, PMF1202
7. Materials: POM, aluminum alloy, stainless steel, NBR

Advantages

1. Excellent sealing performance, preventing air leakage
2. Quick installation with the push-in connection
3. Secure connection, preventing loosening over time
4. High durability, resistant to pressure and harsh conditions
5. Space-saving and cost-effective solution for pneumatic systems

Applications

1. Industrial pneumatic systems
2. Control panels, air distribution systems
3. Automation machinery and production lines
4. Industries such as mechanical, electronics, food processing, packaging
5. Applications requiring quick and secure tube connections
