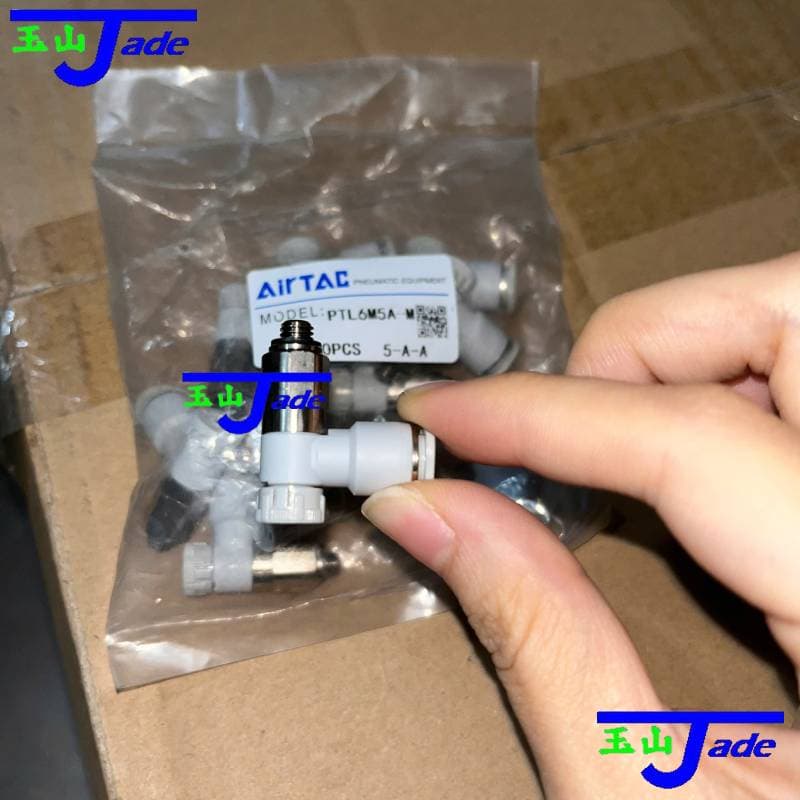

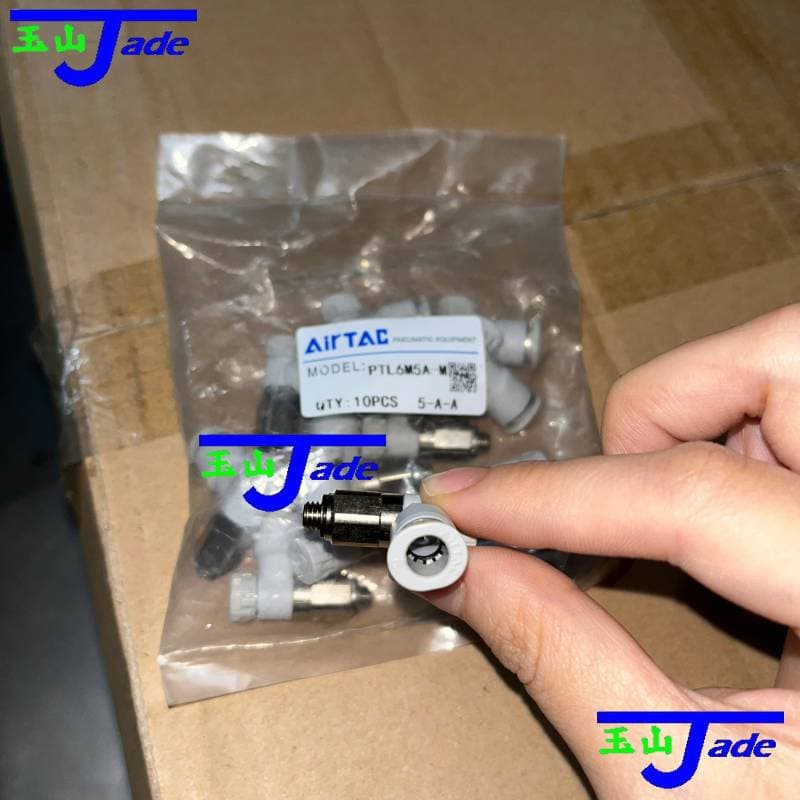

PTL Mini Speed Controller – Compact Pneumatic Flow Control Valve Push-Lock Type

Specification

The PTL Mini Speed Controller is a compact pneumatic flow control valve designed to regulate airflow and precisely control actuator speed in limited spaces. With its push-lock mechanism and mini size, it is ideal for modern pneumatic and automation systems.

Product Overview

1. PTL Mini is a compact pneumatic flow control valve.
2. It enables precise control of cylinder and actuator speed, ensuring smooth operation.

Features and Key Characteristics

1. Compact mini design, ideal for space-saving installations
2. Push-lock mechanism, easy to operate and secure settings
3. Accurate flow adjustment, improving control performance
4. Supports both meter-in and meter-out control
5. High sensitivity, fast response to pressure changes
6. Nickel-plated metal body, ensuring corrosion resistance
7. Thread sealing with sealant, preventing air leakage
8. Durable structure, ensuring long-term reliability

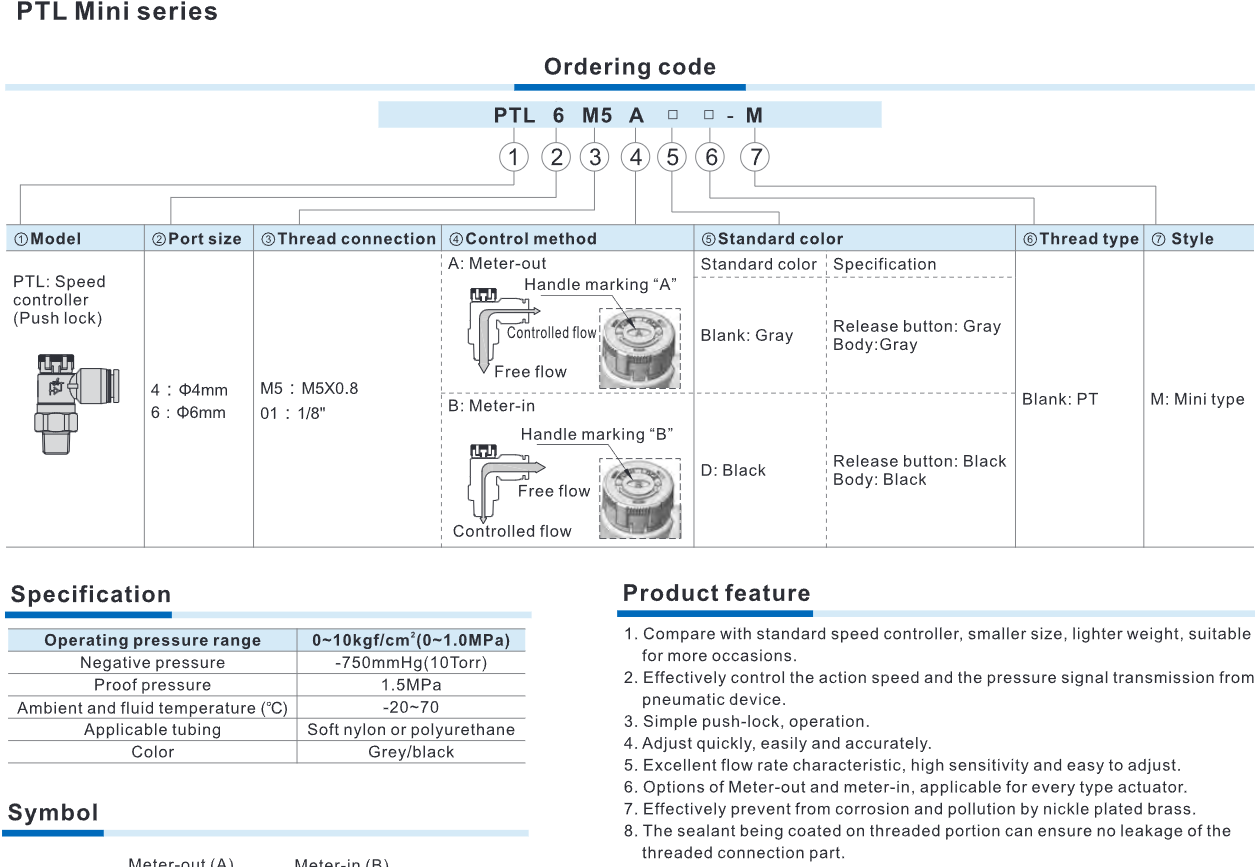

Technical Specifications

1. Tube sizes: Ø4, Ø6 mm
2. Thread types: M5, 1/8" (PT)
3. Working pressure: 0 – 1.0 MPa
4. Proof pressure: 1.5 MPa
5. Vacuum pressure: -750 mmHg (10 Torr)
6. Operating temperature: -20°C to 70°C
7. Materials: nickel-plated brass, engineering plastic, NBR seal
8. Applicable tubing: PU or soft nylon

Advantages

1. Compact size, ideal for tight spaces
2. Precise and stable speed control
3. Cost-effective and easy to install
4. Durable and corrosion-resistant
5. Simple operation and maintenance

Applications

1. Mini pneumatic systems
2. Industrial automation and robotics
3. Medical and electronic equipment
4. Packaging machines and small production lines
5. Air control systems in confined spaces
