PM Series Pneumatic Bulkhead Fitting – Push-in Tube Connector with Male Thread

Specification PM Series Pneumatic Bulkhead Fitting:

Product Overview

The PM Series is a bulkhead pneumatic fitting designed to connect tubing through walls or panels securely. With its push-in connection system, the product allows quick installation and ensures airtight sealing in pneumatic systems.

Key Features & Characteristics

1. Bulkhead design enables tubing to pass through walls or panels, ideal for control cabinets or tight spaces
2. Male thread ensures a secure and leak-proof connection
3. Push-in connection for easy and quick tube installation without the need for tools
4. Made from POM, aluminum alloy, and NBR for enhanced durability and strength
5. Grey/black finish for corrosion resistance and easy cleaning
6. Compatible with nylon and polyurethane tubing

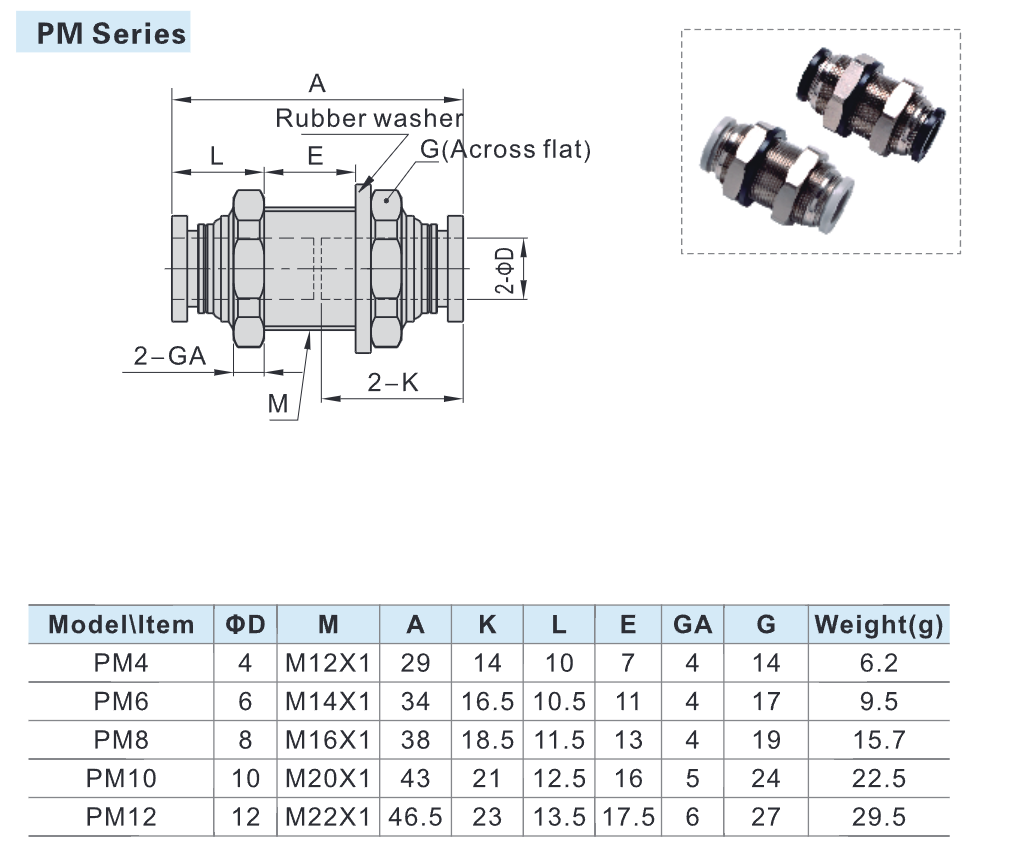

Technical Specifications

1. Operating pressure: 0 ~ 1.0 MPa
2. Proof pressure: 1.5 MPa
3. Vacuum pressure: -750 mmHg (10 Torr)
4. Working temperature: -20°C to 70°C
5. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
6. Models: PM4, PM6, PM8, PM10, PM12
7. Materials: POM, aluminum alloy, stainless steel, NBR

Advantages

1. High sealing performance, prevents air leakage
2. Quick and easy installation with the push-in connection
3. Durable construction, suitable for harsh industrial environments
4. Able to withstand high pressure, ensuring long-term stability
5. Space-saving and cost-effective solution

Applications

1. Industrial pneumatic systems
2. Control panels, air distribution systems
3. Automation machinery requiring tube connections through walls
4. Industries such as mechanical, electronics, food processing, packaging
5. Applications needing tube connections through panels or control boxes
