PLM Series Pneumatic Elbow Fitting – Push-in Tube Connector with Male Thread for 90° Angled Connections

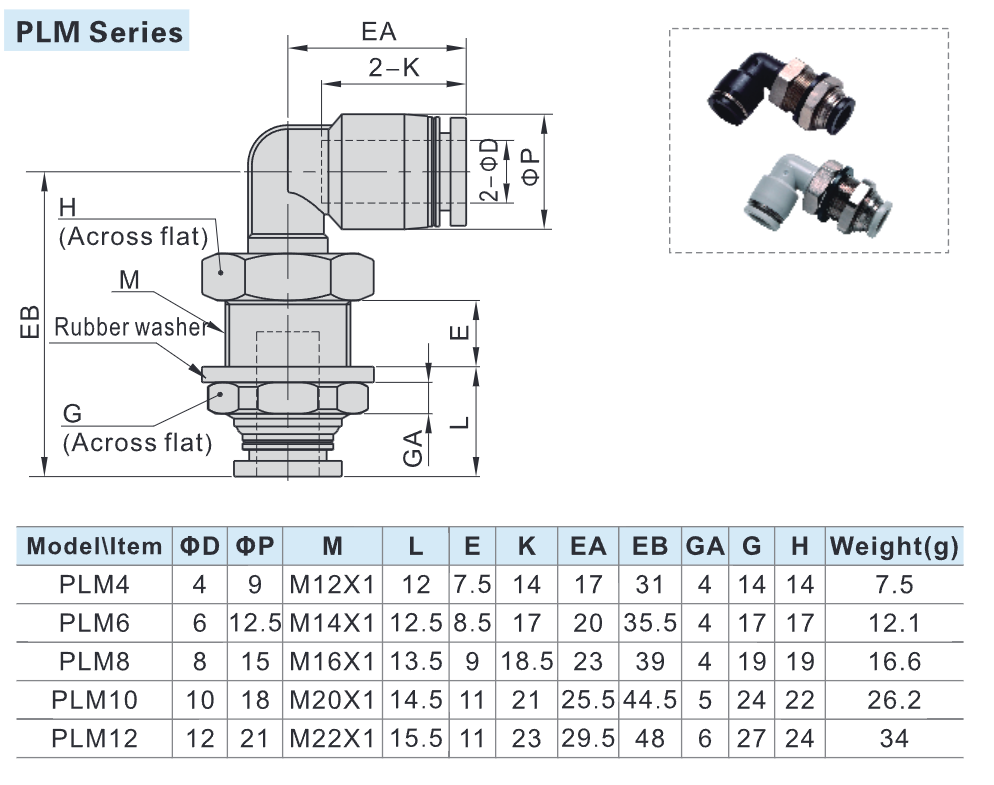

Specification:

Product Overview

The PLM Series is a 90° pneumatic elbow fitting with male thread, designed for quick push-in tube connections at a right angle. This fitting enables flexible and efficient airflow direction change in pneumatic systems, making it ideal for tight spaces and applications where a 90-degree connection is required.

Key Features & Characteristics

1. 90° elbow design allows tubing to connect at a right angle, saving installation space
2. Male thread ensures a secure connection to the pneumatic system
3. Push-in connection system for easy, tool-free tube installation
4. Made from high-quality materials (POM, aluminum alloy, NBR seals) for durability and strength
5. Grey/black finish for corrosion resistance and ease of cleaning
6. Compatible with nylon and polyurethane tubing

Technical Specifications

1. Operating pressure: 0 ~ 1.0 MPa
2. Proof pressure: 1.5 MPa
3. Vacuum pressure: -750 mmHg (10 Torr)
4. Working temperature: -20°C to 70°C
5. Tube sizes: Φ4, Φ6, Φ8, Φ10, Φ12
6. Models: PLM4, PLM6, PLM8, PLM10, PLM12
7. Materials: POM, aluminum alloy, stainless steel, NBR

Advantages

1. Excellent sealing performance, prevents air leakage
2. Quick and easy installation with the push-in connection
3. Secure connection, no loosening over time
4. High durability, resistant to pressure and harsh industrial conditions
5. Space-saving, ideal for applications needing 90-degree tube connections

Applications

1. Industrial pneumatic systems
2. Control panels, air distribution systems in tight spaces
3. Automation machinery, production lines
4. Industries such as mechanical, electronics, food processing, packaging
5. Applications requiring 90-degree tube connections
