BPC Series Pneumatic Male Connector – High-Flow Metal Fitting with Threaded Connection

Specification:

Product Overview

The BPC Series is a metal male-thread pneumatic fitting designed for high-flow applications. It ensures secure, airtight connections in pneumatic systems. Made from nickel-plated metal, this fitting offers excellent corrosion resistance and is ideal for use in high-temperature environments. It features a push-in connection system for easy tube installation, ensuring reliable performance and minimal air leakage.

Key Features & Characteristics

1. Male-threaded metal design ensures a strong, secure connection
2. Nickel-plated finish provides excellent corrosion resistance and high-temperature tolerance
3. Easy push-in installation system saves time and requires no tools
4. High flow capacity, allowing smooth air passage and efficient system operation
5. Compact and durable design, making it ideal for a wide range of applications

Technical Specifications

1. Operating pressure: 0 ~ 0.9 MPa
2. Proof pressure: 1.5 MPa
3. Working temperature: 0 ~ 150°C
4. Material: Nickel-plated metal

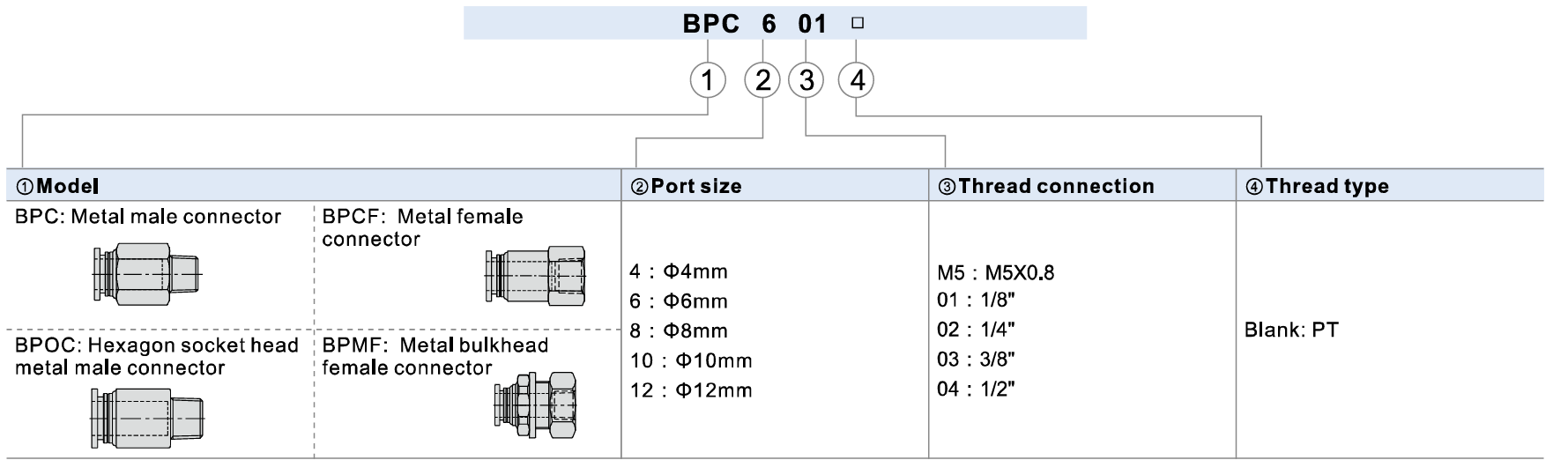

5. Models: BPC, BPCF, BPOC, BPMF, with port sizes of Φ4, Φ6, Φ8, Φ10, Φ12
6. Flow capacity: Equivalent to that of adaptable tubes

Advantages

1. Quick installation with a push-in connection system
2. High-temperature resistance, suitable for use in extreme environments
3. Corrosion-resistant, ensuring longevity and durability
4. High-pressure tolerance, providing stable operation
5. Space-saving, compact design for easier installation

Applications

1. Industrial pneumatic systems
2. Control panels, air distribution systems
3. Automation machinery and production lines
4. Industries such as mechanical, electronics, food processing, packaging
5. Applications requiring quick and reliable pneumatic tube connections
