/ Onpin Air Ratchet Wrench OP-814LSB EN ISO 11148-6 - Hex 10-19mm (5/8", 11/16", 3/4"), 190rpm, 25Nm
Onpin Air Ratchet Wrench OP-814LSB EN ISO 11148-6 - Hex 10-19mm (5/8", 11/16", 3/4"), 190rpm, 25Nm
The Onpin OP-814LSB Air Ratchet Wrench is a specialized pneumatic tool designed to easily fasten and remove bolts and nuts in narrow working spaces unreachable by standard air tools. Operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it delivers a free speed of 190 rpm, a working torque of 15 Nm (11 ft-lb), and a maximum torque of 25 Nm (18 ft-lb). The tool features a 1/4 P.T air inlet, supporting Hex sizes from 10mm to 19mm (including 5/8", 11/16", 3/4") with an air consumption of 212 l/min, an overall length of 338 mm, and a net weight of 2 kg. Fully compliant with EN ISO 11148-6:2012 and 2006/42/EC standards, it is ideal for heavy-productive assembly lines in motor-vehicles, bikes, and motors.
- OP-814LSB
- 814LSB
- OP-814
- OP-814 Series
- onpin op-814lsb air ratchet wrench
- pneumatic ratchet wrench narrow space
- 190rpm air ratchet wrench 25nm
- hex 10mm to 19mm air ratchet
- heavy assembly line air tool
Design file download links:
PDF fileDescription

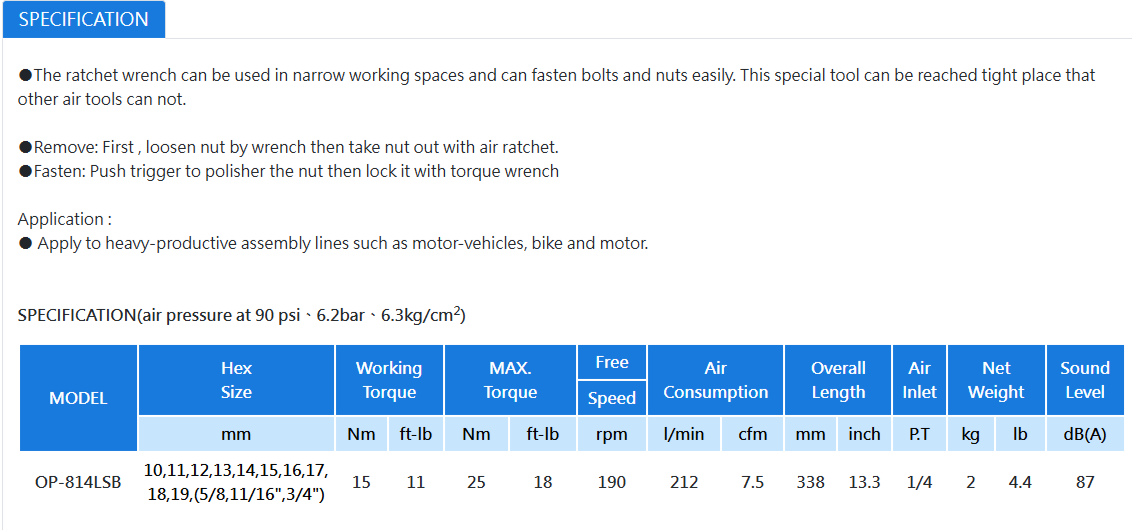

Specification OP-814LSB
The Onpin OP-814LSB Air Ratchet Wrench is a specialized pneumatic fastening tool engineered to reach and easily fasten or remove bolts and nuts in narrow spaces where conventional air tools cannot operate. Manufactured in Taiwan by Hong Bing Pneumatic Industry Co., Ltd., it operates at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²) via a 1/4 P.T air inlet, delivering a free speed of 190 rpm and a maximum torque of 25 Nm (18 ft-lb). The device is fully compliant with European Machinery Directive 2006/42/EC and EN ISO 11148-6:2012 safety standards.
Key Features of Onpin OP-814LSB
- Narrow Space Accessibility: Compact profile enables effortless operation in confined working areas.
- Systematic Fastening & Removal Process: Supports initial nut loosening with a manual wrench before removal via air ratchet, or positioning nuts using the trigger prior to final torque wrench tightening.
- Expanded Hex Socket Range: Fits Hex sizes 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm and fractional inch sizes 5/8", 11/16", 3/4".
- Reliable Performance: Delivers a Working Torque of 15 Nm (11 ft-lb) and a MAX. Torque of 25 Nm (18 ft-lb).
- Certified European Standard: Complies with 2006/42/EC Machinery Directive and EN ISO 11148-6:2012 safety requirements.
Technical Specifications of Onpin OP-814LSB
- Model: OP-814LSB (Table designation: 814LSB)
- Hex Size: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm (5/8", 11/16", 3/4")
- Working Torque: 15 Nm (11 ft-lb)
- MAX. Torque: 25 Nm (18 ft-lb)
- Free Speed: 190 rpm
- Air Consumption: 212 l/min (7.5 cfm)
- Overall Length: 338 mm (13.3 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 2 kg (4.4 lb)
- Sound Level: 87 dB(A)
- Rated Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-814LSB
- Heavy-Productive Assembly Lines: Widely utilized in high-volume motor-vehicle manufacturing plants.
- Bike & Motor Production: Ideal for fastening nuts and bolts in tight engine bays and bike frames.
- Industrial Equipment Maintenance: Practical for routine servicing of machinery with restricted spatial access.
