/ Onpin Air Ratchet Wrench OP-806LS EN ISO 11148-6 - Hex 6mm 1/4", 250rpm, 10Nm
Onpin Air Ratchet Wrench OP-806LS EN ISO 11148-6 - Hex 6mm 1/4", 250rpm, 10Nm
The Onpin OP-806LS Air Ratchet Wrench is a specialized pneumatic tool designed to easily fasten or remove bolts and nuts in narrow spaces unreachable by conventional air tools. Operating at an air pressure of 90 psi (6.2 bar), it delivers a working/maximum torque of 10 Nm (7 ft-lb) and a free speed of 250 rpm with Hex size options of 6mm and 1/4". Featuring an overall length of 282 mm, a net weight of 1.26 kg, and 127 l/min air consumption, it fully complies with EN ISO 11148-6:2012 standards for heavy-productive assembly lines in motor-vehicle, bike, and motor industries.
- OP-806LS
- 806LS
- OP-806
- OP-806 Series
- onpin op-806ls air ratchet wrench
- pneumatic ratchet wrench narrow space
- 250rpm air ratchet wrench 10nm
- hex 6mm 1/4 inch air ratchet
- heavy assembly line pneumatic tool
Design file download links:
PDF fileDescription

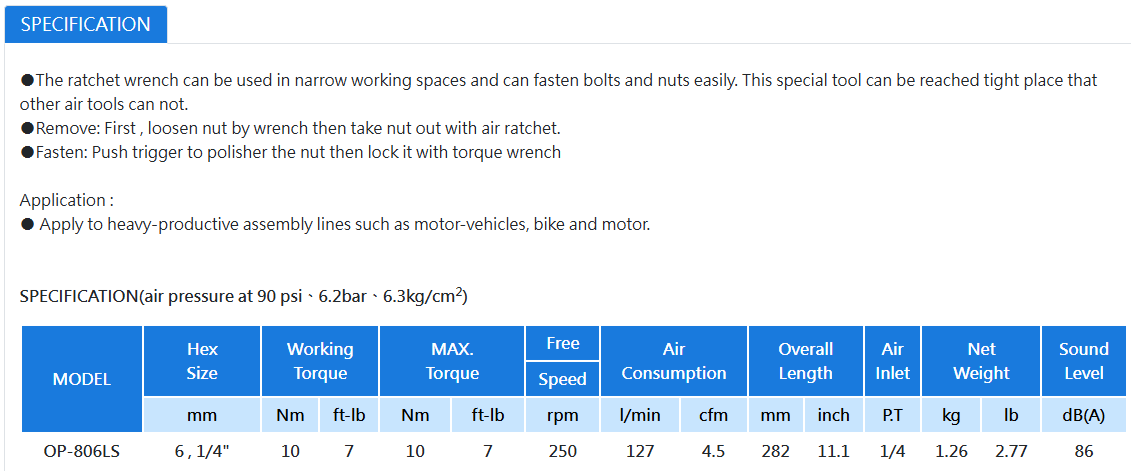

Specification OP-806LS
The Onpin OP-806LS Air Ratchet Wrench is a handheld pneumatic fastening tool operating at a rated pressure of 90 psi (6.2 bar / 6.3 kg/cm²) via a 1/4 P.T air inlet. Manufactured by Hong Bing Pneumatic Industry Co., Ltd., it converts compressed air into a free speed of 250 rpm and a maximum torque of 10 Nm (7 ft-lb), engineered specifically to easily fasten bolts and nuts in narrow spaces where other air tools cannot reach. The equipment strictly complies with European safety standards EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC.
Key Features of Onpin OP-806LS
- Narrow Space Accessibility: Designed for tight working environments to reach restricted areas and easily fasten or loosen nuts and bolts.
- Structured Removal & Fastening Method: Allows loosening nuts with a manual wrench before spinning out with the air ratchet, and positioning nuts via air trigger before final lock-down with a torque wrench.
- Consistent Torque Output: Delivers an identical Working Torque and MAX. Torque of 10 Nm (7 ft-lb) for steady operations.
- High-Speed Operation: Offers a free speed of 250 rpm to accelerate assembly tasks.
- European Safety Compliance: Fully certified under EC Declaration of Conformity with Machinery Directive 2006/42/EC and EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-806LS
- Model: OP-806LS (Table code: 806LS)
- Hex Size: 6 mm, 1/4"
- Working Torque: 10 Nm (7 ft-lb)
- MAX. Torque: 10 Nm (7 ft-lb)
- Free Speed: 250 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 282 mm (11.1 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.26 kg (2.77 lb)
- Sound Level: 86 dB(A)
- Rated Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-806LS
- Heavy-Productive Assembly Lines: Specialized for motor-vehicle manufacturing plants requiring continuous high-efficiency fastening.
- Bike & Motor Manufacturing: Ideal for installing bolts and nuts in compact motorcycle and bicycle sub-assemblies.
- Industrial Machinery Maintenance: Essential for servicing narrow structural components across manufacturing facilities.
